Technical parameters

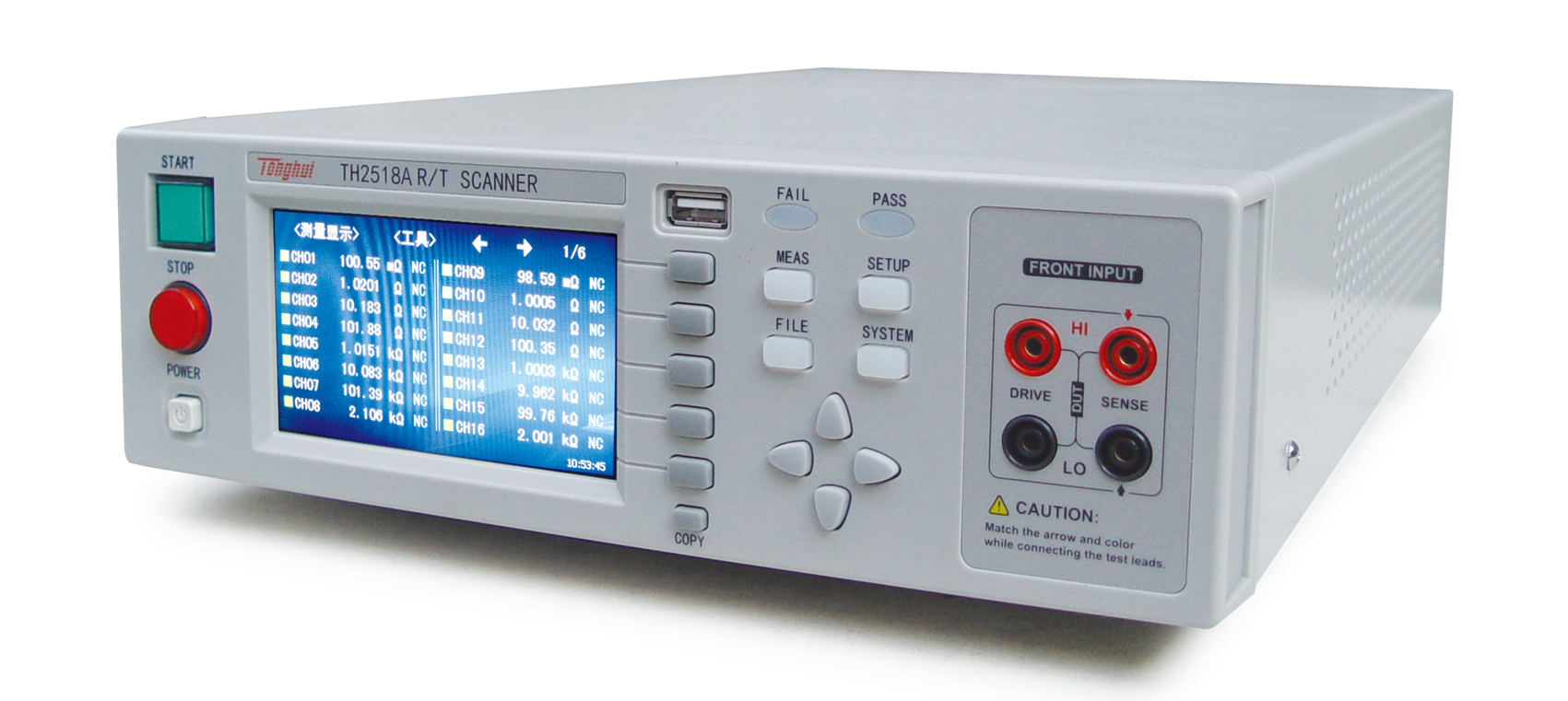

Type number TH2518A Measurement parameters Dc resistance Resistance test range 10uΩ-200kΩ Resistance basic test accuracy 0.05% Resistance range Automatic and manual (200mΩ,2Ω,20Ω,200Ω,2kΩ,20 Kω,200 Kω) Measurement mode Single machine, scan Test parameters of each channel Resistance Number of scanning channels 15 way/card, up to 6 cards and 90 cards can be inserted, the channel in the card for scanning test, between the test cards for synchronous test Test channel test side selection Arbitrary configuration between channels (programmable) Test the current ≤100mA The board measures the speed 100 times per second,40 times per second,2 times per second 6 te equivalent test speed 600 times per second,240 times per second,12 times per second The monitor Real color 4.3 "LCD disy Show the result At the same time disy 16 test results, support page Short circuit clear 0 correction All channels support full range short-circuit zero - clearing Comparator Comparison boundary -- is set separately for each test channel Limiting mode ABSDev、ABS、% Trigger mode Automatic trigger, manual trigger, bus trigger,Handler trigger, foot switch trigger Interface LAN,USB DEVICE,USB HOST,RS232C,Handler, pedal switch Test end Four-terminal test Power requirements Voltage: 90-125V,190-250V Frequency: 50Hz,60Hz Power: Maximum 30VA Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Four-terminal test电缆 | TH26050S |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
| Resistance扫描盒 | TH26056 |
|
|
|
|
| TH2518 HandlerInterface转接板 | TH2518-01 |
|
|
|
|
