Technical parameters
Model number

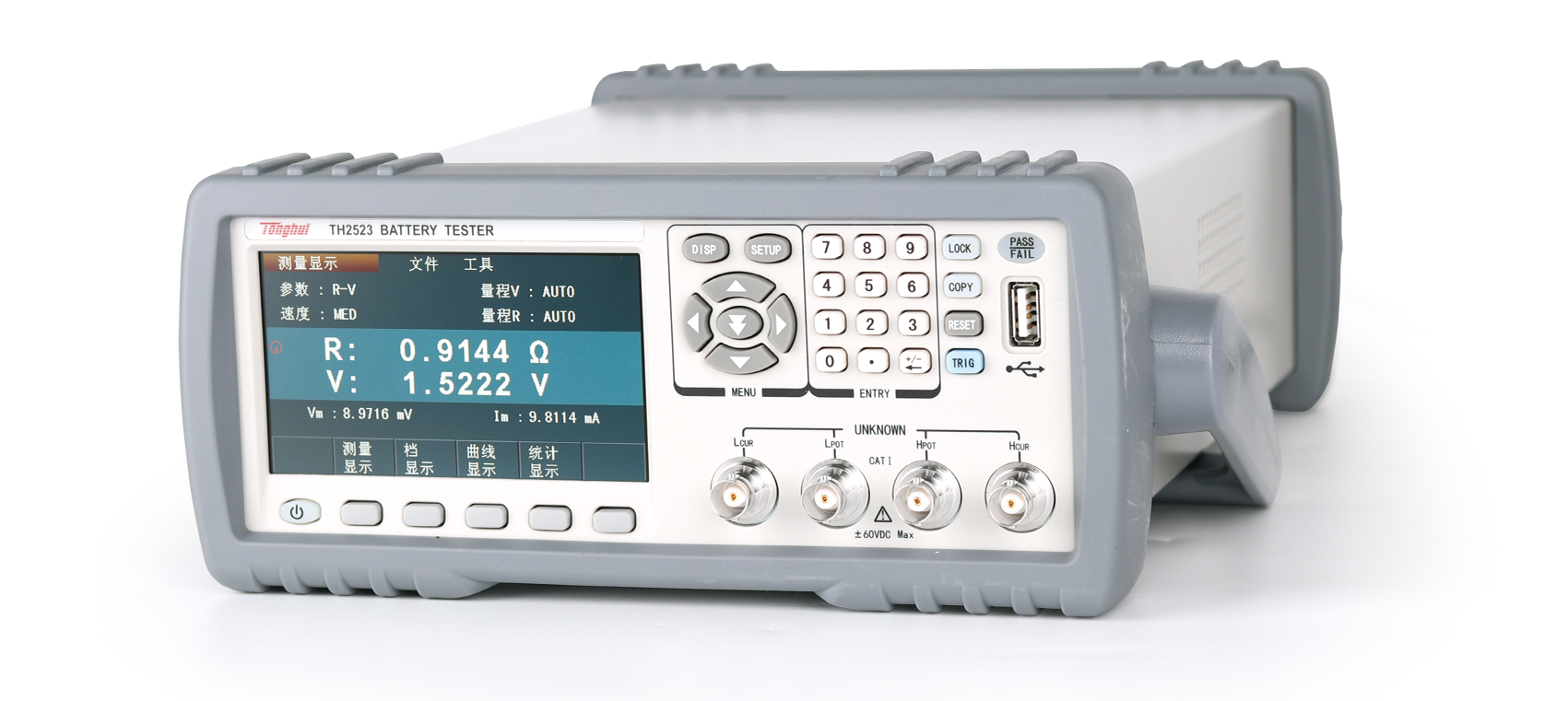

TH2523
TH2523A
Show
Show器
4.3 英寸480x272 24位色TFTShow器
Show位数
R: 慢速5位,Show数字
35000 ;快速,Show数字3500
V: 慢速5位,Show数字35000;快速,Show数字3500
Measurement parameters
R,V,R-V,Z- θ°,Z-θr, L-Q,L-R,R-X,R-Q
基本准确度
R:0.1% ,V:0.05%
Test signal source
Frequency
1kHz ±0.2Hz sine wave
Constant current
100mA/10mA/1mA/100uA/10uA
测量Show范围
Resistance R/ impedance Z/ reactance X
1u Ω—3.5kΩ
Dc voltage V
100uV —65V
100uV —350V
Inductance L
0.2nH-1H
Quality factor Q
0.001 —9999.9
Phase Angle θd(deg)
-179.99 —179.99
Phase Angle θd(rad)
-3.1416 —3.1416
Mathematical operation
Direct reading,ΔABS, Δpercent
The range of
Ac resistance R
30m Ω/300mΩ/3Ω/30Ω/300Ω/3kΩ
Dc voltage V
6V/60V
30V/300V
Maximum input voltage
65V
350V
Test speed (times/second)
FAST : about 50 times/second;
MED : about 10 times/second;
SLOW1 : about 5 times/second;
SLOW2 : About 3 times/second
Comparator
10 File, through file sorting to determine the product grade and ringing function
The range of方式
Automatic, keep
Trigger mode
Internal, manual, external, Bus
Mode of operation
Test line contact fault check; Current/voltage monitoring of the measured part; REL deviation deduction; Short circuit clear "0";
1-255 Subaverage; Measurement delay setting; Graphic analysis and scanning of the tested parts; USB storage function; How big 100 groups of Settings file storage/loading; Statistical function of up to 30000 test data etc.

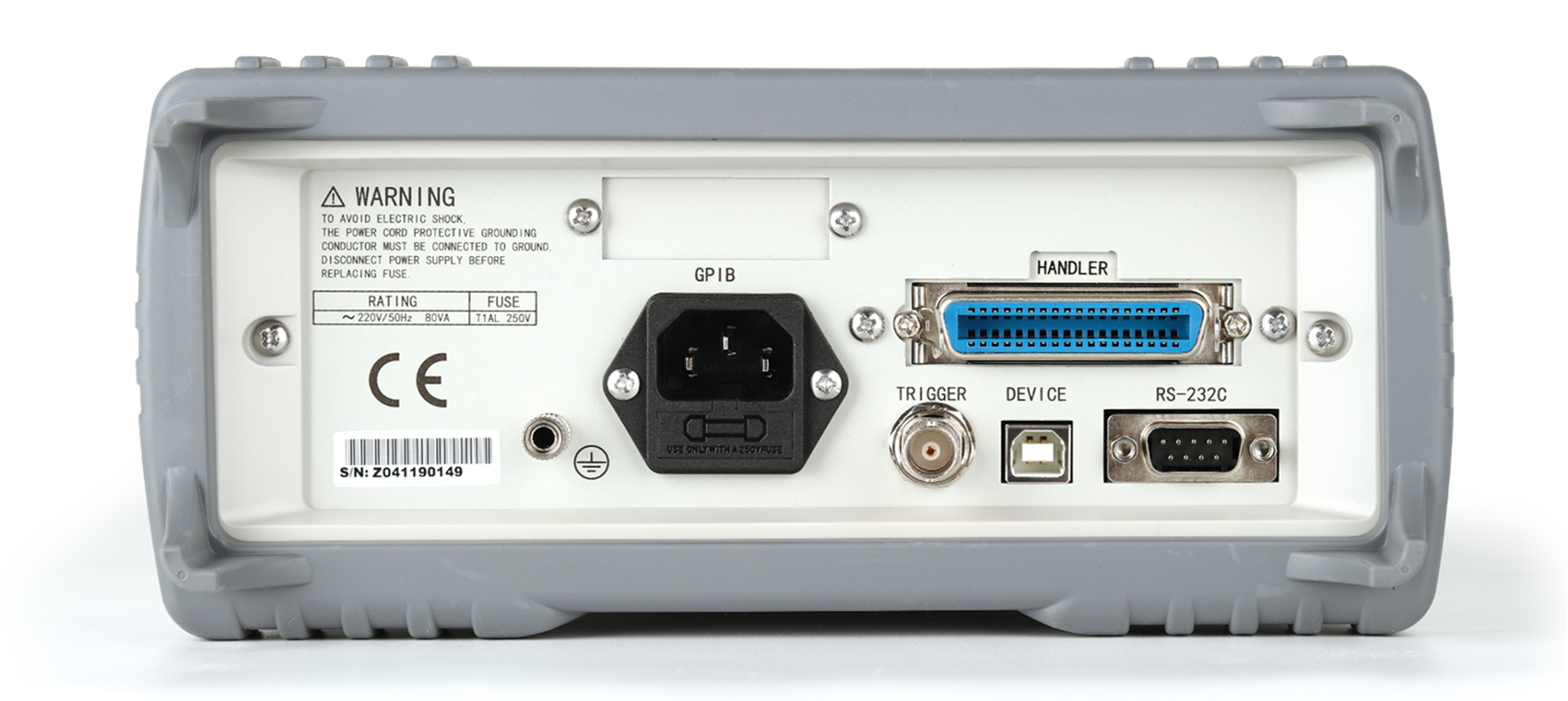

Interface
Handler RS232,USB DEVICE,GPIB (optional),USB HOST
通用Technical parameters
The working environment
Temperature
0 ℃-40℃
Humidity
≤90%RH
Power requirements
Voltage
100V-120V , 198V-242V
Frequency
47Hz - 63Hz
Power consumption
Max. 15AV
Shelf volume (mm)
215(W) ×87(H)×335(D)
External volume (mm)
235(W) ×105(H)×360(D)
The weight of
About 3.6k
