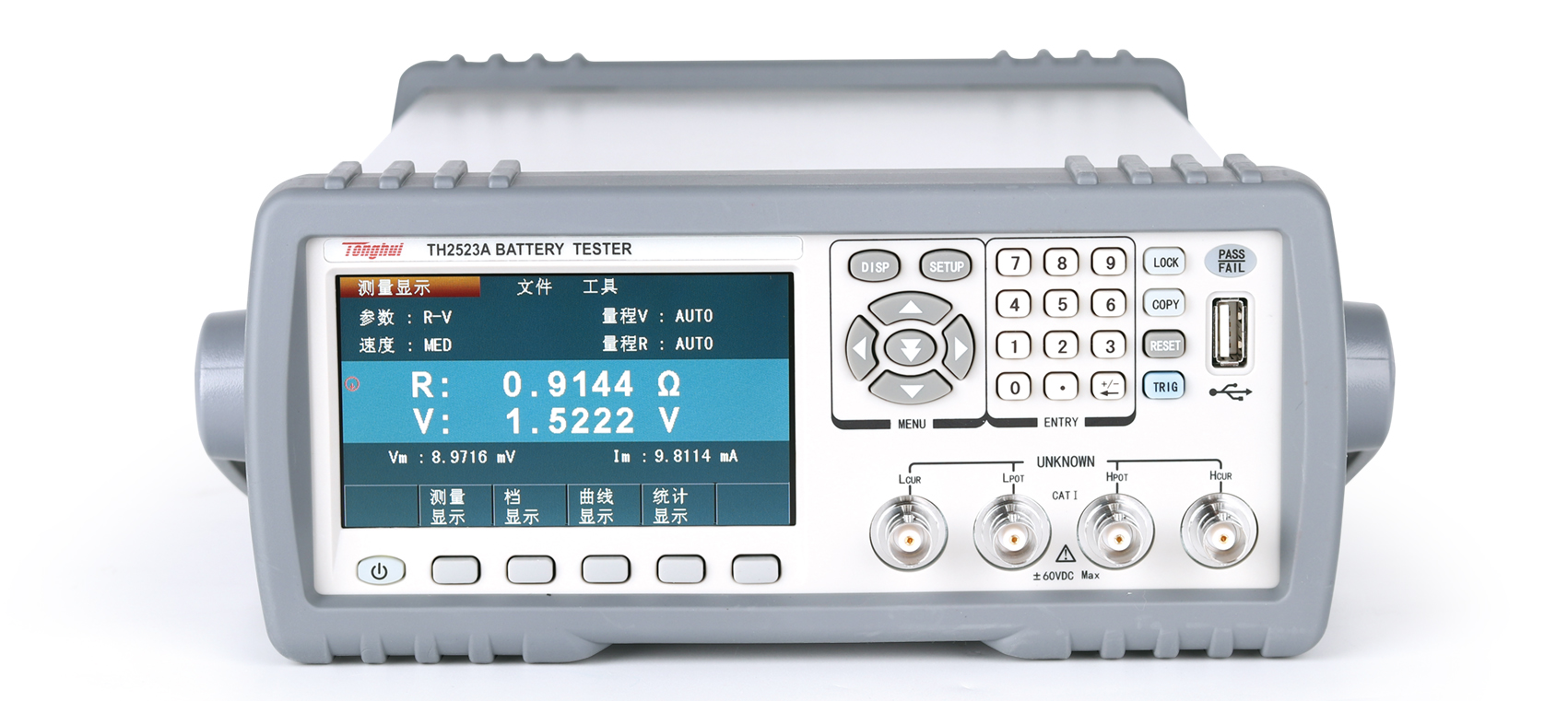

Show

Show器

4.3 英寸480x272 24位色TFTShow器

Show位数

R: 慢速5位,Show数字

35000 ;快速,Show数字3500

V: 慢速5位,Show数字35000;快速,Show数字3500

Measurement parameters

R,V,R-V,Z- θ°,Z-θr, L-Q,L-R,R-X,R-Q

Basic accuracy

R:0.1% ,V:0.05%

Test signal source

Frequency

1kHz ±0.2Hz sine wave

Constant current

100mA/10mA/1mA/100uA/10uA

测量Show范围

Resistance R/ impedance Z/ reactance X

1u Ω—3.5kΩ

Dc voltage V

100uV —65V

100uV —350V

Inductance L

0.2nH-1H

Quality factor Q

0.001 —9999.9

Phase Angle θd(deg)

-179.99 —179.99

Phase Angle θd(rad)

-3.1416 —3.1416

Mathematical operation

Direct reading,ΔABS, Δpercent

The range of

Ac resistance R

30m Ω/300mΩ/3Ω/30Ω/300Ω/3kΩ

Dc voltage V

6V/60V

30V/300V

Maximum input voltage

65V

350V

Test speed (times/second)

FAST : about 50 times/second;

MED : about 10 times/second;

SLOW1 : about 5 times/second;

SLOW2 : About 3 times/second

Comparator

10 File, through file sorting to determine the product grade and ringing function

The range of方式

Automatic, keep

Trigger mode

Internal, manual, external, Bus

Mode of operation

Test line contact fault check; Current/voltage monitoring of the measured part; REL deviation deduction; Short circuit clear "0";

1-255 Subaverage; Measurement delay setting; Graphic analysis and scanning of the tested parts; USB storage function; How big 100 groups of Settings file storage/loading; Statistical function of up to 30000 test data etc.

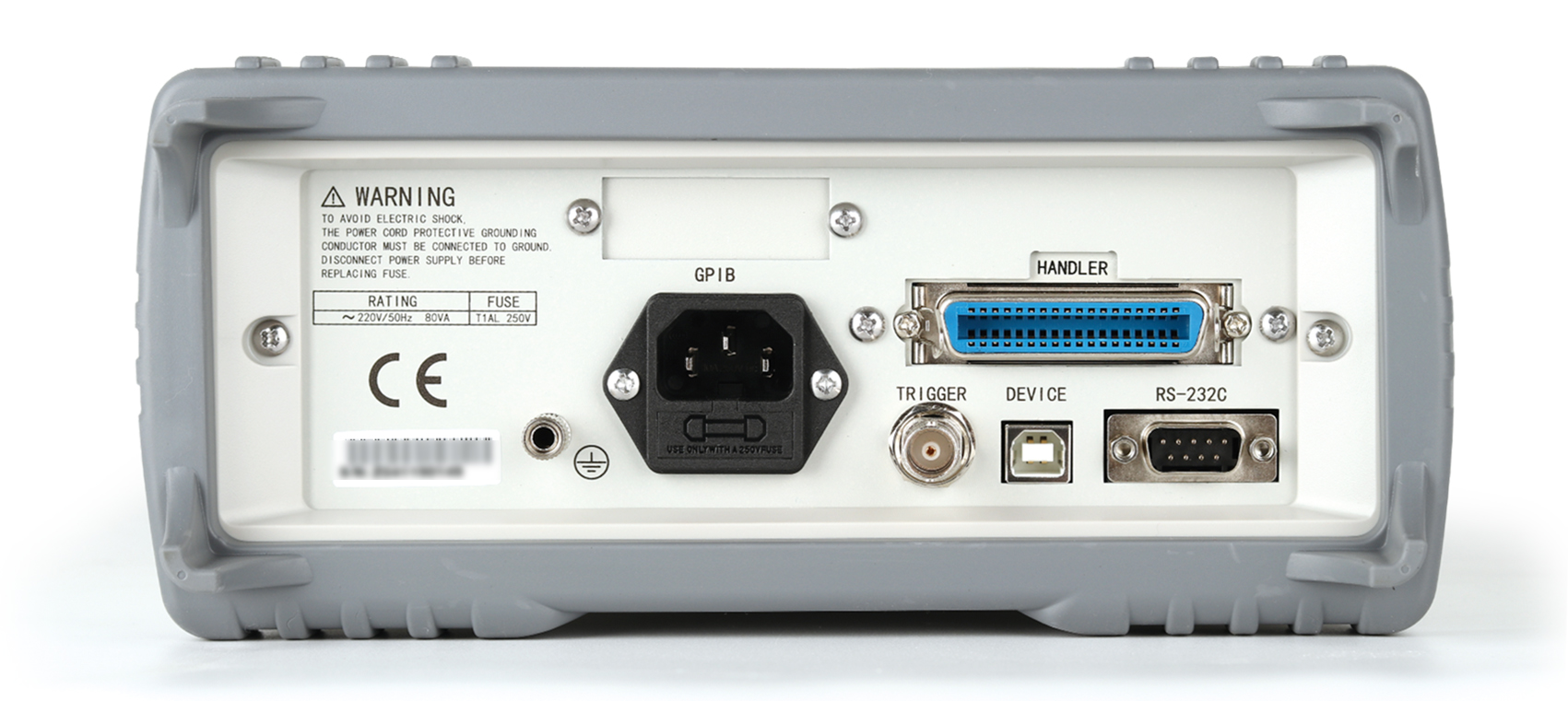

Interface

Handler RS232,USB DEVICE,GPIB (optional),USB HOST

通用Technical parameters

The working environment

Temperature

0 ℃-40℃

Humidity

≤90%RH

Power requirements

Voltage

100V-120V , 198V-242V

Frequency

47Hz - 63Hz

Power consumption

Max. 15AV

Shelf volume (mm)

215(W) ×87(H)×335(D)

External volume (mm)

235(W) ×105(H)×360(D)

The weight of

About 3.6k
