Technical parameters
Model number

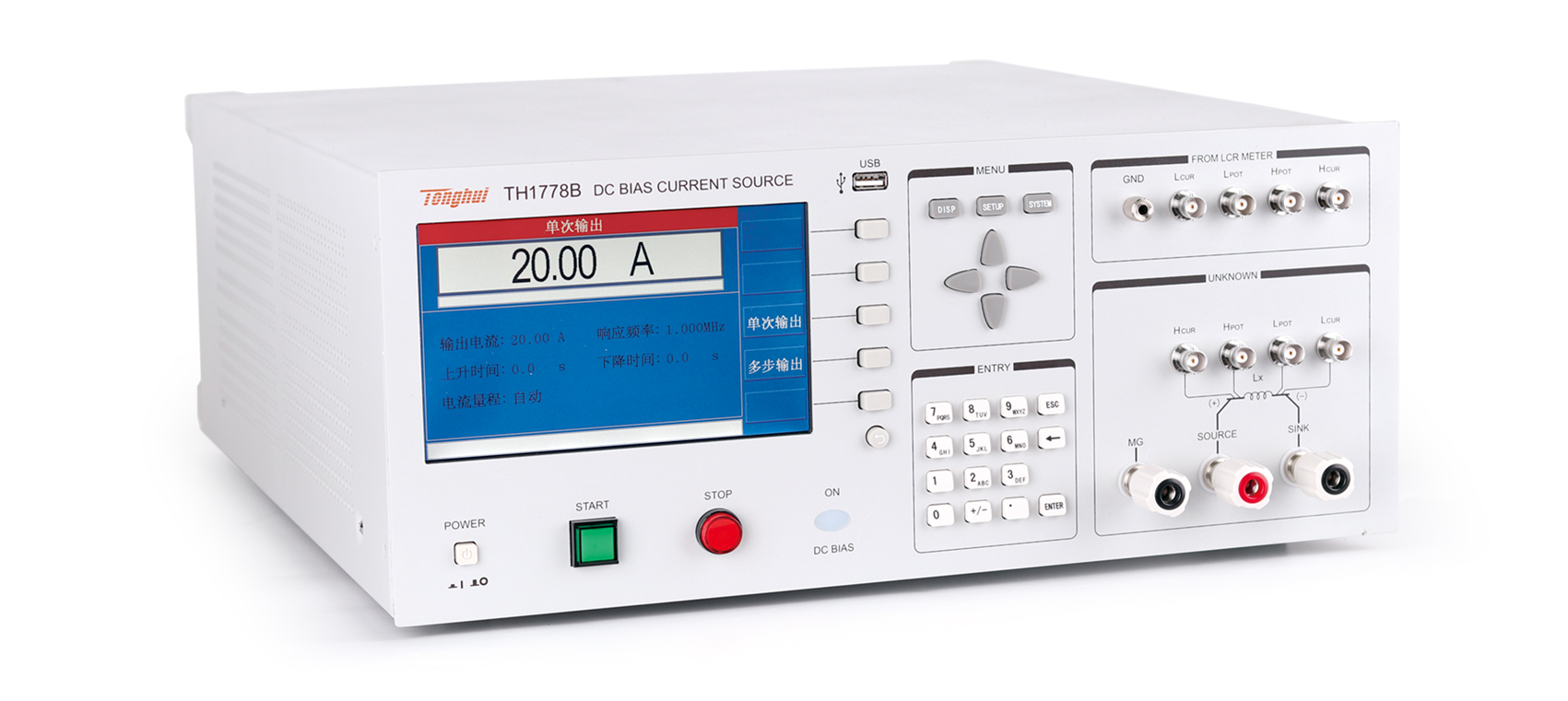

TH1778B
Show
7 Inch 800 ×600 RGBTFTLCD Screen
Operation
Physical key foot control switch
Support measurement frequency
0Hz-2MHz
Current range
0- 20A (Stack is not supported)
Current
The range of
0mA-1.000A
1.000A-5.000A
Step by step
5mA
25mA
Scan adjustment time
4ms-3600s
10ms-3600s
扫描调整小Step by step
5mA
25mA
The range of
1.000A/5.000A/20.0A
Maximum output voltage
10V （此电压为输出1.000A时的电压,不同The range of请参照用户手册）
Maximum allowable DC resistance
Rma x=V ma x/I ( Ω) (Please refer to the user manual for calculation of Rmax)
Maximum allowable inductance
Lma x=V ma x/(di/dt) (mH) (Please refer to the user manual for the calculation of Lmax)
The range of方式
Automatic
Start and stop control mode
START/STOP Physical keys,4 kinds of foot control, bus
连续加载Current时间
Conservative 2-3h, uninterrupted output
Function
仪器故障自检;99组自定义文件管理;双进度条指示;中英双语;从机软开关;实时Operation;SC P I Instruction set; Simple double disy calculator, etc
LCR Connection capability
Can be controlled TH2829 TH2827 / TH2832 TH2838 / TH2839

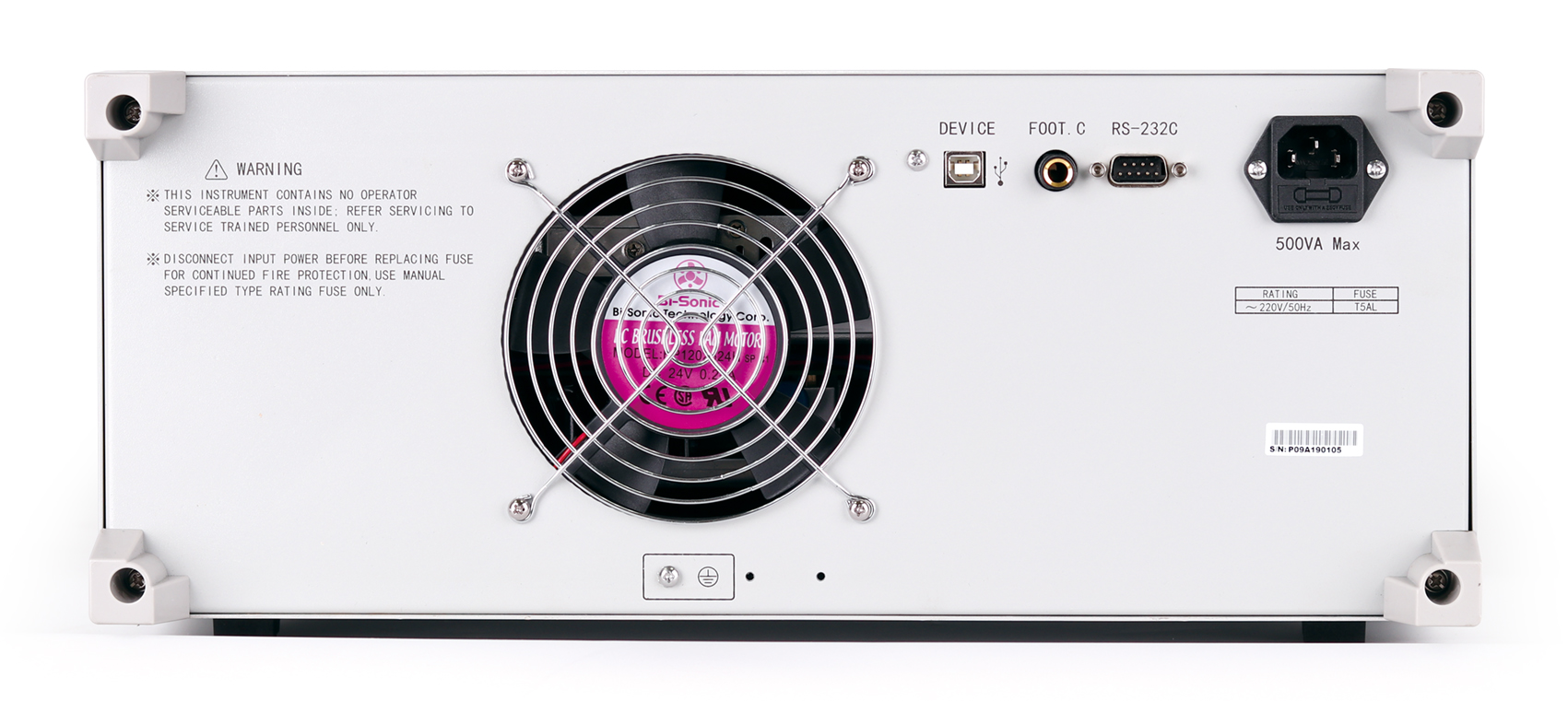

Interface
RS232 、SlaverLink
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Test connection box | TH26004E-2 |
|
|
|
|
| Test fixture | TH1778-01 |
|
|
|
|
| RS232 connection cable (with TH10101) (two holes,2 and 3 pins crossed)(2H/DB-9F 2/L 1400) | TH26034 |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
