Technical parameters
The monitor
High brightness full symbol VFD The monitor
Test parameters
Dc voltage, AC voltage, DC current, AC current, two-wire resistance, four-wire resistance, Frequency, period, on-off, diode
Mathematical function
% 、 dB 、 dBm 、 REL 、 mX+b
General function
The range of
Trigger mode
The reading holds
Limit measurement
Delay time
Settings save
Automatic, manual
INT/MAN/BUS/EXIT
There is
H I 、 L o And I N （ PASS ), with a ring
0 ～ 6000ms
10 Group
Reading rate
(Reading / Seconds)
Test the speed
Fast
Medium speed
Slow speed

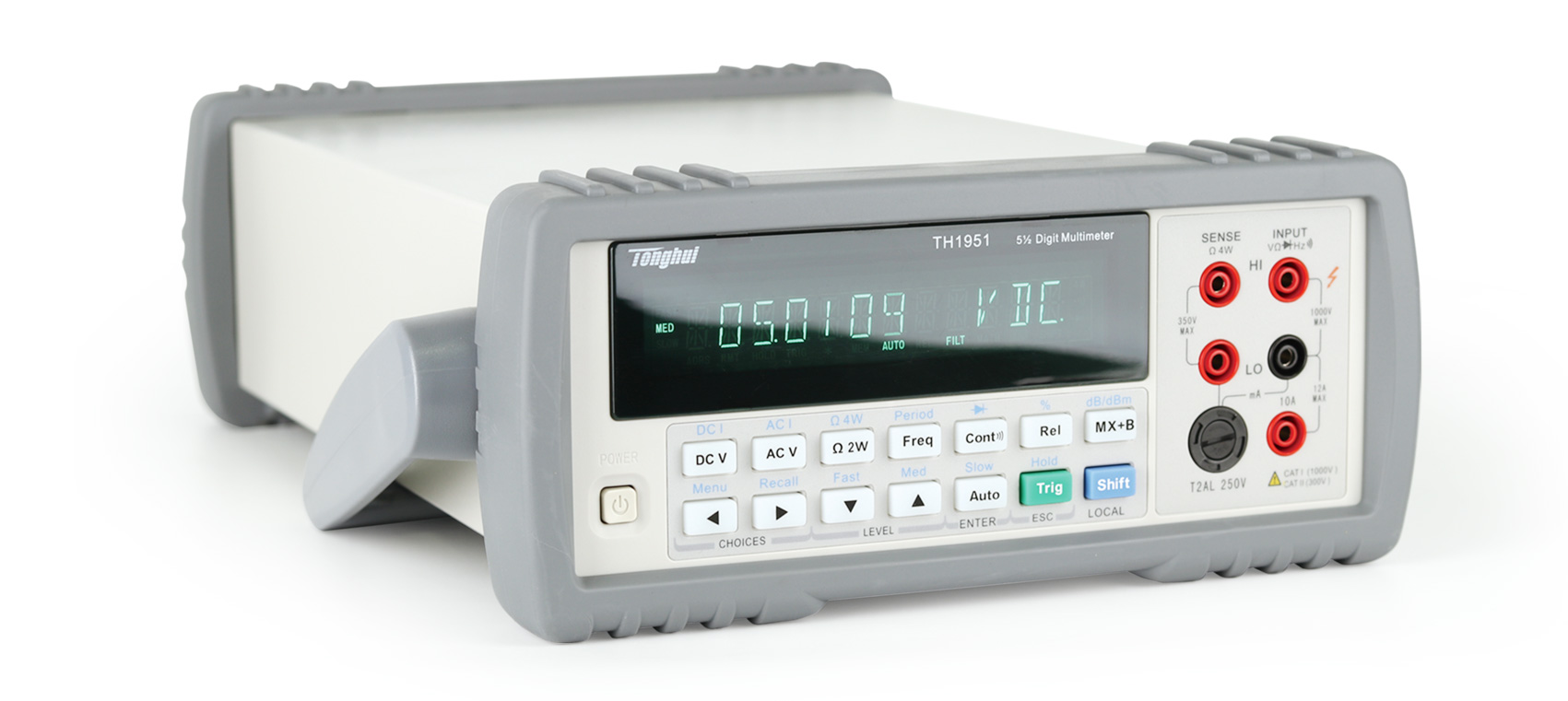

TH1951
Full degree reading ( The word )
11 , 999
119 , 999
119 , 999
DCV/DCI
57
16
4
ACV/ACI
25
4
3
Ω -2W
57
16
4
Performance parameters Expression of uncertainty: ± (Reading的 %+ Full scale % ）
Parameter
The range of / Test range
Minimum resolution
Maximum uncertainty ( 1 Years)
Model number
TH1951
TH1951
TH1951
Dc voltage (DCV)
100mV-1000V
1 μ V
0.010%+0.004%
Direct current (DCI)
10mA-10A
100nA
0.050%+0.004%
Ac voltage (ACV ）
100mV-750V
1 μ V
Bandwidth
10Hz-100kHz
0.10%+0.10%
Ac current (--) ACI ）
10mA -10A
100nA
Bandwidth
10Hz-10kHz
0.25%+0.08%
Resistance
（ Ω 2W/ Ω 4W ）
100 Ω -100M Ω
1m Ω
Current
0.7 μ A-1mA
0.030%+0.004%
Frequency
5Hz-1.1MHz
10 μ Hz
Voltage sensitivity
40mV
0.005%+0.002%
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Multimeter test cable | TH26036(JC-BBA03601) |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
| TH1951/61 four terminal test wire | TH26039 |
|
|
|
|
