The number of units

8 Path independent unit

4 Path independent unit

耐压测试

Output voltage

Current test range

AC

0.10kV - 5.00kV ± 2%

DC

0.10kV - 6.00kV ± 2%

AC

0mA - 10.00mA ± （ 2% The reading +5 (a word)

DC

0 μ A - 5.00mA ± （ 2% The reading +5 (a word)

Fast discharge function

Automatic discharge (--) after the test DCW ）

Insulation resistance test

Output voltage

0.10kV - 1.00kV ± 2%

Resistance test range

0.1M Ω - 10.0G Ω

Resistance test accuracy

0.10M Ω - 999M Ω The range of ± 10%+2 A word

1.00G Ω - 10.0G Ω The range of ± 20%+2 A word

Discharge function

Automatic discharge after the test

Arc detection

Measuring range

Corresponding current

1mA - 20mA

The general parameter

Voltage rise time

0.1s - 999.9s

Test time setting (AC/DC)

0.2s - 999.9s

Voltage drop time

0.1s - 999.9s

Wait time (IR)

0.2s - 999.9s

Time accuracy

± (1%+0.1s)

Memory

storable 100 Number of test files, each file at most 20 A test step

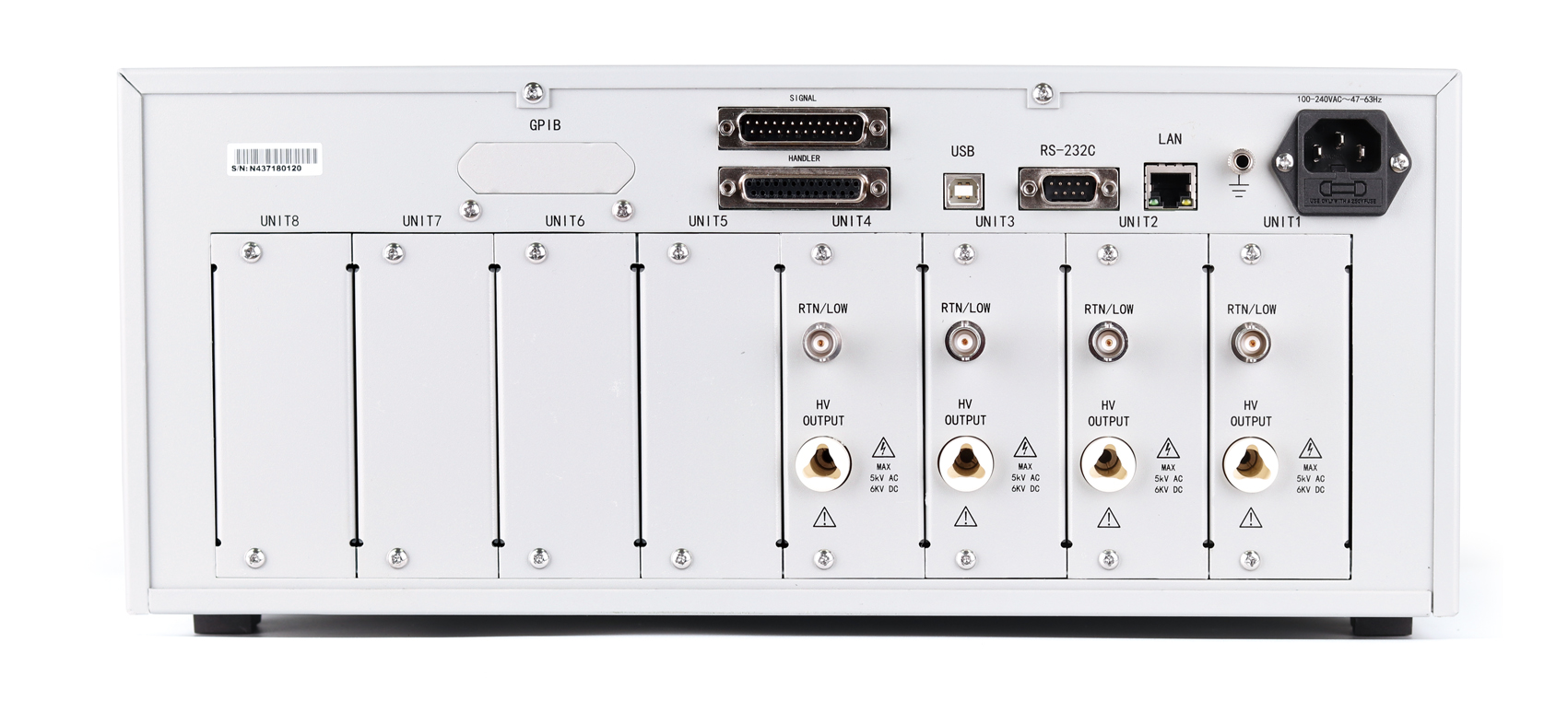

Interface

Standard configuration

HANDLER , RS232 , USB DRV , USB HOST
