Technical parameters

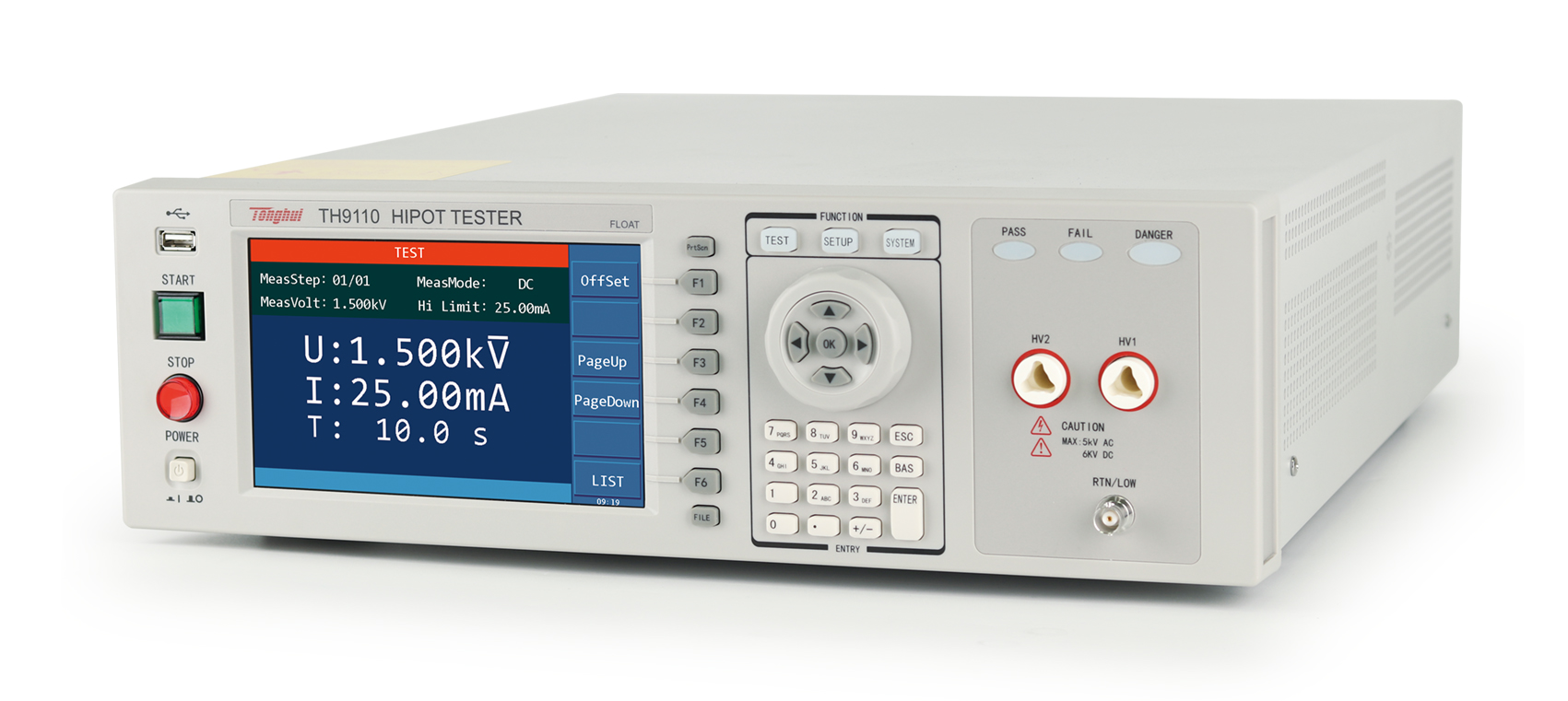

Model number
TH9110
TH9110A
耐压测试
Output voltage
AC
Voltage range
0.05 ~ 5.0kV
Voltage waveform
50/60Hz ±0.1% Sine wave
Output power
500VA （ 5.0kV 100mA ）
DC
Voltage range
0.05 ~ 6.0kV
Output power
150VA （ 6.0kV 25mA ）
Load variation rate
± （ 1% Set point + 0.2% Full scale) (Rated power)
Voltage accuracy
1% Set point + 0.1% Full scale
Voltage resolution
2V
Current test range
AC
Current range
0.001mA-120mA (Voltage ≤4kV ） 0.001mA-100mA (Voltage >4kV ）
Current resolution
0.001mA
Current accuracy
± （ 1% Read the value + 0.5% Full scale)
DC
Current range
0.0001mA-25mA (Voltage ≥1.5kV ） 0.0001mA-20mA (Voltage＜ 1.5kV ）
Current resolution
0.1uA
Current accuracy
± （ 1% Read the value + 0.5% Full scale)
Maximum short-circuit current
200mA ( Ac test only )
Fast discharge function
Automatic discharge (--) after the test DCW ）
Insulation resistance test
Output voltage
DC : 0.05 ~ 5.0kV
Voltage resolution
2V
Voltage accuracy
1% of Set point + 0.1% Full scale
Resistance test range
1MΩ-50.0GΩ
Resistance resolution
0.1M Ω
Resistance test accuracy
Voltage >1000V
1MΩ ~ 1GΩ : ± (3% + 0.1% Full scale )
1GΩ ~ 10GΩ : ± (7% + 2% Full scale )
10GΩ ~ 50GΩ : ± (10% + 1% Full scale
Voltage≧ 500V , ≦ 1kV
0.1MΩ ~ 1GΩ : ± (3% + 0.1% Full scale )
1GΩ ~ 10GΩ : ± (7% + 2% Full scale )
10GΩ ~ 50GΩ : ± (10% + 1% Full scale )
Voltage <500V
0.1MΩ ~ 1GΩ : ± (3% + (0.2*500/Vs)% The range of )
Fast discharge function
Automatic discharge after the test
Arc detection
Program setting
AC
1mA - 20mA
DC
1mA - 10mA
OSC Open short circuit detection
Sampling standard capacitance range
0.001 ～ 40nF
Open circuit judgment range
10% ～
Short-circuit judgment range
～ 500%
Time setting
Test time
0.3 ～ 999s , 0 Denotes continuous testing
Rise time
0.1 ～ 999s , 0 Indicates close
Decline time
0.1 ～ 999s , 0 Indicates close
Wait time
0.1 ～ 999s , 0 Indicates close (DC voltage only)
Safety protection function
High voltage floating output
Test mode
ACW 、 DCW 、 IR
----------
Leakage current
＜ 3.5mA ac/dc
Electric shock protection
0.5mA ±0.25mA Optional : Turn on or off
Enable protection Interlock
Pin connection low, to allow high - voltage output
Panel operation protection
Keylock, password
Alarm instruction
Qualified : Short sound , Green light ; Defective goods : Long sound , Red light
Storage and interface
Internal memory
storable 100 A file, each file can be edited 50 A step

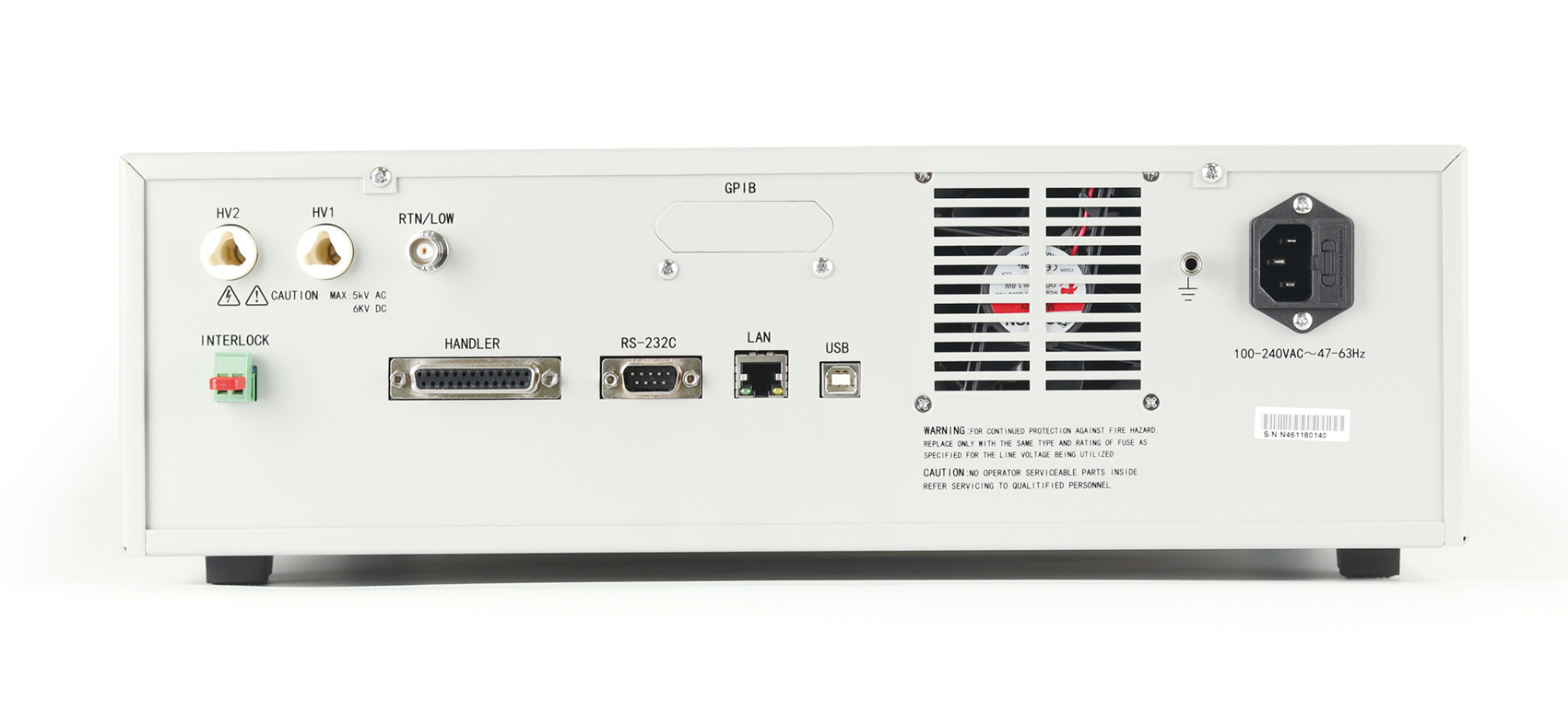

Standard interface
RS232 、 USB DEVICE 、 USB HOST 、 LAN 、 HANDLER
Optional interface
GPIB
Ambient temperature and humidity
Parameter comparison temperature
18 ℃～ 28 ℃, humidity : 30% ～ 70%RH
Normal operating temperature
0 ℃～ 45 ℃, humidity : 20% ～ 90%RH
Storage ambient temperature
-10 ℃～ 55 ℃, humidity :<80%RH
General index
Power supply
100V ～ 240VAC , 47Hz ～ 63Hz
Power
No load :<100W 额定Power :1000W
Size
430mm （ W ） x132mm （ H ） x500mm （ D ）
The weight of
21Kg
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| High voltage test cable | TH90018 |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
