Technical parameters
Type The name
TH9310/20
TH9310B
耐压测试
Output voltage
AC
0.05kV - 5.00kV ± 2%
DC
0.05kV - 6.00kV ± 2%
------
Current test range
AC
TH9310/B ： 0mA - 10.00mA ± （ 2% The reading +5 (a word)
TH9320 ： 0mA - 20.00mA ± （ 2% The reading +5 (a word)
DC
TH9310 ： 0 μ A - 5.00mA ± （ 2% The reading +5 (a word)
TH9320 ： 0 μ A - 10.00mA ± （ 2% The reading +5 (a word)
------
Fast discharge function
Automatic discharge (--) after the test DCW ）
------
Insulation resistance test
Output voltage
0.10kV - 1.00kV ± 2%
------
Resistance test range
0.1M Ω - 10.0G Ω
------
Resistance test accuracy
0.10M Ω - 999M Ω The range of ± 10% +2 A word
1.00G Ω - 10.0G Ω The range of ± 20% +2 A word
------
Discharge function
Automatic discharge after the test
------
Arc detection
Measuring range
Corresponding current
1mA - 20mA
The general parameter
Voltage rise time
0.1s - 999.9s
Test time setting (AC/DC)
0.2s - 999.9s
Voltage drop time
0.1s - 999.9s
Wait time (IR)
0.2s - 999.9s
------
Memory
Memory
20
A test file, each file can store
20
A test step

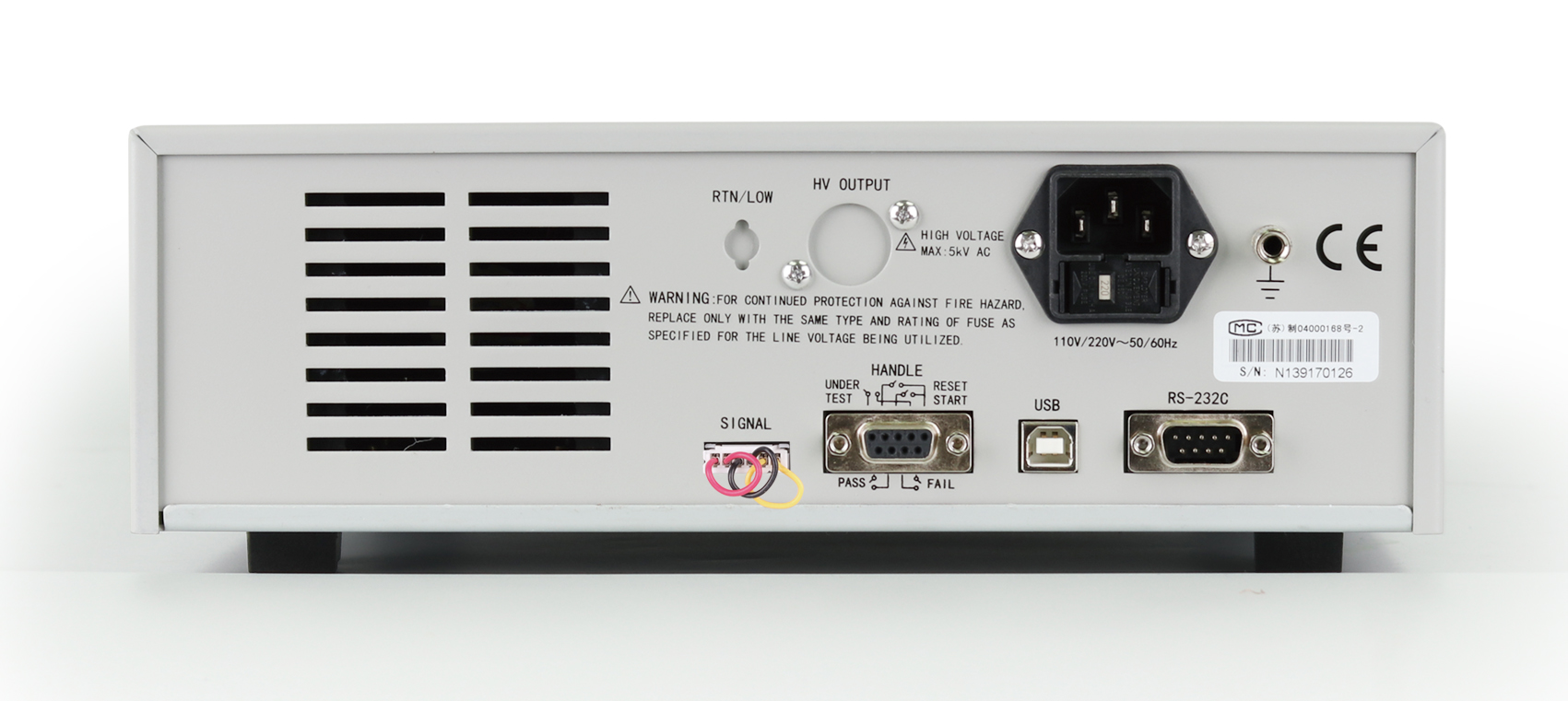

Interface
Standard configuration
HANDLER , RS232 , USB DEVICE （电脑Interface）, USB HOST( 优盘Interface )
Attachment
| Standard configuration | |||||
| Part name | TypeThe name |
|
|
|
|
| High voltage test cable (red) | TH90003R |
|
|
|
|
| High voltage test line | TH90003D |
|
|
|
|
| Optional | |||||
| Part name | TypeThe name |
|
|
|
|
