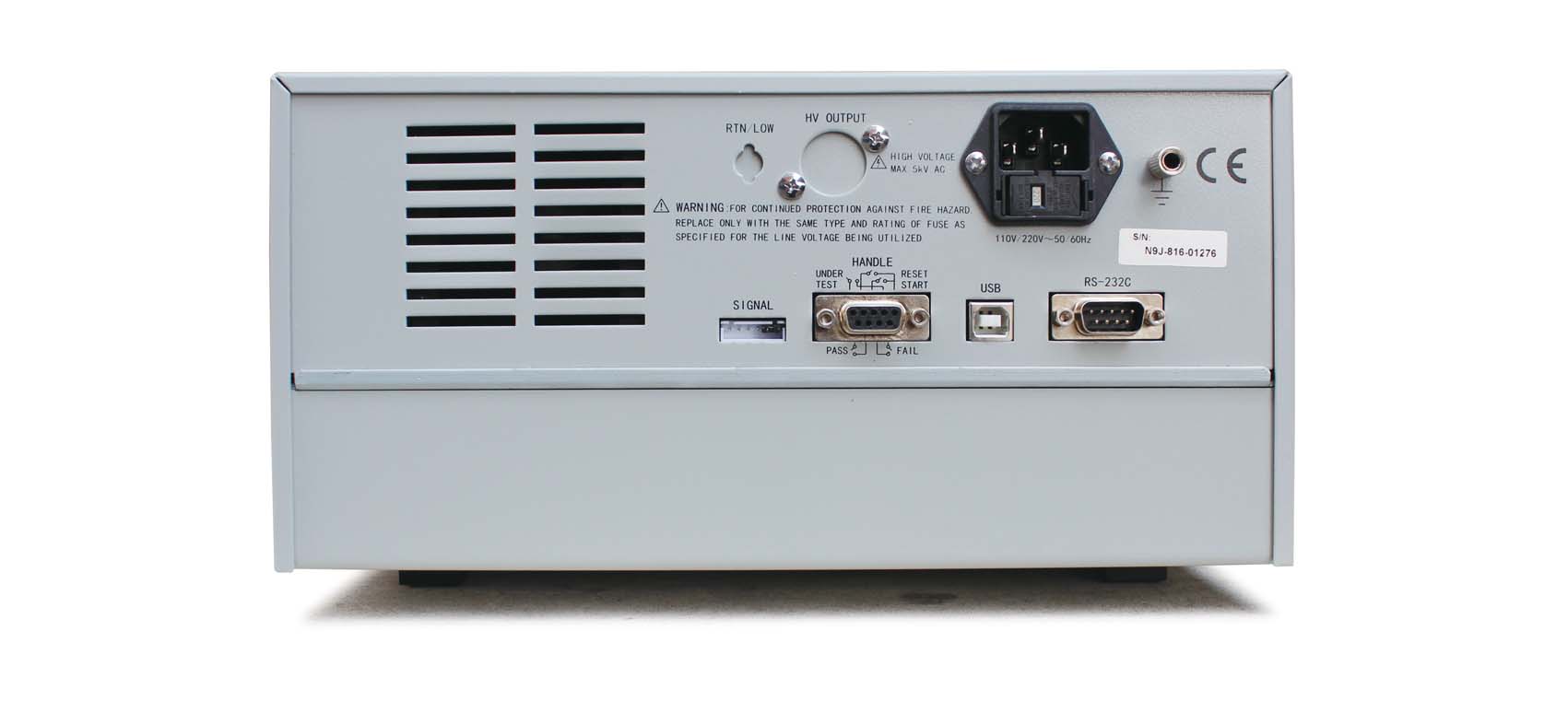

Technical parameters
Model number
TH9320-S4A
TH9320-S8A
Scanning interface
4 The road
8 The road
耐压测试
Output voltage
AC
0.05kV - 5.00kV ± 2%
DC
0.05kV - 6.00kV ± 2%
Current test range
AC
TH9320 ： 0 - 20.00mA ± （ 2% The reading +5 (a word)
DC
TH9320 ： 0 - 10.00mA ± （ 2% The reading +5 (a word)
Fast discharge function
Automatic discharge (--) after the test DCW ）
Insulation resistance test
Output voltage
0.10kV - 1.00kV ± 2%
Resistance test range
0.1M Ω - 10.0G Ω
Resistance test accuracy
0.10M Ω - 999M Ω The range of ± 10% +2 A word
1.00G Ω - 10.0G Ω The range of ± 20% +2 A word
Discharge function
Automatic discharge after the test
Arc detection
Measuring range
AC
1 - 9 Grade The factory default value is 5 ）
(Corresponding current 20mA 、 18mA 、 16mA 、 14mA 、 12mA 、 10mA 、 7.7mA 、 5.5mA 、 2.8mA ）
DC
1 - 9 Grade
The general parameter
Voltage rise time
0.1s - 999.9s
Test time setting (AC/DC)
0.2s - 999.9s
Voltage drop time
0.1s - 999.9s
Wait time (IR)
0.2s - 999.9s
Time accuracy
± (1%+0.1s)
Memory
Memory
20 A test file, each file 20 A step
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| High voltage test cable (red) | TH90003R |
|
|
|
|
| High voltage test cable (without clamp) | TH90013 |
|
|
|
|
| High voltage test cable (with clamp) | TH90017 |
|
|
|
|
| High voltage test line | TH90003D |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
