Product Description:

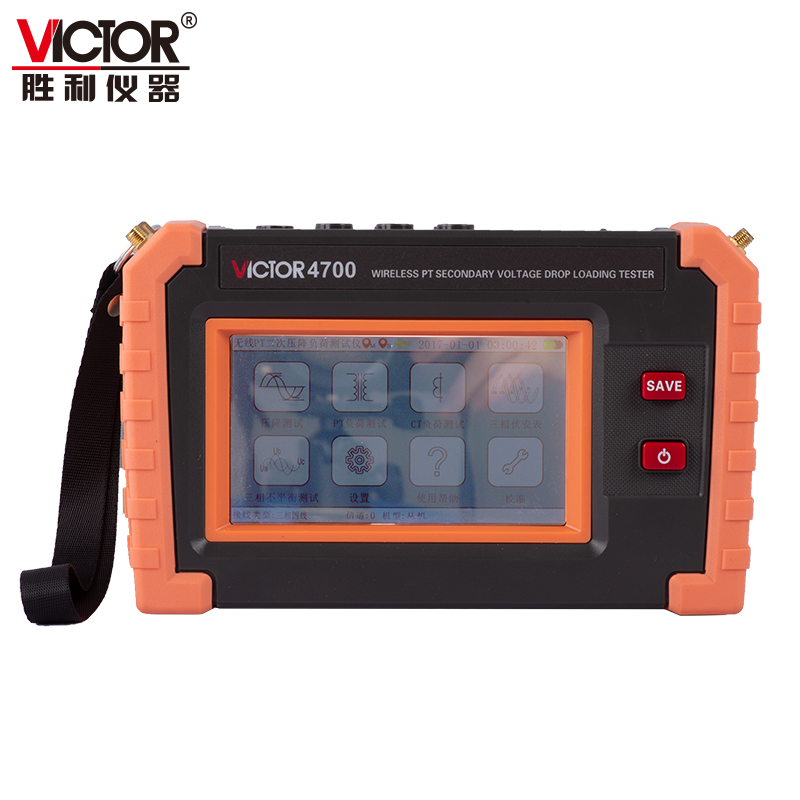

The VICTOR 4700 wireless PT secondary voltage drop load tester is used to measure the secondary voltage drop as well as the voltage, phase and other parameters of the voltage transformer wirelessly. The instrument consists of two handheld measuring terminals, and the single device can be used as a three-phase phase voltammeter and a secondary load tester. Through wireless connection, the two machines can be used as a wireless secondary voltage drop load tester to realize synchronous measurement of voltage and phase between different positions in the substation, and measurement of secondary line voltage drop and error on the PT side. The instrument adopts a special measuring chip, with very high precision electrical parameter measurement, can disy the change of parameters to be measured in real time, and has the function of one-key data saving
Application field:
Is the power system electric energy metering and relay protection professional secondary circuit field detection of a new generation of instruments, also widely used in electrical equipment manufacturing, petrochemical, iron and steel metallurgy, railway electrification, scientific research and teaching departments
Product Features:
1. Use 5 "touch color screen, Chinese interface, easy and fast operation, accurate and reliable;
2. Using large capacity rechargeable lithium battery, with data storage, data access, automatic shutdown,USB data upload and export functions;
3. Measurement personnel only need to connect the operation, the instrument will automatically measure, real-time update data, convenient for field analysis;
4. Adopt complete isolation technology to avoid the occurrence of safety accidents;
5. GPS synchronization technology is adopted to ensure the accuracy of the synchronous measurement of the secondary pressure drop. The pressure drop can be measured without GPS, but the phase, ratio and phase difference will not be disyed
量程与Precision（工作环境：23℃±3℃,HR＜75%,被测导线处于钳口的中心位置）
Type of measurement |
Measuring range |
Precision |
Resolution |
Voltage |
2V～700V |
±0.3%rdg |
0.0001 |
Current |
0.001A-20A |
±0.3%rdg |
0.0001 |
Phase |
0°～360° |
±0.3° |
0.1 |
Frequency |
45Hz～65Hz |
±0.03Hz |
0.0001 |
Active power |
0.002W～7000W |
±0.3%rdg |
0.0001 |
Reactive power |
0.002VAR～7000VAR |
±0.3%rdg |
0.0001 |
Apparent power |
0.002VA～7000VA |
±0.3%rdg |
0.0001 |
PT secondary admittance |
1.0mS～100mS |
±0.5%rdg |
0.0001 |
CT secondary impedance |
0.1Ω～50Ω |
±0.5%rdg |
0.0001 |
Other technical specifications
Basic function |
|
Function option |
Touch screen selection |
Means of communication |
Wireless LORA (230MHz) |
Wireless communication distance |
1000m (in open space) |
Test line |
黄、绿、红、黑色Voltage测试线各1根/主机 |
Electric current pliers |
Mouth size φ8mm,3 / host |
Data storage |
Voltage drop test 400 groups, load test 400 groups, three-phase voltammetry test 400 groups. |
Data retrieval |
There is |
Data upload |
USB接口,测试记录Data upload计算机,可导出为Excel格式. |
电池Voltage |
电池电量指示显示,电池Voltage低于10%时提醒及时充电 |
Automatic shutdown |
开机后15分钟无操作Automatic shutdown,关机前提醒关机 |
Working hours |
充满电时,持续Working hours12小时 |
Work consumption |
Standby (backlight 50) : 320mA; Working (backlight 50) : 420mA |
Working conditions |
Temperature: -20 ~ 50℃, relative humidity: 0 ~ 95percentHR No condensation |
Storage condition |
Temperature: -30 ~ 60℃, relative humidity: 0 ~ 75percentHR |
Basic parameter |
|
Power supply |
DC 7.4V 5200mAH rechargeable lithium Battery |
Disy size |
108mm×65mm (5 "touch color screen) |
Fuselage color |
Black, orange and yellow |
Fuselage weight |
About 870g |
Fuselage size |
210mm×129mm×68mm |
Standard parts |
Current钳6件;测试线8条;充电器2个;USB通讯线2条;仪表箱;LORA胶棒天线2个;GPS胶棒天线2个;GPS平板天线2个;光盘;说明书 |
Standard inner packing |
Neutral carton |
Size of outer packing |
49x36x18cm |
Standard packing quantity |
1 |
Gross weight of standard packing case |
About 5.8KG |
