Application field:
Widely used in circuit insulation fault troubleshooting, monitoring intermittent leakage fault, check the time of insulation failure, maintenance lines, etc
Product Features:
1. Flexible coil without any bare metal conductor, non-contact measurement, safe and reliable
2. Small size, light weight, soft and flexible, suitable for narrow environment and line dense ces, as well as measuring
Measure conductor current of large size or irregular shape
3.配备Rechargeable lithium battery,节电模式下连续工作 7 days, rece the battery without loss of data
4. System clock function, data storage function, 200,000 groups of data storage space.
5.配备 USB interface, online real-time monitoring and historical data reading, consulting, saving, reports, etc.
Technical specifications
Basic function |
VICTOR 9003B |
Quantity The process of |
AC 0.00A ～ 20.00kA |
Points Discernment |
AC 10 mA |
Fine Degree |
±2 %rdg ± 5 dgt |
Test mode |
Flexibility CT： 输出信号是电流对时间的微Points , 通过对输出电压信号进行积Points,就可以真实还原输入电流 . |
Flexibility电流钳口径 |
Standard configuration: φ 20 0mm (can be customized according to customer requirements φ50mm ~ φ1500mm) |
电流钳数Quantity |
Three |
电流钳引线长Degree |
Two meters |
Flexibility线圈直径 |
φ7.5mm |
Position error |
被测导线应尽Quantity处于Flexibility线圈的中心位置 |
Data storage |
Two hundred thousand Group Data will not be lost if the battery is powered off or reced |
Record period |
1秒～99Points钟内设定记录间隔时间,0秒为不自动存储 |
Record the time |
1 second interval, can be recorded continuously 4 8 hours |
1 0 Second interval, can be continuous record 120 hours |
|
1Points钟间隔,可连续记录 168 hours |
|
下载速Degree |
60kB / Min |
Overflow disy |
QuantityThe process of溢出功能： “ OL "Symbol shows |
Rated current |
About -- in power-saving mode 5mA, the maximum is about 35mA |
Line voltage |
AC600V line test below |
电池电压 |
电池电Quantity实时显示,电池电压低提醒更换电池 |
Basic parameter |
|
Power supply |
Rechargeable lithium battery DC3.7V,2600mAh |
Disy size |
Disy field: 44mm×27mm;LCD ： 128 dots×64dots |
Fuselage color |
Black Orange |
机身重Quantity |
About 330g(including battery) |
Fuselage size |
Width, height and thickness 78mm×165mm×42mm |

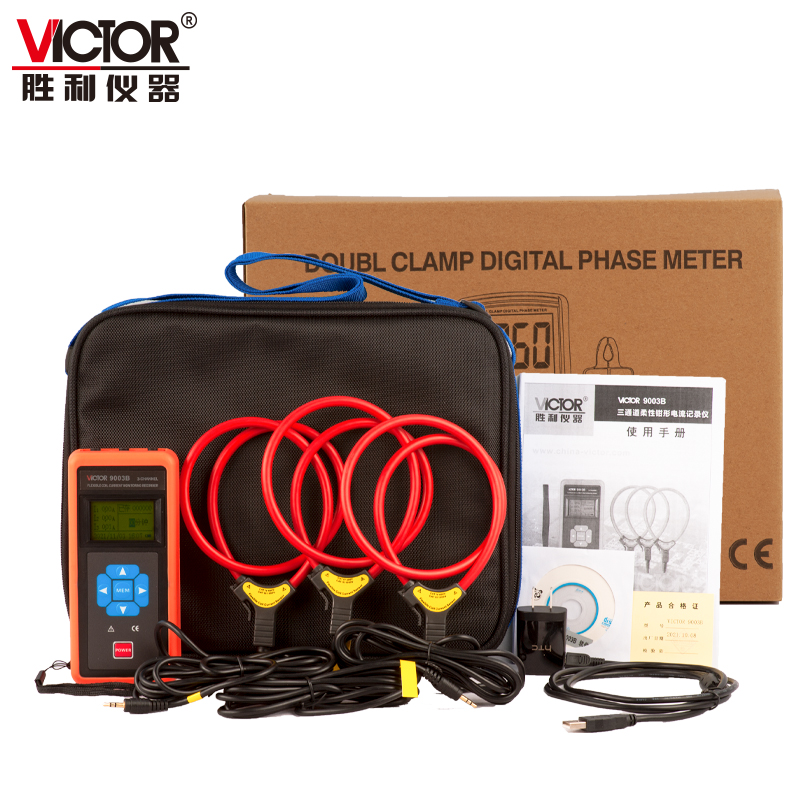

Standard parts |
Flexibility线圈： 3 pieces; USB communication cable: 1; Charger: 1 piece; Cloth bag: 1 piece Charger: 1 piece; Cloth bag: 1 piece |
Standard inner packing |
er box Cloth bag |
Size of outer packing |
|
标准包装数Quantity |
|
Gross weight of standard packing case |
|
