Application field:
Widely used in Troubleshooting of circuit insulation fault in 380/220V power system, monitoring intermittent
Sex leakage fault, check the time of insulation fault, repair line, etc.
Product Features:
Current clamp adopts magnetic shielding and digital integration technology, strong anti-interference, high precision;
It is equipped with rechargeable lithium battery, which can work continuously for about 7 days in power-saving mode. No data will be lost when the battery is reced.
System clock function , data storage function, 200,000 groups of data storage space;
With online real-time monitoring and historical data reading, consulting, saving, report and other functions;
Technical specifications
Basic function |
VICTOR 9003A |
Quantity The process of |
0 mA～500A |
Points Discernment |
1mA |
Fine Degree |
± 1.5 %rdg ±5dgt |
Mouth size |
35mm×40mm |
电流钳数Quantity |
Three |
USB interface |
Have USB interface,存储数据可以上传电脑,软件监控 |
Data storage |
2 100,000 sets (no data loss from power failure or battery recement) |
Record period |
1秒～99Points钟内设定记录间隔时间,0秒为不自动存储 |
Record the time |
1 second interval, can be recorded continuously 4 8 hours |
1 0 Second interval, can be continuous record 120 hours |
|
1Points钟间隔,可连续记录 168 hours |
|
下载速Degree |
60kB / Min |
Overflow disy |
QuantityThe process of溢出功能： “OL”符号显示 |
Rated current |
About -- in power-saving mode 6mA, maximum 35mA |
Line voltage |
AC600V line test below |
电池电压 |
电池电Quantity实时显示,电池电压低提醒更换电池 |
Basic parameter |
|
Power supply |
Rechargeable lithium battery DC3.7V,2600mAh |
Disy size |
Disy field: 44mm×27mm |
Fuselage color |
Black Orange |
机身重Quantity |
Host: about 292 g (including battery); Current clamp: About 180 g / a |
Fuselage size |
Host: Width, height and thickness 78mm×165mm×42mm Current clamp size ： 125mm×70mm×37mm |

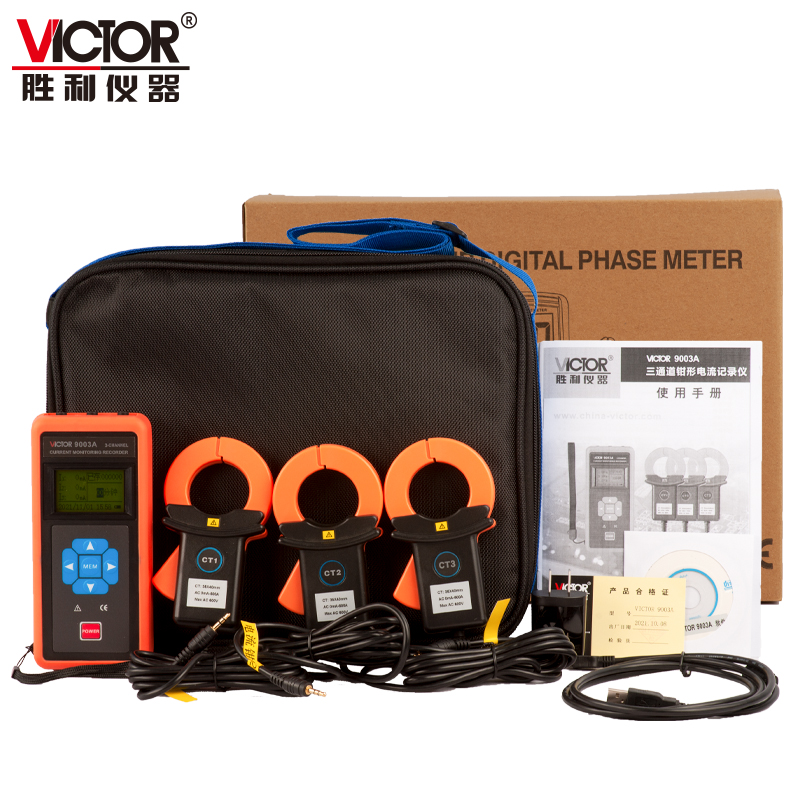

Standard parts |
Current clamp: 1 ~ 3 pieces; USB communication cable/charging cable: 1; Charger: 1 piece; Cloth bag: 1 piece |
Standard inner packing |
er box Cloth bag |
Size of outer packing |
|
标准包装数Quantity |
|
Gross weight of standard packing case |
|
