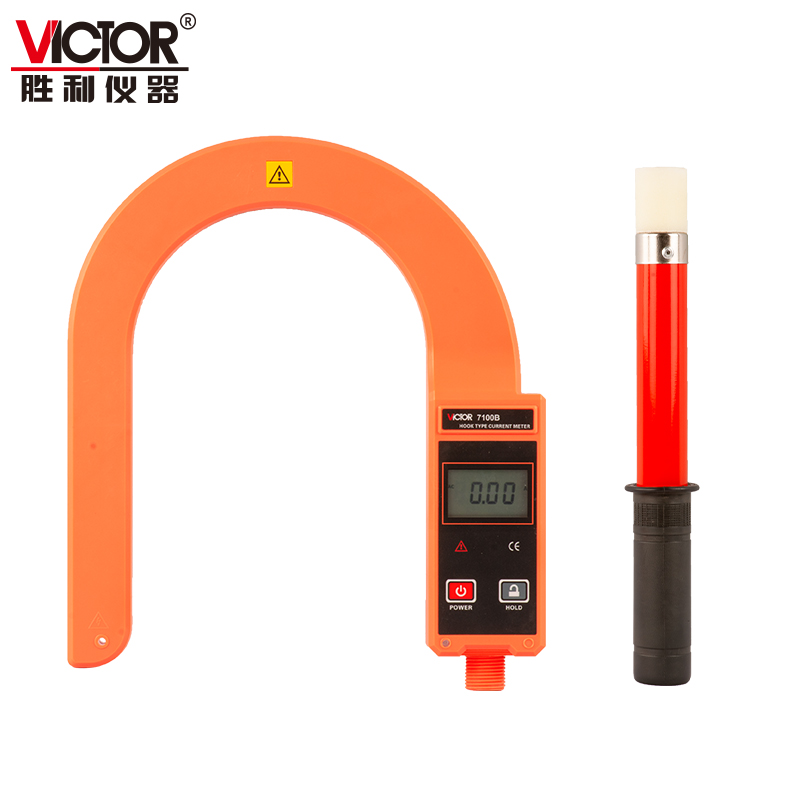

Hook type ammeter can be hung on the line test,
LCD
Disy, clear and intuitive. The insulation rod is light, with moisture-proof, high temperature resistance, impact resistance, high insulation and so on. The meter also has a data hold function. Widely used in substations, power nts, industrial and mining enterprises and detection stations, electrical maintenance departments for current detection and field electrical work

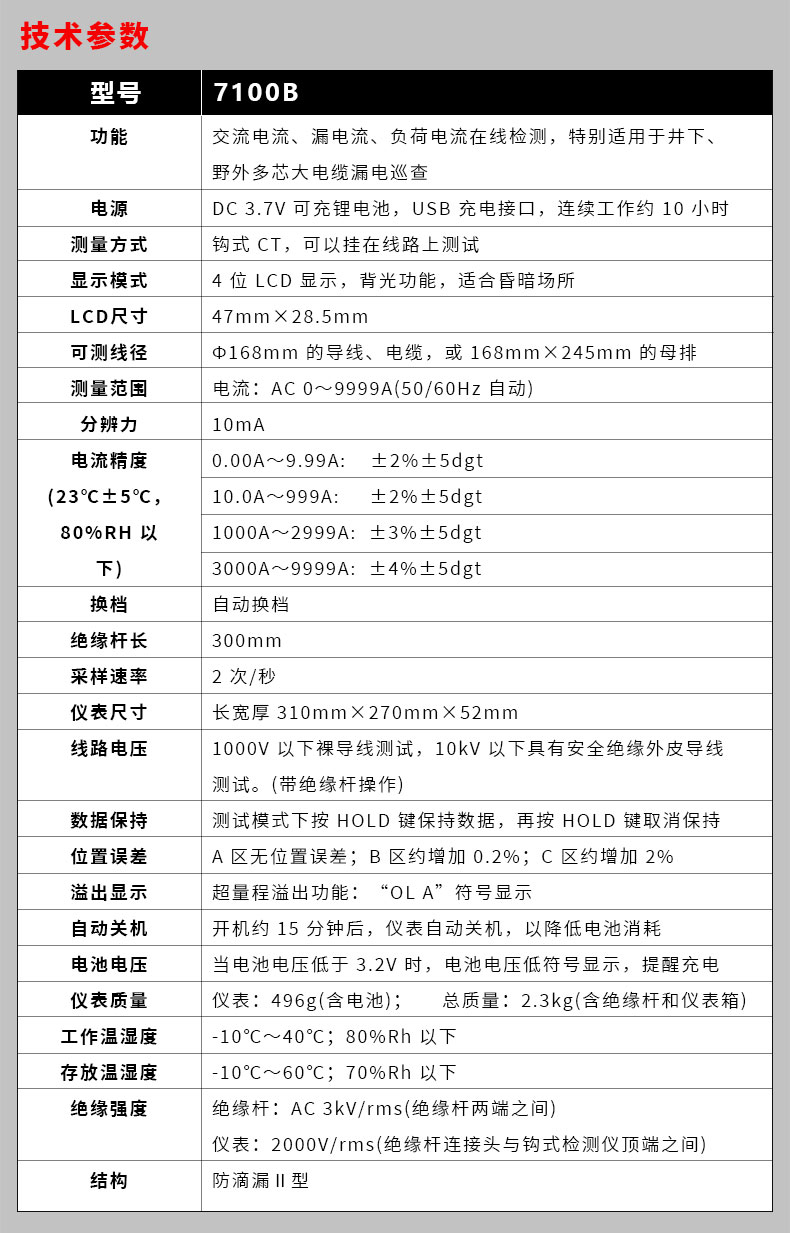

Technical specifications
Function |
Ac current, leakage current, load current online detection, especially suitable for underground, field multi-core large cable leakage inspection |
Power supply |
DC 3.7V rechargeable lithium battery,USB charging interface, continuous operation for about 10 hours |
Test mode |
Hook CT, can be hung on the line test |
Disy mode |

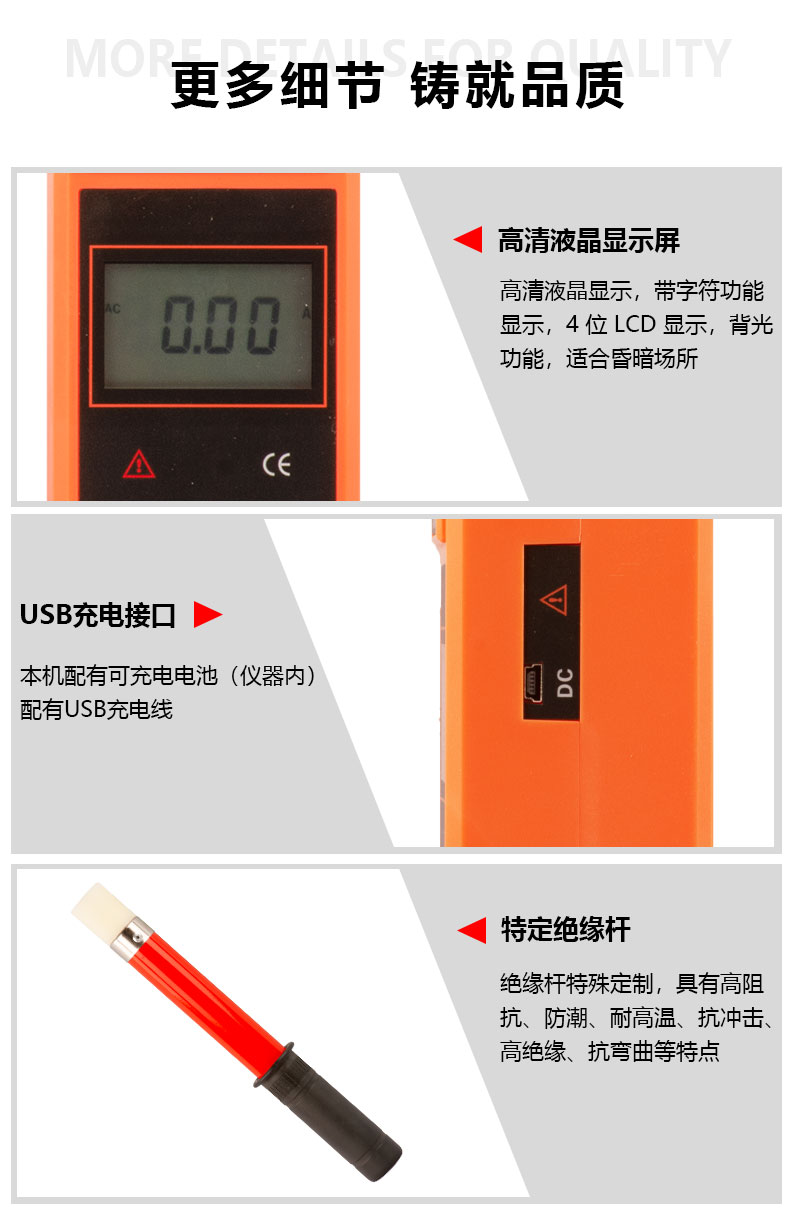

4位LCD显示,背光Function,适合昏暗场 |
LCD size |
47mm×28.5mm |

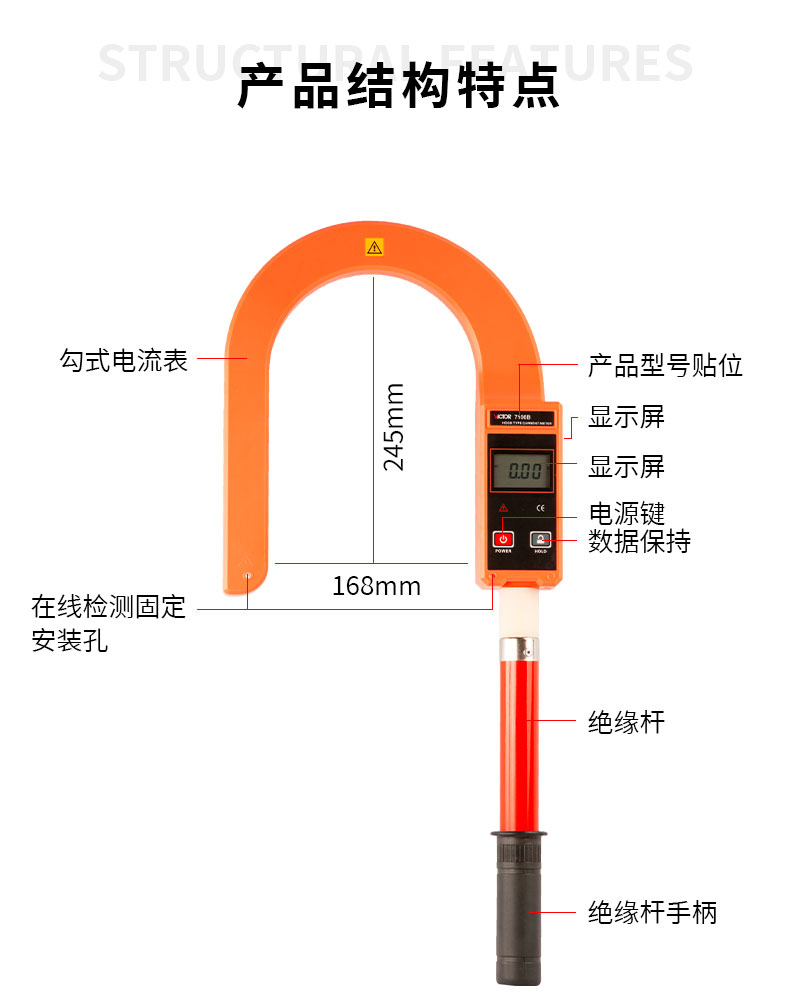

Measurable line diameter |
Diameter of 168mm wire, cable, or 168mm×245mm busbar |
Measuring range |
Current: AC 0 ~ 9999A(automatic 50/60Hz) |
Resolution power |
10mA |
Current accuracy
|
0.00A～999A: ±2%±5dgt |
1000A～2999A:±3%±5dgt |
|
3000A～9999A:±4%±5dgt |
|
Shift gears |
自动Shift gears |
Insulation rod length |
300mm |
Sampling rate |
2 times per second |
Instrument size |
Length width 310mm×270mm×52mm |
Line voltage |
Test of bare conductor below 1000V and safe insulated outer conductor below 10kV (operation with insulated rod) |
Data retention |
Press the HOLD key to HOLD data in test mode, then press the Hold key to cancel hold |

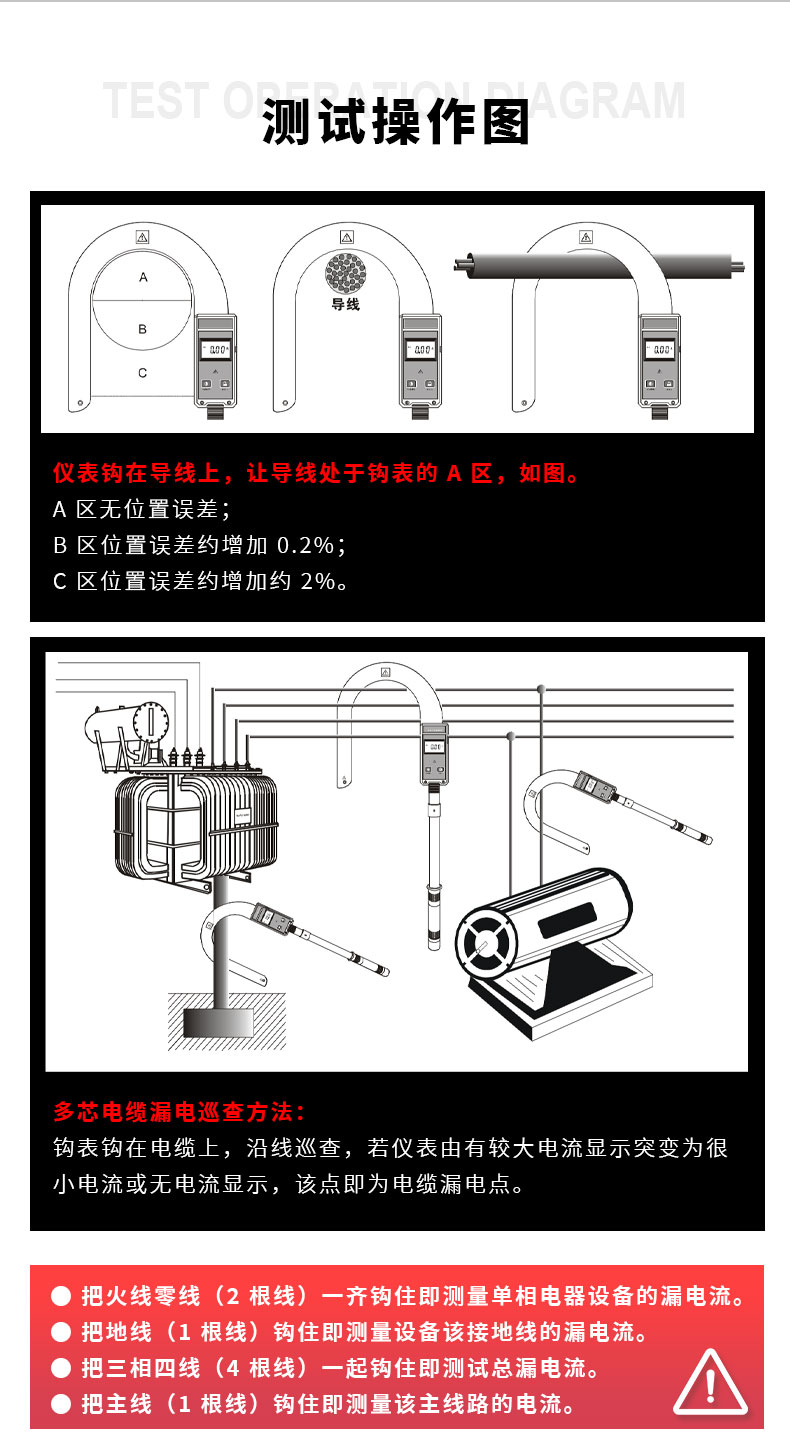

Position error |
A区无Position error;B区约增加0.2%;C区约增加2% |
Overflow disy |
量程溢出Function：“OL A”符号显示 |
Automatic shutdown |
开机约15分钟后,仪表Automatic shutdown,以降低电池消耗 |
电池电压 |
When the battery voltage is lower than 3.2V, the battery low voltage symbol is disyed, reminding to charge |
Instrument quality |
Instrument: 496g(including battery)
|
Working temperature and humidity |
-10℃ ~ 40℃; 80percentRh below |
Storage temperature and humidity |
-10℃ ~ 60℃; 70percentRh below |
Insulation strength |
Insulation rod: AC 3kV/rms(between the two ends of the insulation rod)
|
Structure |
Drip proof Type II |
