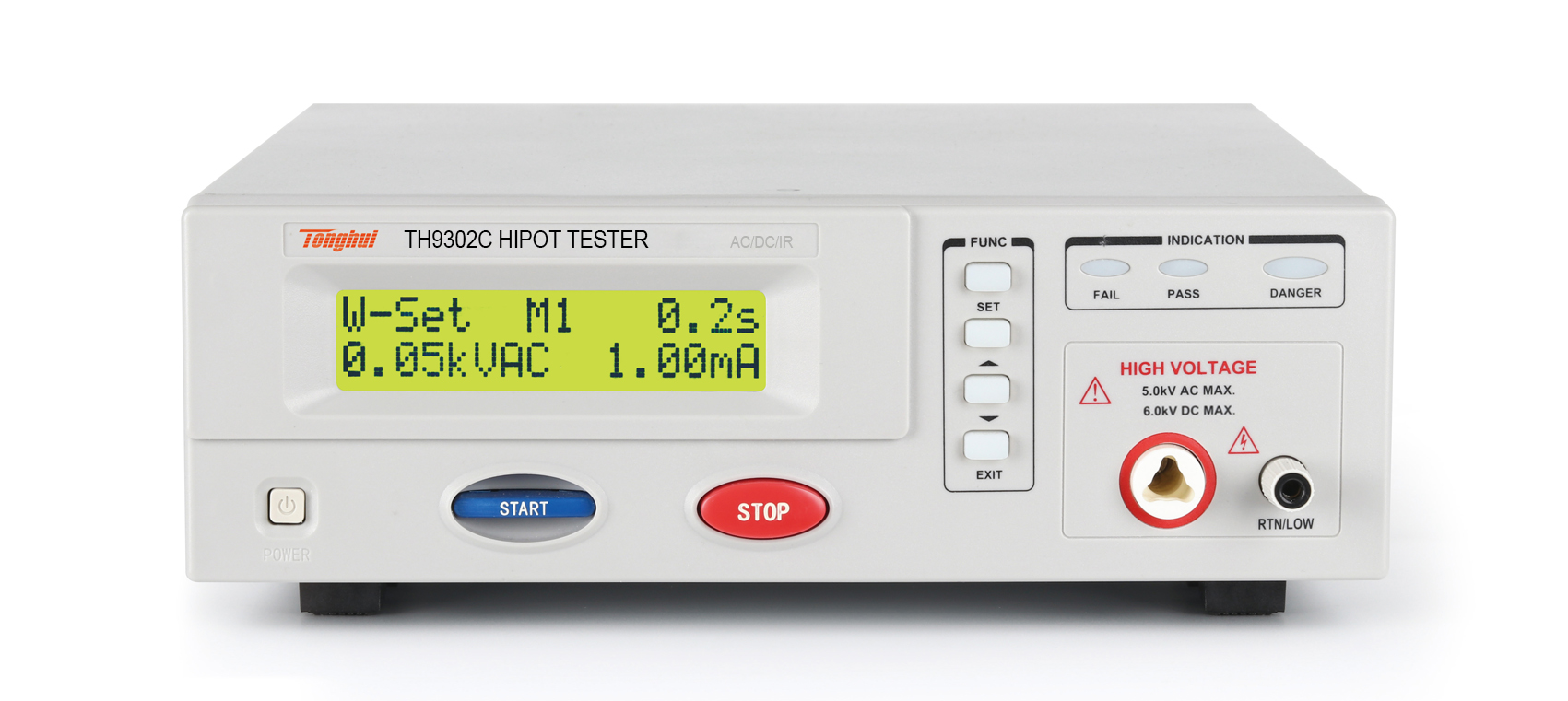

Product model |
TH9302 |
TH9302C |
TH9302B |
TH9302D |
||||
耐压测试 |
||||||||
Voltage output |
AC |
Voltage range |
0.10kV—5.00kV |
|||||
Voltage waveform |
Sine wave |
|||||||
Distortion degree |
<3％ |
|||||||
Operating frequency |
50 Hz and 60Hz are optional |
|||||||
Frequency accuracy |
±1% |
|||||||
Output power |
60VA（5.00kV12mA） |
|||||||
Voltage adjustment rate |
± (2.0percent) 50V (rated power) |
|||||||
DC |
Voltage range |
0.10kV—6.00kV |
------ |
|||||
Source frequency |
600Hz |
------ |
||||||
Output power |
25VA（5.00kV5mA） |
------ |
||||||
Voltage adjustment rate |
± (2.0percent 100V) (rated power) |
------ |
||||||
Voltage resolution |
10V |
|||||||
Voltage accuracy |
±(2.0percent set 20V) |
|||||||
Voltage generation mode |
DDS signal source plus Class AB power amplifier |
|||||||
电流测试 |
AC |
Current range |
0.01mA–10mA |
|||||
Short circuit current (instant) |
> 20mA(set output voltage > 500V) |
|||||||
Current resolution |
0.01mA |
|||||||
Current accuracy |
±(2percent 2 words) |
|||||||
Actual current |
OFF-0.01mA-10mA |
|||||||
DC |
Current range |
1mA–5.00mA |
------ |
|||||
Current accuracy |
±(2.0percent reading 2 words) |
------ |
||||||
Discharge function |
Automatic discharge after the test |
------ |
||||||
Insulation resistance test |
||||||||
Output voltage |
0.10V–1.00kV |
------ |
||||||
Voltage resolution |
10V |
------ |
||||||
Voltage accuracy |
±(2.0percent reading 10V) |
------ |
||||||
Maximum output current |
5mA |
------ |
||||||
Output instantaneous short-circuit current |
>10mA(设定Output voltage>500V) |
------ |
||||||
Load adjustment rate |
≤ 1% (rated power) |
------ |
||||||
Resistance measurement range |
0.02MΩ–10GΩ |
------ |
||||||
Resistance disy range (1000V) |
5mA |
0.2MΩ-1MΩ |
------ |
|||||
1mA |
1MΩ-10MΩ |
------ |
||||||
100uA |
10MΩ-100MΩ |
------ |
||||||
10uA |
100MΩ-1GΩ |
------ |
||||||
1uA |
1GΩ-10GΩ |
------ |
||||||
Accuracy of resistance measurement |
≥500V 1MΩ - 1GΩ±(5percent reading 5 words) 1GΩ -- 10GΩ±(10percent reading 5 words) <500V 0.1MΩ -- 1GΩ±(10percent, 5 words) 1GΩ -- 10GΩ for reference only. No precision requirements |
------ |
||||||
Accuracy of current measurement |
±(2percent 2 words) |
------ |
||||||
Measuring range |
AC |
1mA–20mA |
||||||
DC |
1mA–20mA |
------ |
||||||
Comparator |
||||||||
The way to judge |
窗口比较方式（条件I下
|
|||||||
I下
ON：当I下
|
||||||||
当Ix≤I下 或Ix≥I上 ,FAIL |
||||||||
I下
OFF：当Ix |
||||||||
当Ix≥I上 ,FAIL |
||||||||
绝缘电阻The way to judge同上 |
||||||||
电流上限设置I上 |
AC |
0.01mA–10mA |
||||||
DC |
1uA–5mA |
------ |
||||||
电流下限设置I下 (LOWEROFF) |
AC |
0.01mA–10mA |
||||||
DC |
1uA–5mA |
------ |
||||||
电阻上限设置 |
OFF,1MΩ-10GΩ |
------ |
||||||
电阻下限设置 |
0.1MΩ–10GΩ |
------ |
||||||
判别输出 |
PASS/FAILLCD及LED分别显示,声音报警 |
|||||||
其他功能 |
||||||||

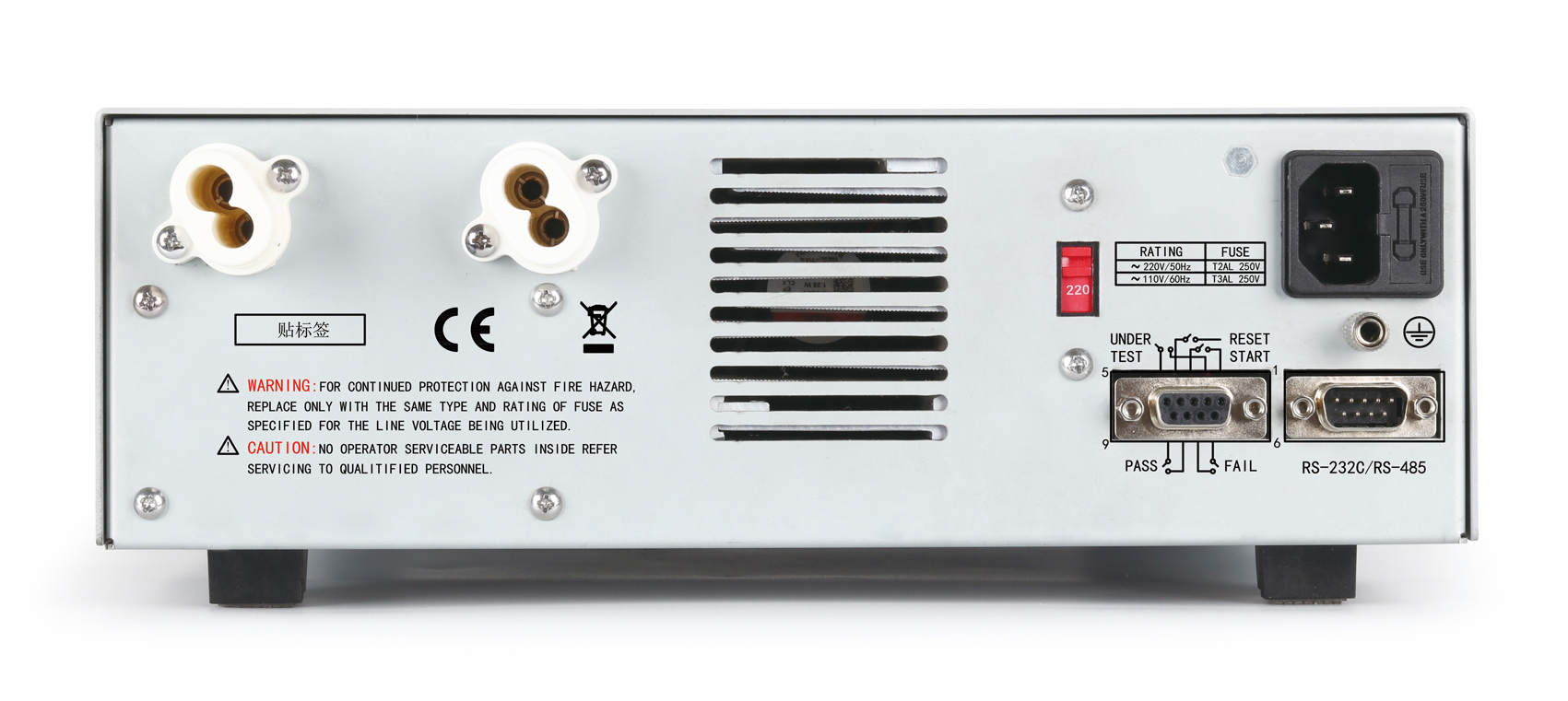

后面板输出孔 |
------ |
有 |
------ |
有 |
||||
接触检查 |
------ |
支持 |
------ |
支持 |
||||
参数设定 |
||||||||
电压上升时间 |
0.1s–999.9s |
|||||||
测试时间设定 |
0.3s–999.9s（在TIMERON时） |
|||||||
时间准确度 |
±（0.2%设定值±0.1s） |
|||||||
测量功能 |
||||||||
键盘锁 |
防止意外修改测试条件,或禁止测试条件被修改 |
|||||||
电流量程判断 |
硬件快速判断绝缘崩溃,比电压采样更快捷安全,减少对产品的冲击损伤 |
|||||||
ARCArc detection |
采样电流的突变信号,判断回路潜在的隐患及大概的规模 |
|||||||
高压指示 |
窗口指示和LED灯指示 |
|||||||
存储与接口 |
||||||||
文件编程和存储 |
可编程9个测试文件 |
|||||||
USB接口 |
无 |
|||||||
开机参数保存 |
设定参数保存为默认参数,下次开机可以自动恢复 |
|||||||
控制接口 |
HANDLER |
|||||||
通讯接口 |
RS232C,RS485 |
|||||||
一般技术指标 |
||||||||
工作温度、湿度 |
0℃－40℃,≤80%RH |
|||||||
电源 |
100V-121V,198V-242V47.5-63Hz |
|||||||
功耗 |
≤300VA |
|||||||
280mm×89mm×402mm |
||||||||
重量 |
约12kg |
|||||||
