Application field
Widely used in substations, power nts, industrial and mining enterprises, detection stations, electrical maintenance departments for current detection and field electrical work. Can also be used for high and low voltage ratio test, that is, respectively measure the high and low voltage current of the primary circuit and the secondary circuit, and then calculate can get the high and low voltage ratio
Product features
1, the current clamp adopts high-performance alloy magnetic core and digital integration technology, strong anti-interference, high precision, stable test;
2, the innovative automatic plug and pull structure, by pressing or pulling out the insulation rod can be convenient to clamp or withdraw the measured wire, safe and time-saving;
3、具有蓝牙通讯,安装 The APP (supporting Android system) can be used for testing and real-time view of test results on the mobile phone;
Technical index
Basic function |
VICTOR 9000A |
Work Can |
High and low voltage AC current measurement |
Test mode |
Pincer shape CT, integral mode |
Transmission mode |
Bluetooth transmission, linear transmission distance Ten meters. |
Disy mode |
4位LCD显示,背光WorkCan,适合昏暗场 |
Mouth size |
Φ48mm |
Sampling rate |
2 times per second |
Measuring range |
0mA to 1200A(Automatic 50/60Hz) |
The highest resolution |
1mA |
Change File |
0mA～1200A全自动ChangeFile |
Test accuracy (23℃±5℃,80percentRH below) |
0mA～99.9A: ±1%rdg±5dgt |
100A～599A: ±1.5%rdg±5dgt |
|
600A～1200A: ±2%rdg±5dgt |
|
Data storage |
Group 99, "MEM" symbol indicates in the stored procedure, "FULL" symbol blinking indicates that the storage is full |
The peak remains |
Automatically hold the maximum test value, usually long press -- in test mode HOLD键,PEAK灯亮,即开启The peak remainsWorkCan,再长按HOLD键取消此WorkCan |
Line voltage |
Test below 110kV, operation with insulated rod |
Data retention |
Usually press -- in test mode The HOLD key holds the data, the "HOLD" symbol is disyed, and then press the HOLD key to cancel |
Data retrieval |
“MR”符号指示,Can上下翻阅存数据 |
Overflow disy |
量程溢出WorkCan： “OL A”符号显示 |
Automatic shutdown |
Boot about 15分钟后,仪表Automatic shutdown,以降低电池消耗（蓝牙连接时不Automatic shutdown） |
电池电压 |
When the battery is low, the battery low voltage symbol Disy, remind the meter to be charged |
Working temperature and humidity |
-10℃ ~ 50℃; 80percentRh below |
Storage temperature and humidity |
-10℃ ~ 60℃; 70percentRh below |
Dry Disturb |
None 315MHz、433MHz同频信号DryDisturb |
Insulation rod size |
Φ32mm,1m/ section (5 sections) |
Insulated rod withstand voltage |
AC 110kV/rms(All 5 insulated rods are connected) |
Basic parameter |
|
Power supply |
DC 7.4V 600mAH, rechargeable lithium battery |
Disy size |
47mm×28.5mm |
Fuselage color |
Iron gray |
Fuselage weight |
Detector: about 342g(including battery) |
Fuselage size |
Detector: 255毫米×84毫米×39毫米;:165mm×78mm×42mm—— |

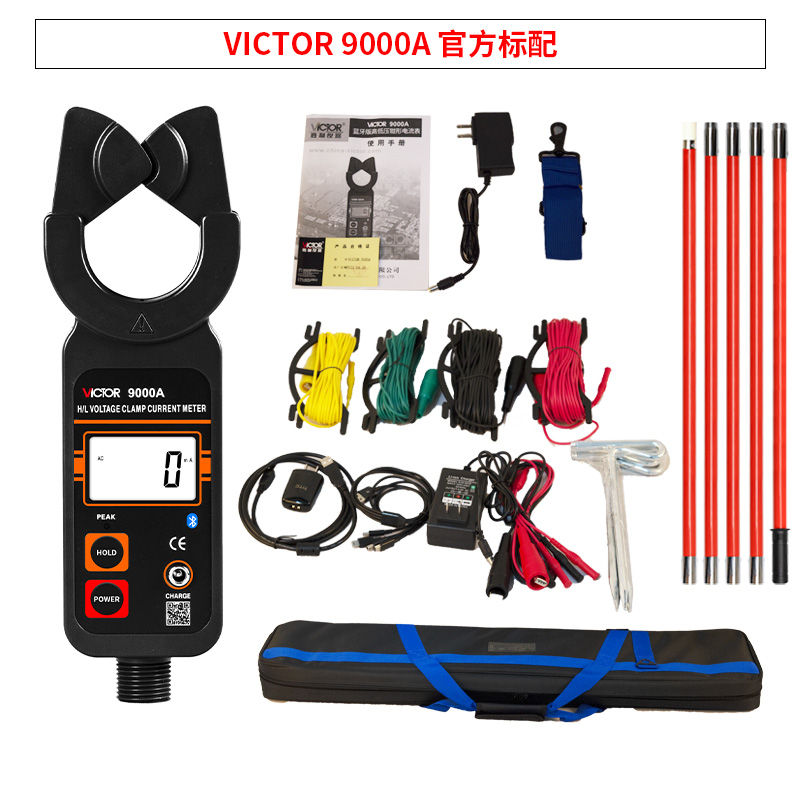

Standard parts |
5 insulated rods (1m/section), kit, charger, instruction manual |
Standard inner packing |
The carton |
Size of outer packing |
104*24*14cm |
Standard packing quantity |
1 |
Gross weight of standard packing case |
About 6kg(including insulated rod) |
