Technical parameters
Model number
Output voltage
Leakage current range
Accuracy
Test time

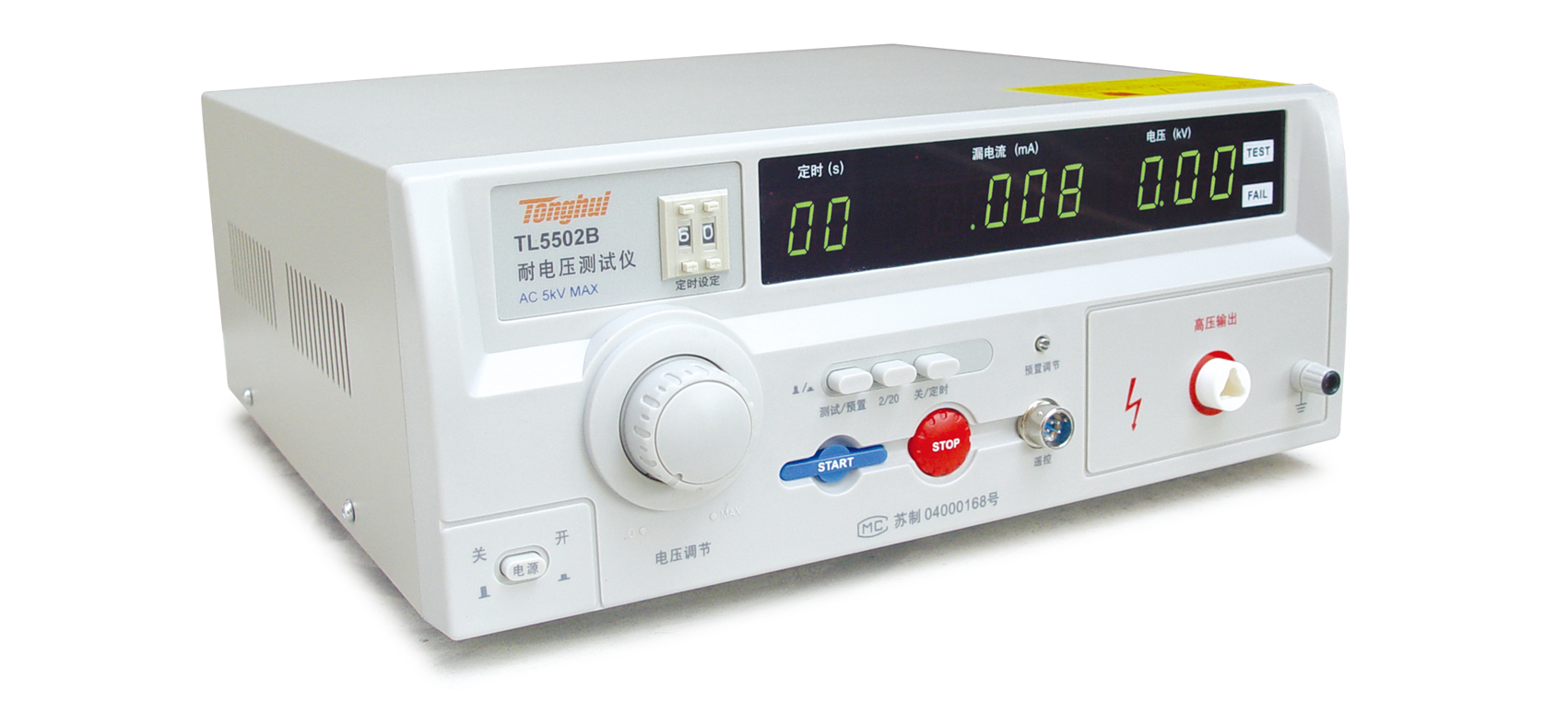

TL5502B
0-5kV(AC)
0-2/20mA(AC )
±（5%+3counts）
1`-99s
TL5502A
0-5 kV (AC/DC)
0-2/20mA(AC/DC )
TL5510A
0-5 kV (AC/DC)
0-2/20/100mA(AC ),0-2/20mA(DC )
TL5520B
0-5 kV (AC)
0-200mA(AC )
TL5605A
0-10 kV (AC/DC)
0-2/20/50mA(AC ),0-2/10mA(DC )
Model number
Capacity
Dimension (mm) (WxHxD)
The weight of
Temperature/humidity
TL5502B
100VA
350x135x280
8kg
0 ℃-40℃≤75%RH
TL5502A
100VA
350x135x280
10kg
TL5510A
500VA
375x195x280
12kg
TL5520B
1000VA
435x230x425
20kg
TL5605A
500VA
375x195x280
20kg
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
