Application field:
It is widely used in electric power, railway, industrial and mining enterprises and other near power operation personnel Product Features: Safe, practical, convenient, especially suitable for overhead high-voltage line environment use; Power saving durable, long standby time
12 months; 全方位非接触感应电压源,Automatic trigger检测
;
Sound and light alarm.
Voltage level与Alarm distance： （Safe distance依据
"GB 26860-2011 Code of Work for Safety of Electric Power -- Electrical Parts of Power nts and substations" and "GB 26859-2011 Code of Work for Safety of Electric Power -- Electrical Lines") Voltage level
Safe distance
Alarm distance
1KV
0.1
0
m
6.6kV
0.
70
m
10kV
0.70m
1.00
m
35kV
1.00m
1.
60
m
66kV
1.50m
2.20
m
110kV
1.50m
2.
50
m
220KV
3.00m
3.
50
m
330KV
4.00m
4.50
m
500KV
5.00m
5.50
m
Basic function

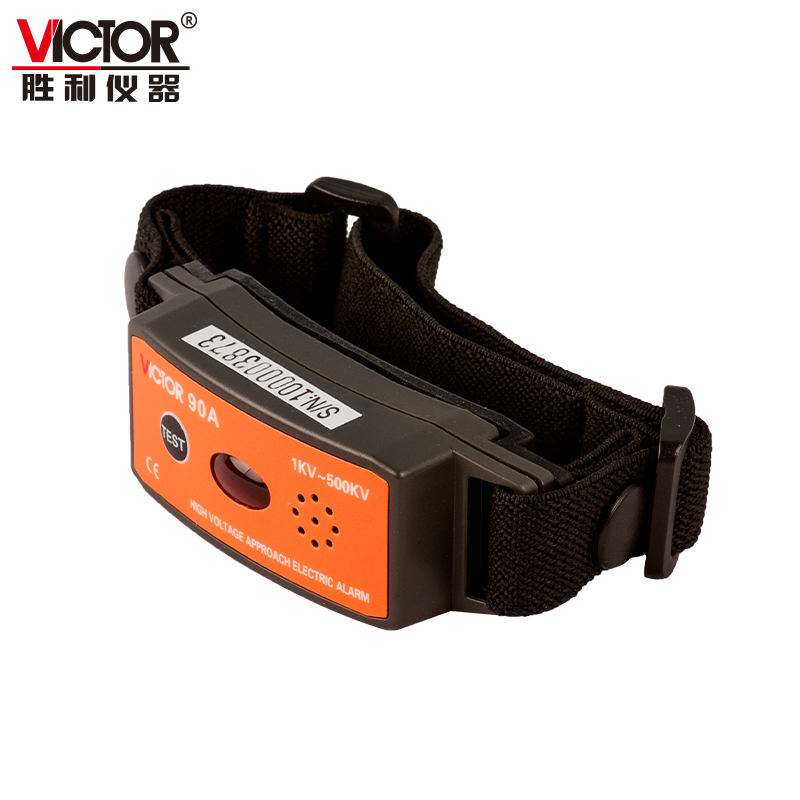

VICTOR 90A

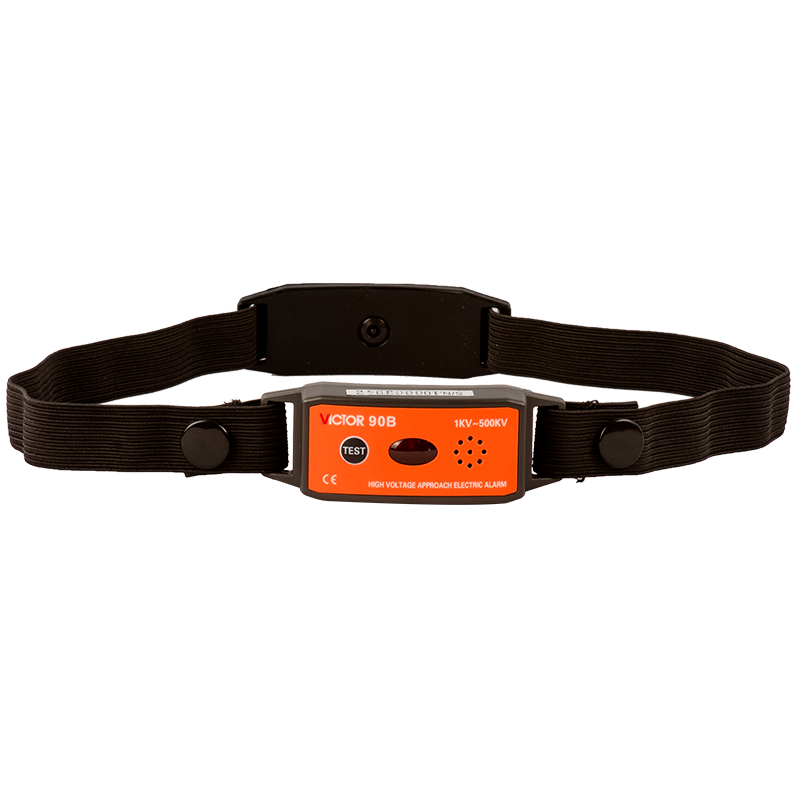

VICTOR 90B
Alarm voltage range
1kV～500kV
Alarm distance误差
±10cm (23℃±1℃,80percentRh, reference conditions)
Operating frequency
50Hz/60Hz
Electrical test mode
Non-contact type
Detection mode
Automatic trigger
Battery life
Continuous operation (sound and light alarm) : about
24 hours
,
待机时间：大About
Twelve months
Alarm mode
Indicator light:
8000XL visible LED lamp under visible light
Buzzer:
60dB (60CM apart)
Protection level
IP54
Working temperature and humidity
-10℃ ~ 40℃; 80percentrh below
Storage temperature and humidity
-10℃ ~ 60℃; 70percentrh below
Technical specifications Basic parameter
Power supply
CR1632 Button Battery
2
Section
Disy size
None
Fuselage color
Black
Orange
Fuselage weight
About
51
g
（
Battery included
）
About
60g（Battery included）
Fuselage size
88
mmX
32
mmX3
0
mm
Standard parts
Batteries, instructions
Standard inner packing
The color box
Size of outer packing
67x37x29cm
Standard packing quantity
72
Gross weight of standard packing case
2kg
