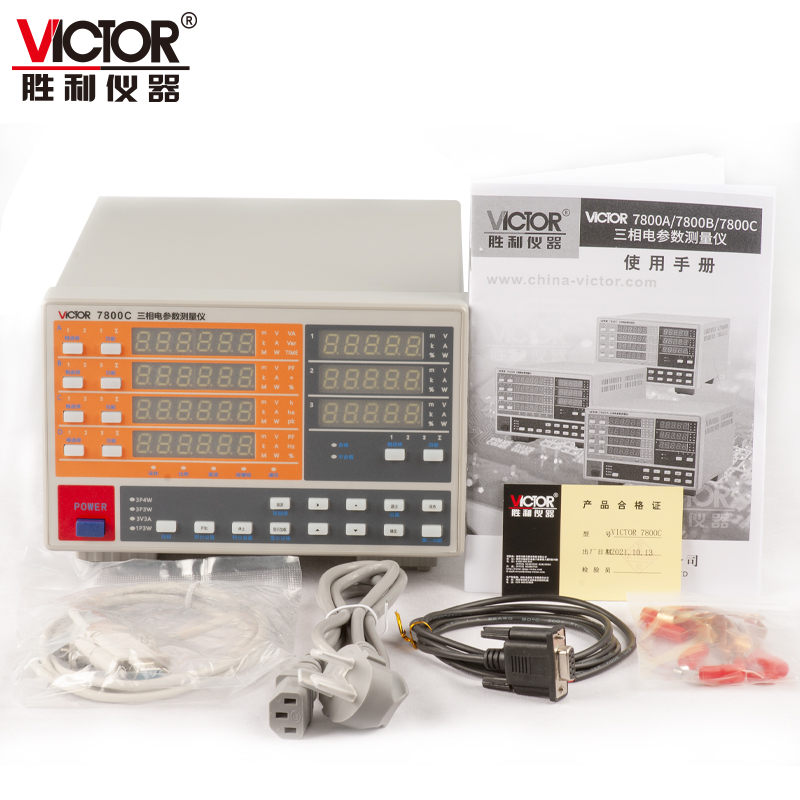

Application field:
Suitable for household appliances, electromechanical, automobile and frequency conversion electrical appliances, motor motor and other maintenance or production testing fields

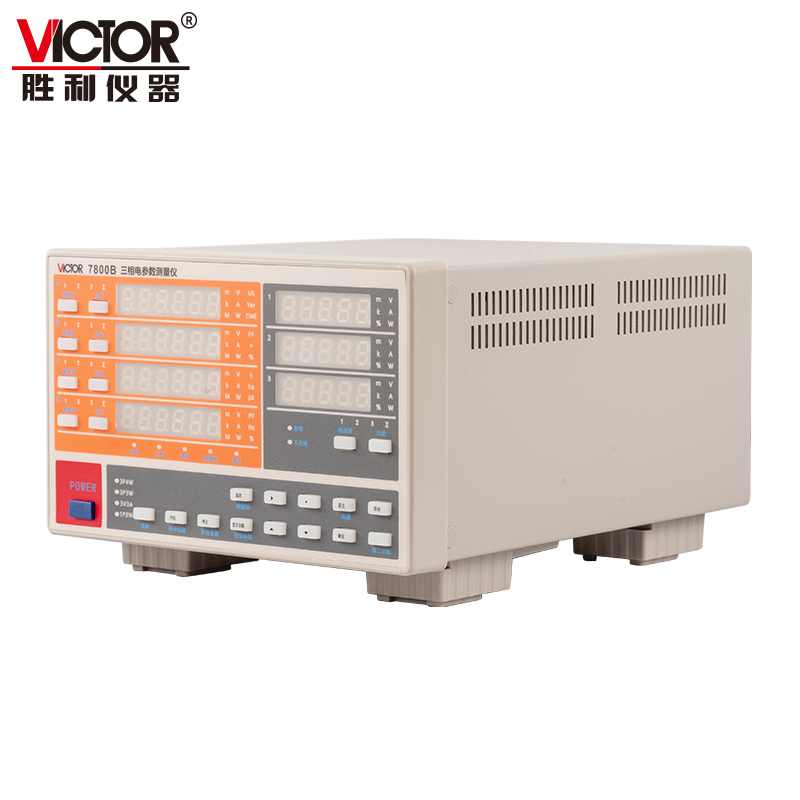

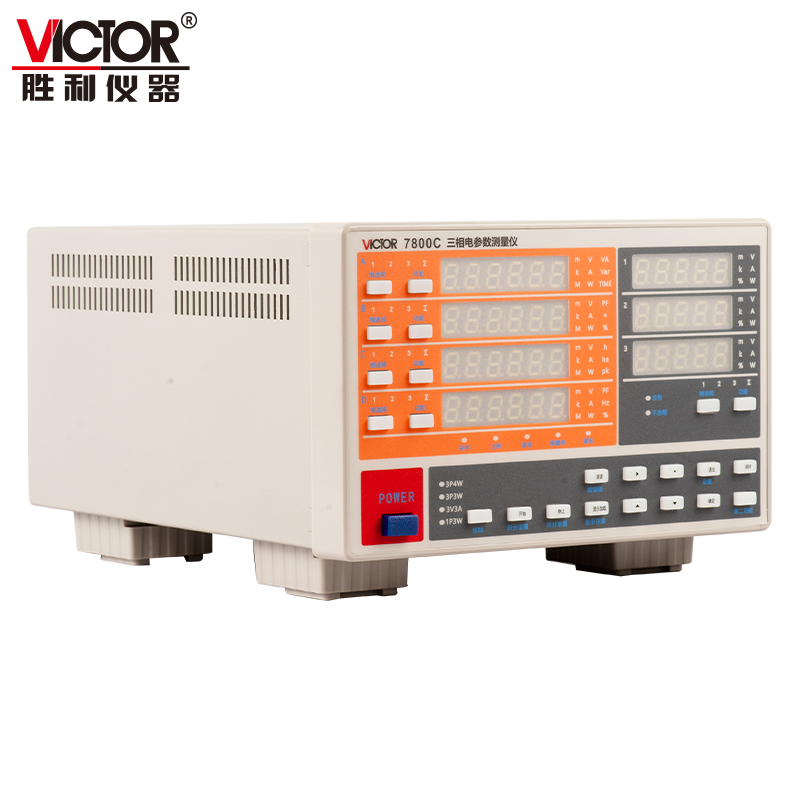

Product Features:
1. Four Windows on the left and three Windows on the right simultaneously digitally disy multiple parameters of each phase, which is intuitive and convenient;
2. A variety of measurement wiring options, flexible and convenient use;
3. The measured signal values are true effective values, which are also applicable to waveform distortion signals;
4. The instrument interior double watchdog design, complex environment does not crash, higher reliability;
5. VICTOR 7800B/VICTOR 7800C has the function of power integration and harmonic analysis;
6. VICTOR 7800B/VICTOR 7800C has the communication function of RS-232C/RS485 serial port
Technical specifications
Basic function |
Measuring range |
|||
Model number |
VICTOR 7800A |
VICTOR 7800B |
VICTOR 7800C |
|
Voltage U |
10.0 ～ 600.0V |
10.0～10 00.0V |
||
Current I |
0.01 ～ 40.0A |
0.01 ～ 60.0A |
||
Active power P |
Voltage Quantity The process of * Electricity Flow QuantityThe process of |
|||
Power factor PF |
-1.000 ～ 1.000 |
|||
Voltage Frequency The rate of f U |
45.00-65.00Hz |
|||
Harmonics |
|
1-50 times, accuracy grade: B class IEC61000-4-7 |
||
Electricity能 E |
|
0～999999 MWh/0～-99999 MWh |
||
Integration time T |
|
99999h |
||
Special function |
|
|
|
|
Signal input |
VoltageCurrent均为浮置输入 |
|||
Impedance |
Voltage输入Impedance约 600kΩ、Current输入Impedance约4mΩ |
|||
测Quantity信号峰值 |
VoltageCurrent均为QuantityThe process of的 1.3 times |
|||
采样速The rate of |
8000 次/s,采样周期约 125μs,24 位,Voltage、Current同时采样 |
|||
Zero correction mode |
Automatic zero correction on startup |
|||
Line filtering |
Fixed as 2kHz |
|||
Data update |
Data calculation cycle 0.05s to 1s can be set as |
|||
Disy mode |
7 Windows with white LED disy |
|||
Power consumption of the whole machine |
<15VA |
|||
Communication interface |
|
Standard configuration RS232／485 |
||
Call the police (ALARM) |
Call the police ON/OFF: The factory default value is OFF |
|||
