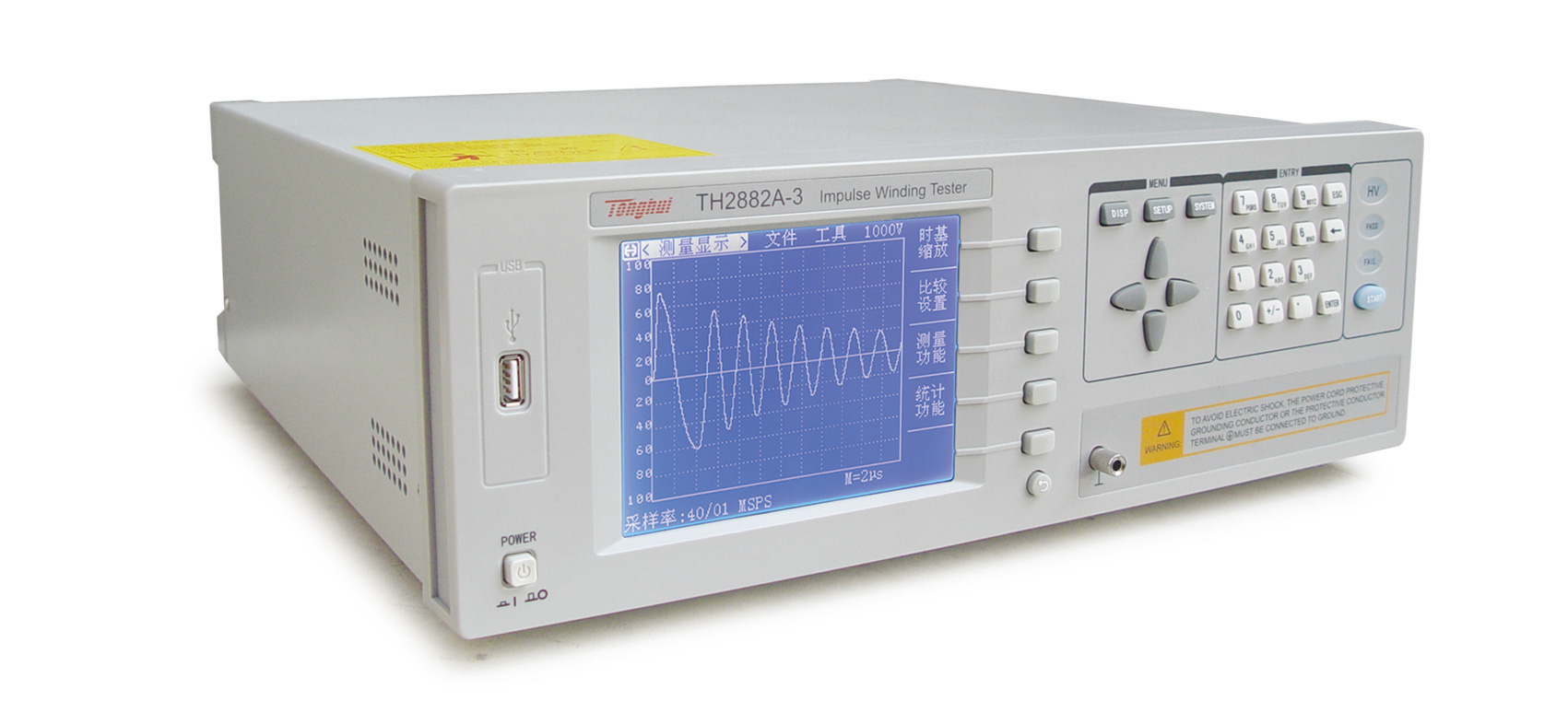

Output pulse voltage

300V-3000V±5% , 50V step

Voltage control mode

Normal: programming set test end open circuit voltage constant: voltage automatic control, not affected by winding impedance

Test range

Single-phase

Pulse energy

≤90milli- Joule

电感量Test range

≥10μH

The monitor

320×240 Dot LCD screen,240×200 dot waveform disy

Disy content

Setting parameters, standard and measured waveform, measurement and comparison results

Waveform sampling

Maximum sampling rate of 40 MSPS,8 bits,960 points

Input impedance

10MΩ( Resistance voltage divider)

Measure the speed of

5.5 Times/second (waveform disy OFF),3.3 times/second (waveform disy ON)

Disy waveform measurement

Voltage, time, frequency

Trigger mode

Internal/manual (foot control)/External/bus

Comparison mode

Area comparison, area difference comparison, corona discharge, phase difference comparison

Measurement repetition accuracy

±1%

Discriminant output

PASS/FAIL Disy, alarm

Memory

Instrument inside can store 60 groups of standard waveform USB disk can store 500 groups of standard waveform

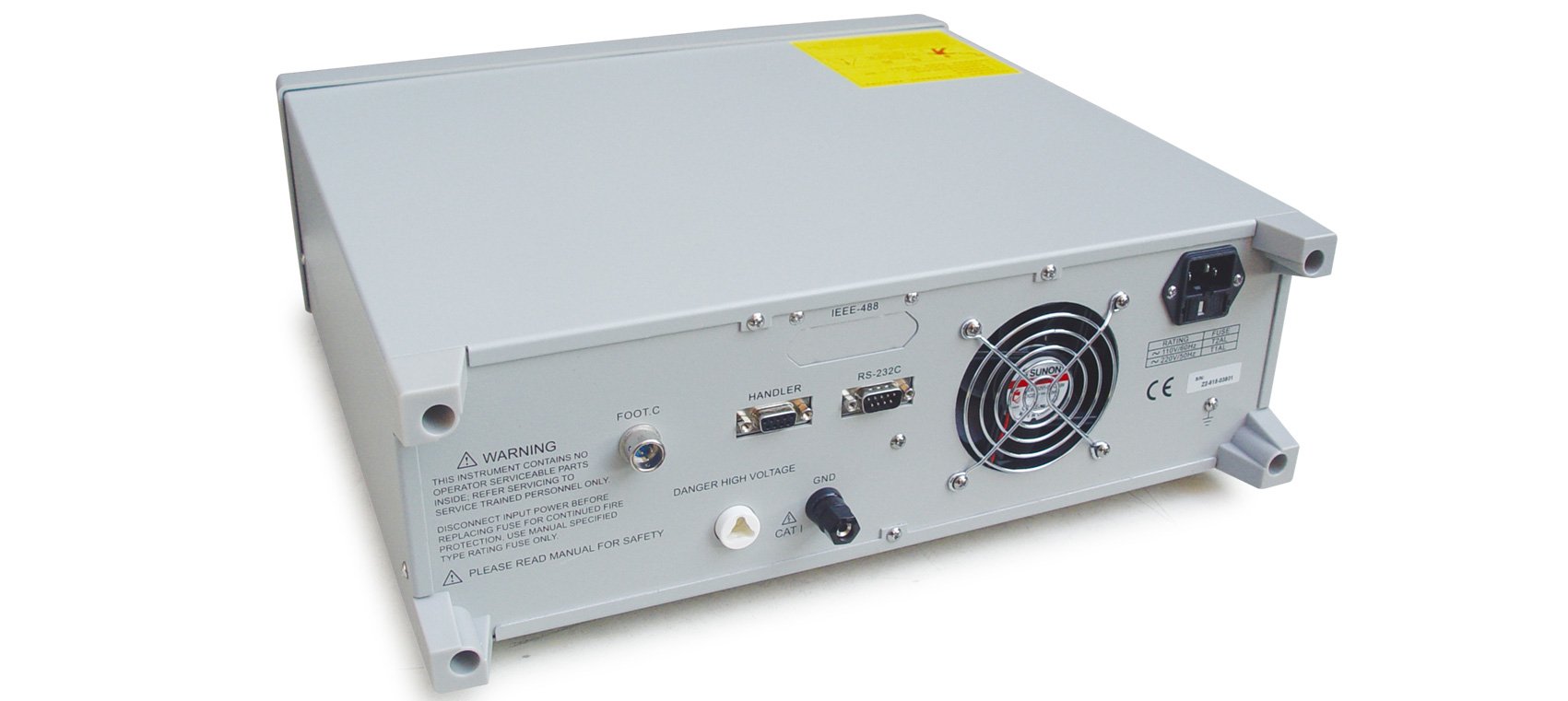

Interface

HANDLER,RS232C,GPIB( Optional)
