Technical parameters
Model number

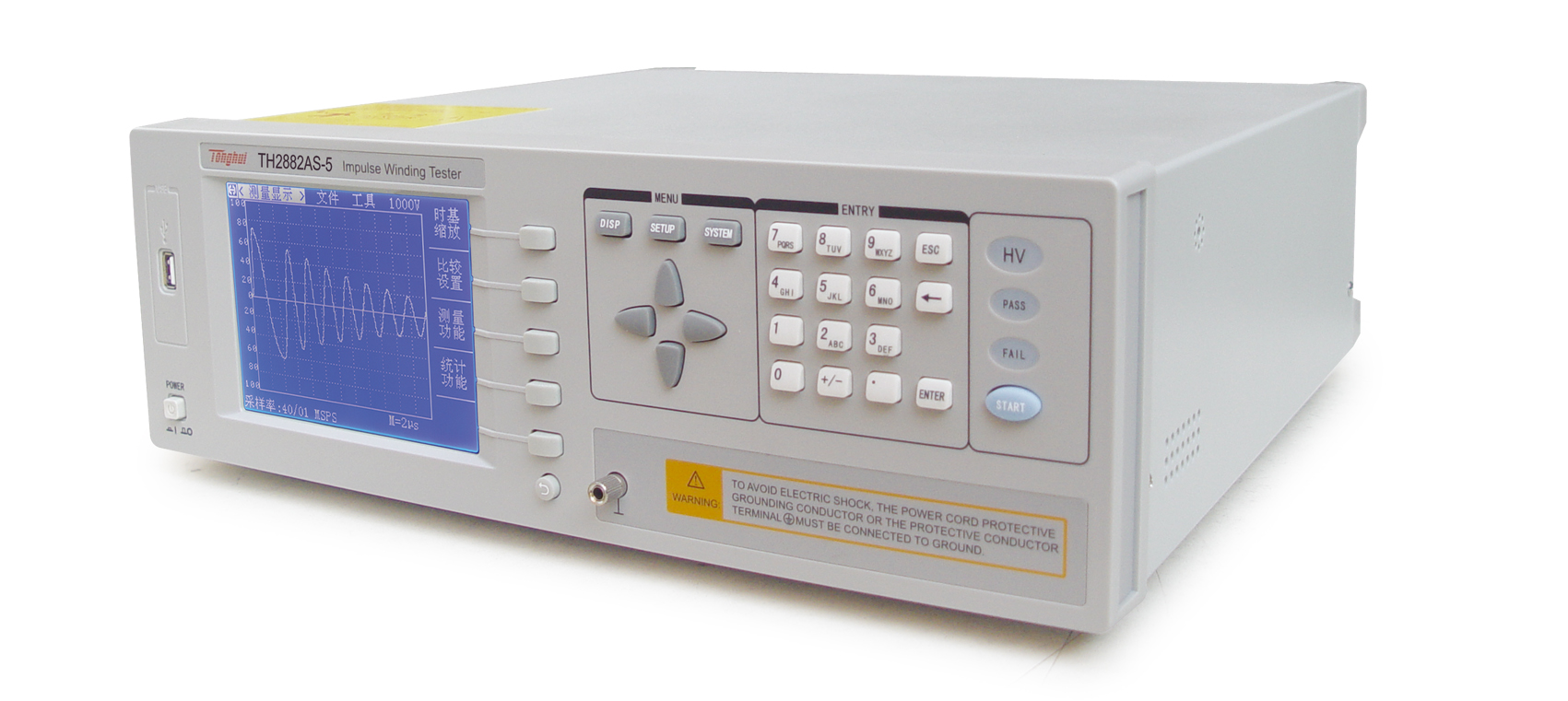

TH2882AS-5
Output pulse voltage
500V-5000V±5%, 100V Step by step
Voltage control mode
Normal: programming set test end open circuit voltage constant: voltage automatic control, not affected by winding impedance
Test range
Three-phase three-wire system three-phase four-wire system
Pulse energy
≤250milli- Joule
电感量Test range
≥200μH
The monitor
320×240 Dot LCD screen,240×200 dot waveform disy
Disy content
Setting parameters, standard and measured waveform, measurement and comparison results
Waveform sampling
Maximum sampling rate of 40 MSPS,8 bits,960 points
Input impedance
10MΩ( Resistance voltage divider)
Measure the speed of
Three-phase test :2.0 times/second (waveform disy OFF),1.5 times/second (waveform disy ON)
Disy waveform measurement
Voltage, time, frequency
Trigger mode
Internal/manual (foot control)/External/bus
Comparison mode
Area comparison, area difference comparison, corona discharge, phase difference comparison
Measurement repetition accuracy
±1%
Discriminant output
PASS/FAIL Disy, alarm
Memory
Instrument inside can store 60 groups of standard waveform USB disk can store 500 groups of standard waveform

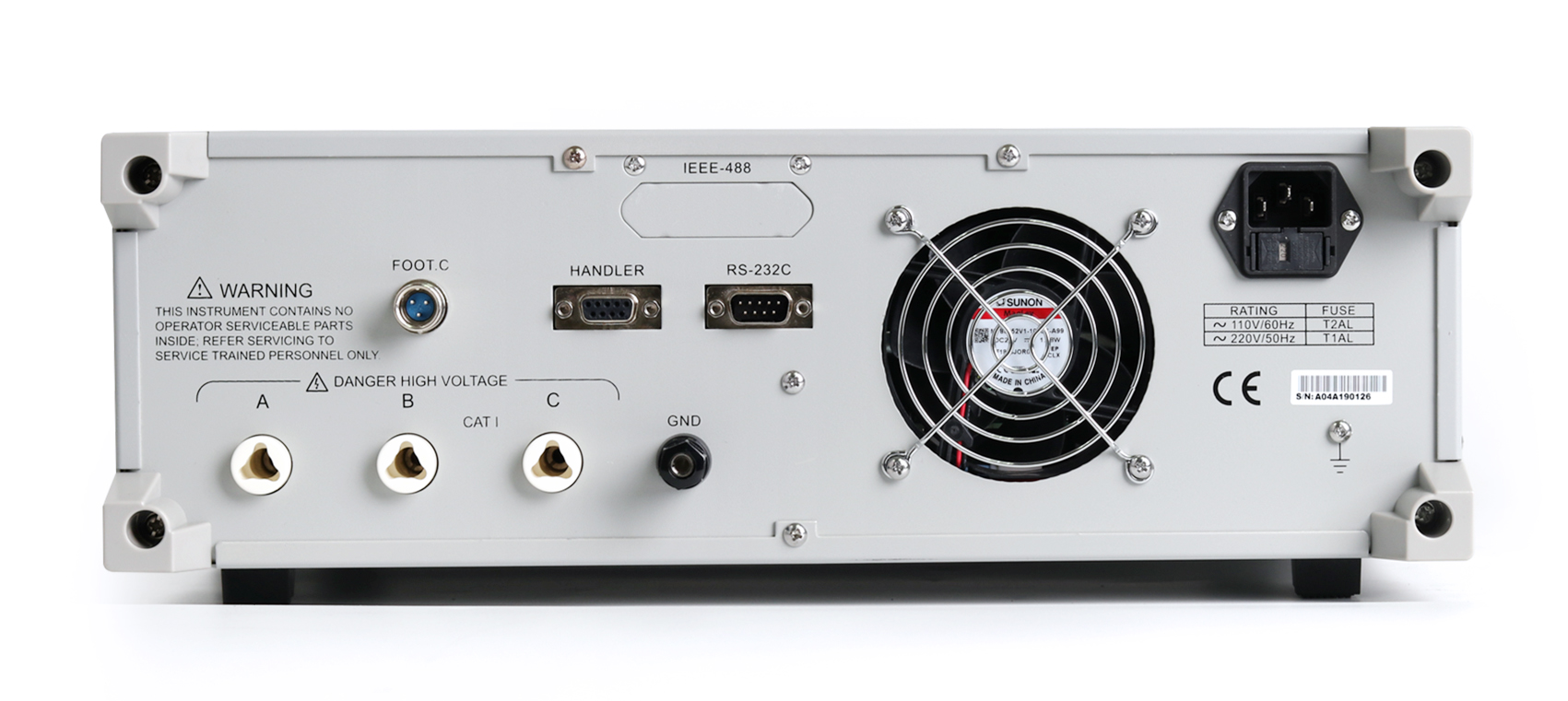

Interface
HANDLER,RS232C,GPIB( Optional),
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Foot start switch | TH2881-001 |
|
|
|
|
| High voltage test line | TH2882AS-01 |
|
|
|
|
