Product Description:
JK500/JK500C handheld multi-channel temperature acquisition instrument is the latest handheld temperature curve acquisition instrument launched on our technical tform. The use of high-performance ARM microprocessor control and 5.6 inch LCD screen, so that waveform disy at a glance
It can also collect multi-channel temperature data at the same time, alarm and communication transmission, and can be extended to 128 multi-temperature data, compatible with a variety of temperature sensors, fast response speed, data stability, and at the same time has the function of breaking the couple detection. There are as high as 6AH

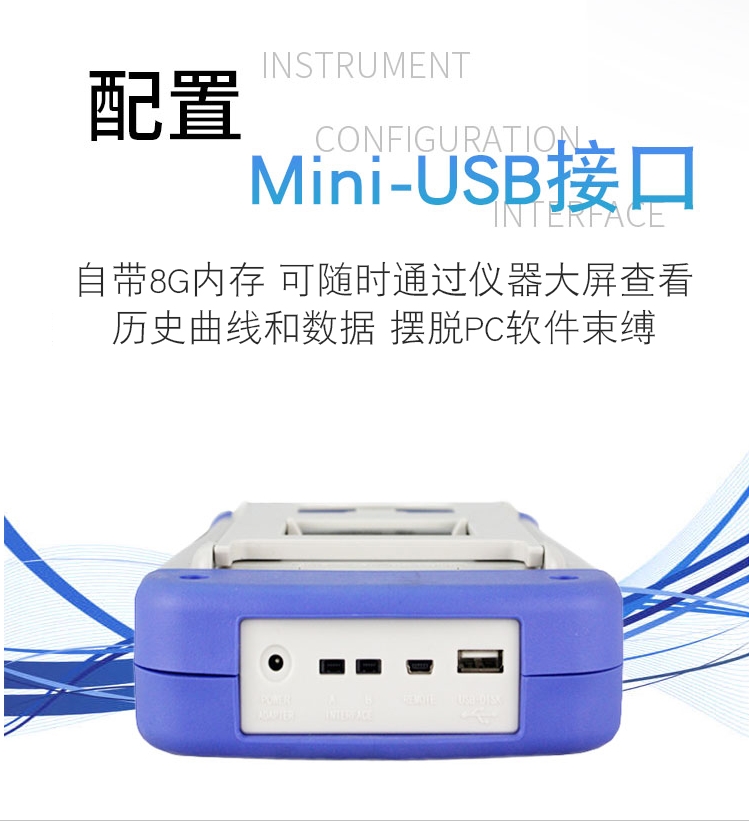

Lithium battery power supply, to ensure long time collection work, and provide free special collection software. The instrument is equipped with Mini-USB (virtual serial port) interface, and data collection, analysis and printing can be realized through the standard computer software. Support USB disk storage
Storage to realize the storage of sampled data. Users can calibrate each channel independently.
Product Features:
■ Fast response and stable data ■ 5.6-inch large screen shows clear curves ■ Maximum, average, minimum
■ Temperature difference compensation ■ 16G memory card ■ Historical query data curve
■ Usb flash disk stores data ■ Instrument with temperature curve disy function, disy maximum, minimum, average
Technical parameters:
Model number |
JK508 |
JK516 |
JK50 8 C |
JK516C |
Number of channels |
8 |
16 |
8 |
16 |
Dividing sign |
Thermocouple: J/K/T/E/S/B/N/R/ type; Thermal resistance: Pt100 |
J/K/T/E/S/B/N/R/ |
||
Basic accuracy |
± 0.2percent 1℃ (K type thermocouple); 0.5℃ （PT100) |
|||
Test range |
-200℃ ~ 1300℃ （Test range因Dividing sign不同而有差异） |
|||
Resolution |
0.1℃ |
|||
Correction |
Per channel error correction |
|||
Comparator |
Each channel separately sets the upper and lower super values |
|||
Standard interface |
U disk interface Mini(virtual serial port) |
|||
Standard software |
Data acquisition software |
|||
Cold end compensation |
Accuracy: 0.5℃ |
|||
Other |
TFT-LCD 5.6 "true color LCD disy, broken couple detection function |
|||
General characteristics |
|
|||
Power requirements |
Input: 100-240V to 50/60Hz 0.35A Output: 9V 1A DC |
|||
Battery parameters |
8.4V,Li,6000mAH rechargeable battery |
|||
Battery charging time |
Single continuous charge: maximum 300Min |
|||
Battery operating time |
Not more than 8 hours |
|||
Size and weight |
External dimension (mm) 229 (H) *148 (W) *46 (D) 650g |
|||
Attachment |
热电偶8,直流电源适配器,便携包,锂电池,Mini-USB 通讯电缆,Data acquisition software,无线传送模块（选配） |
|||
