Technical parameters
Model number
TH8205
Input power
2000W
Input voltage
150V
Input current
0-200A
Static mode
Constant current ( CC ), constant resistance ( CR ), constant voltage ( CV ), constant power ( CP)
Minimum operating voltage
1.5V@2A
1.5V@20A
1.5V@200A
Constant voltage
（ CV ）
The range of
0-15V
Resolution
1mV
The range of
0-150V
Resolution
10mV
Precision
0.05%+0.05%FS
Constant current
（ CC ）
The range of
0-2A
Resolution
0.05mA
The range of
0-20A
Resolution
0.5mA
The range of
0-200A
Resolution
5mA
Precision
0.1%+0.1%FS.
Constant resistance
（ CR ）
The range of
0.015 Ω -15 Ω
The range of
0.06 Ω -60 Ω
The range of
1.5 Ω -3000 Ω
Resolution
Precision
Vin/Rset*0.2%+0.2%FS
Constant work
Rate (--) CP)
The range of
0-20W
Resolution
2mW
The range of
0-200W
Resolution
20mW
The range of
0-2000W
Resolution
200mW
Precision
0.3%+0.3%FS
V on &V off
Control
V on &V off
CC/CR/CP
Precision
0.2%FS
Advanced mode
Dynamic load mode, dynamic frequency scanning, simulation LED Test, battery test, time measurement, maximum power point tracking test, OCPT Test, OVPT Test, OPPT Test,正弦波Test,列表Test, Automatic test.
Dynamic mode - Constant current mode
Minimum operating voltage
1.5V
Frequency
The scope of
100Hz-50kHz/0.01Hz-1kHz
Precision
1 μ s/1ms+100ppm
Duty cycle
1-99%( Minimum rise time controlled )
The slope
The range of
0.4A/ms-
0.2A/µs
Resolution
0.05mA/µs
The range of
4A/ms-2A/µs
Resolution
0.5mA/µs
The range of
40A/ms20A/µs
Resolution
5mA/µs
Precision
10% ± 20µs
Minimum rise time
10µs
Current
The range of
0-2A
Resolution
0.05mA
The range of
0-20A
Resolution
0.5mA
The range of
0-200A
Resolution
5mA
Measure (read back)
Voltage
The range of
0-15V
Resolution
1mV
The range of
0-150V
Resolution
10mV
Precision
0.05%+0.05%FS
Current
The range of
0-0.8A
Resolution
0.02mA
The range of
0-8A
Resolution
0.2mA
The range of
0-80A
Resolution
2mA
Precision
0.1%+0.1%FS
Power
The range of
0-20W
Resolution
2mW
The range of
200W
Resolution
20mW
The range of
0-1500W
Resolution
150mW
Precision
0.3%+0.3%FS
Automatic testing
Step
100/Program
Time
0.1m-30s(Resolution:0.1ms)
Load setting
参考Static mode
File reference
Voltage / Current / Power
External waveform (20kHZ)- Constant current模式
Current
0-2A
0-20A
0-200A
Level
0-10V
Precision
0.5%F.S.
Protection function
TooPower保护
(OPP)
√
TooCurrent保护
(OCP)
√
TooVoltage保护
(OVP)
√
Too Temperature protection
(OTP)
√
Reverse pressure alarm ( REV ）
√
Undervoltage protection ( UVP ）
√
Other functions
Current监测
√
Short-circuit function
定Current (CC)
CurrentThe range of
定Voltage (CV)
VoltageThe range of
Constant resistance (CR)
0.015 Ω To 4k Ω

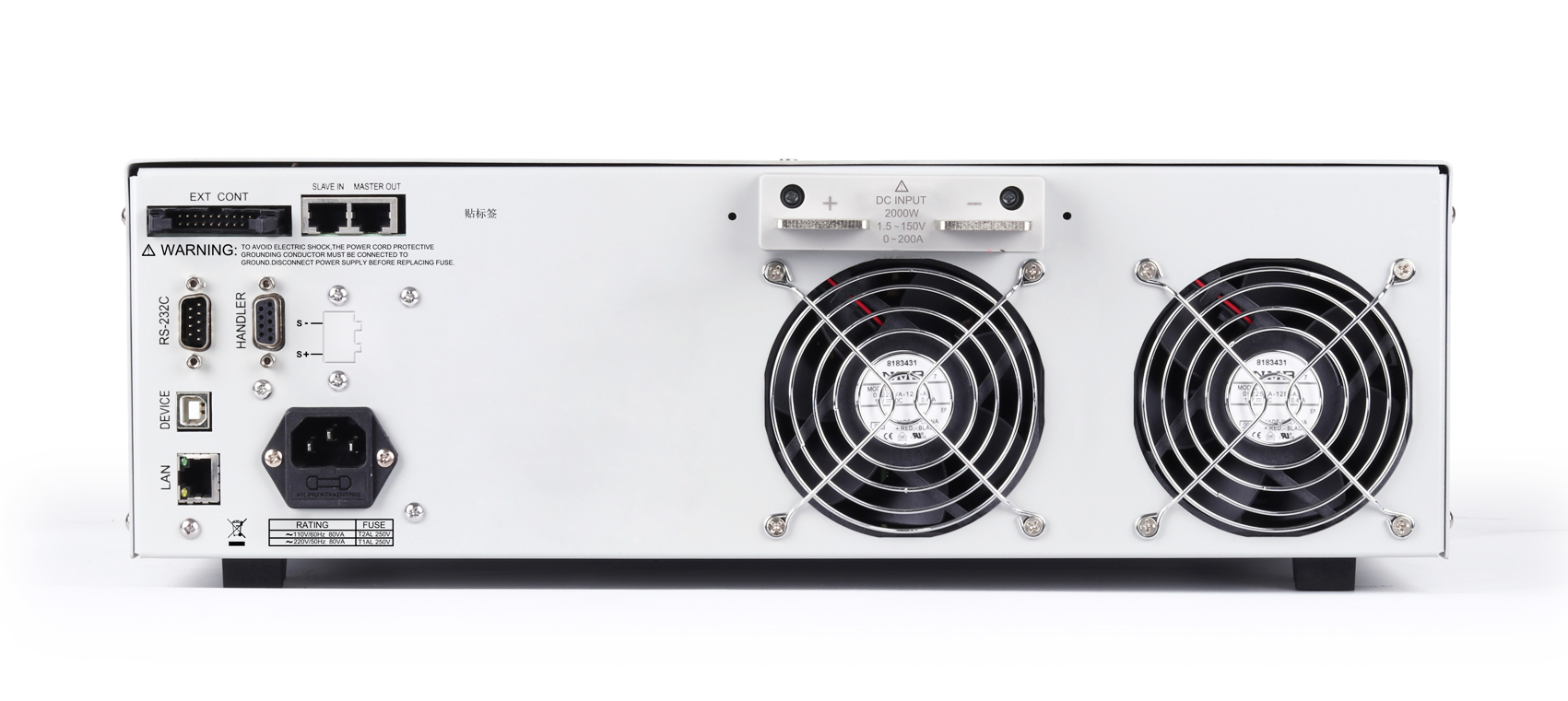

Interface
Network port
√
Handler Mouth
√
USB Host
√
USB Device
√
并联Interface
√
Power supply and safety
Power supply Power
110/220VAC
市电Frequency
50/60Hz
Security authentication
CE
Environment and temperature
Operating temperature
0-40 ℃
Storage temperature
-20-80 ° C
Size and weight
Size (mm)
430*129*479mm
The weight of (kg)
20kg
