Product Description:
JK-16U multichannel temperature tester equipped with large screen LCD screen,U disk save interface, can be convenient to measure disy and save temperature data, is a kind of real-time monitoring and tracking instrument suitable for multiple points
The use of high voltage semiconductor relay as a switching input signal scanning, to achieve high speed scanning, eliminate the noise and service life of the traditional relay
Technical characteristics:
The upper and lower limit temperature of each channel can be set. Large screen liquid crystal disy, can disy multiple temperature values at the same time with U disk interface, insert U disk can store mass temperature record data Special needle
Inspection of multi-point temperature field by manufacturers and quality inspection departments of lamps, household appliances, motors, electric heating appliances, temperature controllers, transformers, heat protectors and other industries. Energy-saving lamp, triode inside electronic ballast,
Choke, magnetic ring, capacitor and other components of the temperature at the same time live monitoring, by the computer will be the whole temperature change process all recorded in curve way, easy to analyze, improve, to improve the energy-saving lamp, electronic
The reliability of the ballast ys an important role
The difference between 3 multichannel temperature tester:
Model number |
JK-8U |
JK-8A |
JK-8C |
|
Input type |
Sensor: Nichcr - Nichsi (K type) thermocouple (T type,J type can be specially made) |
|||
Measuring range |
1, temperature range: -100℃ ~ 1000℃;
|
|||
Number of channels 8 |
8路 16路 24路 Route 32 40路 48路64路 |
|||
Show |
LCD 240*128 lattice screen |
|||
单屏多Show |
Route 32 |
|
||
U disk storage |
There is |
None |
There is |
|
Live test |
< 300V DC |
|||
Internal storage |
There is |
None |
There is |
|
Alarm mode |
The numbers flicker |
|||
Dry winding resistance |
Resist high frequency interference |
|||

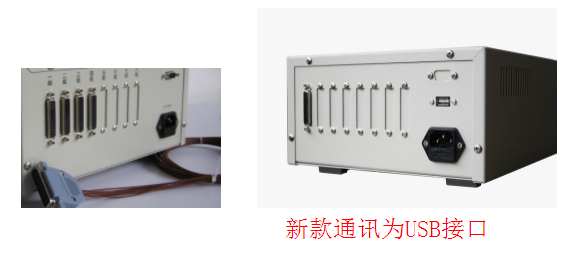

Communication interface |
USB |
RS232 |
||
Supporting software |
2014 edition (latest) |
2000 edition |
||
Allow environmental conditions |
1, power supply: AC 220V±10percent,50Hz±2percent;
3、热电偶相互之间电位差：＜350V（真There is效值） |
|||
Overall dimensions |
(W * H * D)248*128*305mm Machine weight: about 5kg |
|||
Instrument accessories :

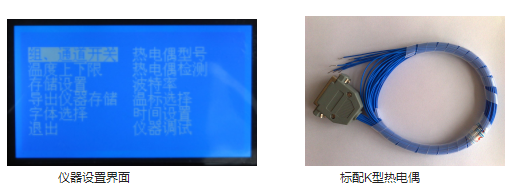

1, K type thermocouple (skin resistance 200 degrees) 2, computer software installation CD 3, warranty card, certificate 4,RS232 cable 5,RS232 to USB to interface 6,4G U disk
Note:
①表中的T J K为探头的Model number,温度范围分别为 T：-100到+400度J：-50到+750度 K：0到+1200度
②曲线：指仪器不要软件在液晶屏幕中实时Show温度曲线并储存在仪器内部,可以通过Communication interface将曲线保存在电脑中.
③数据：指仪器不要软件将温度值以序号、路数、采集时间及对应的温度值储存在仪器中,可以通过Communication interface将数据保存在电脑中.
仪器出厂每路均配There is2米长的测温导线,如需加长则按10元/米计算！配的是T型线
