Technical parameters
Model number

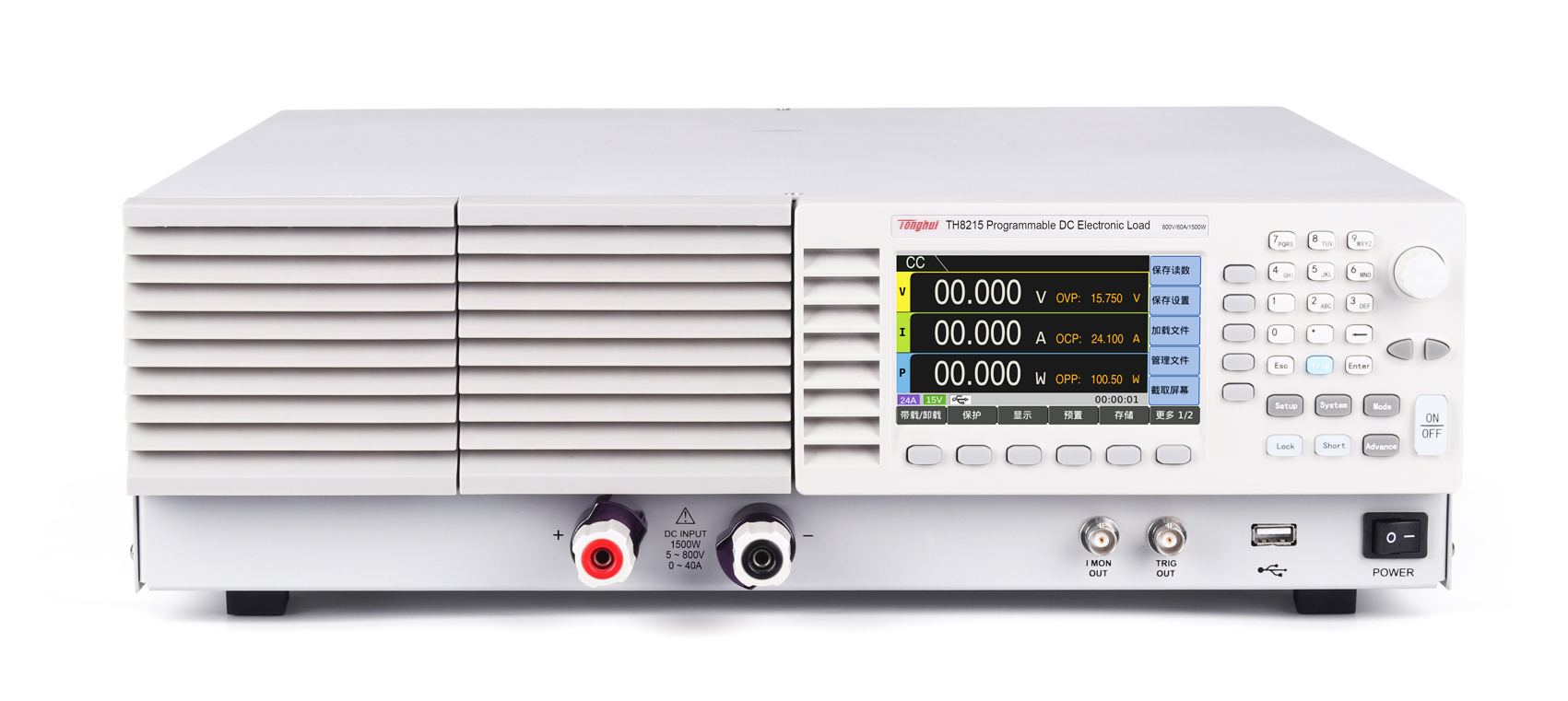

TH8215
Input power
1200W
Input voltage
10-800V
Input current
60A
Static mode
Constant current ( CC ), constant resistance ( CR ), constant voltage ( CV ), constant power ( CP)
Minimum operating voltage
10V@0.6A
10V@6A
10V@60A
Constant voltage
（ CV ）
The range of
0-80V
Resolution
5mV
The range of
0-800V
Resolution
50mV
Precision
0.05%+0.05%FS
Constant current
（ CC ）
The range of
0-0.6A
Resolution
0.02mA
The range of
0-6A
Resolution
0.2mA
The range of
0-60A
Resolution
2mA
Precision
0.1%+0.1%FS
Constant resistance
（ CR ）
The range of
0.15 Ω -1.5k Ω
The range of
0.6 Ω -6k Ω
The range of
15 Ω -60k Ω
Resolution
Precision
Vin/Rset*0.2%+0.2%FS
Constant power
（ CP)
The range of
0-12W
Resolution
1.2mW
The range of
0-120W
Resolution
12mW
The range of
0-1200W
Resolution
120mW
Precision
0.3%+0.3%FS
V on &V off Control
V on &V off
CC/CR/CP
Precision
0.2%FS
Advanced mode
Dynamic load mode, dynamic frequency scanning, simulation LED Test, battery test, time measurement, maximum power point tracking test, OCPT Test, OVPT Test, OPPT Test,正弦波Test,列表Test,Automatic testing.
Dynamic mode - Constant current mode
Minimum operating voltage
10V
Frequency
The scope of
100Hz-50kHz/0.01Hz-1kHz
Precision
1 μ s/1ms+100ppm
Duty cycle
1-99%( Minimum rise time controlled )
The slope
The range of
0.12A/ms-0.06A/µs
Resolution
0.02mA/µs
The range of
1.2A/ms-0.6A/µs
Resolution
0.2mA/µs
The range of
12A/ms-6A/µs
Resolution
2mA/µs
Precision
10% ± 20µs
Minimum rise time
10µs
Current
The range of
0-0.6A
Resolution
0.02mA
The range of
0-6A
Resolution
0.2mA
The range of
0-60A
Resolution
2mA
Measure (read back)
Voltage
The range of
0-80V
Resolution
5mV
The range of
0-800V
Resolution
50mV
Precision
0.05%+0.05%FS
Current
The range of
0-0.6A
Resolution
0.02mA
The range of
0-6A
Resolution
0.2mA
The range of
0-60A
Resolution
2mA
Precision
0.1%+0.1%FS
Power
The range of
0-12W
Resolution
1.2mW
The range of
0-120W
Resolution
12mW
The range of
0-1200W
Resolution
120mW
Precision
0.3%+0.3%FS
Automatic testing
Step
100/Program
Time
0.1m-30s(Resolution:0.1ms)
Load setting
参考Static mode
File reference
Voltage / Current / Power
External waveform (20kHZ)- Constant current模式
Current
0-0.6A
0-6A
0-60A
Level
0-10V
Precision
0.5%F.S.
Protection function
TooPower保护 (OPP)
√
TooCurrent保护 (OCP)
√
TooVoltage保护 (OVP)
√
Too Temperature protection (OTP)
√
Reverse pressure alarm ( REV ）
√
Undervoltage protection ( UVP ）
√
Other functions
Current监测
√
Short-circuit function
定Current (CC)
CurrentThe range of
定Voltage (CV)
VoltageThe range of
Constant resistance (CR)
0.15 Ω To 60k Ω

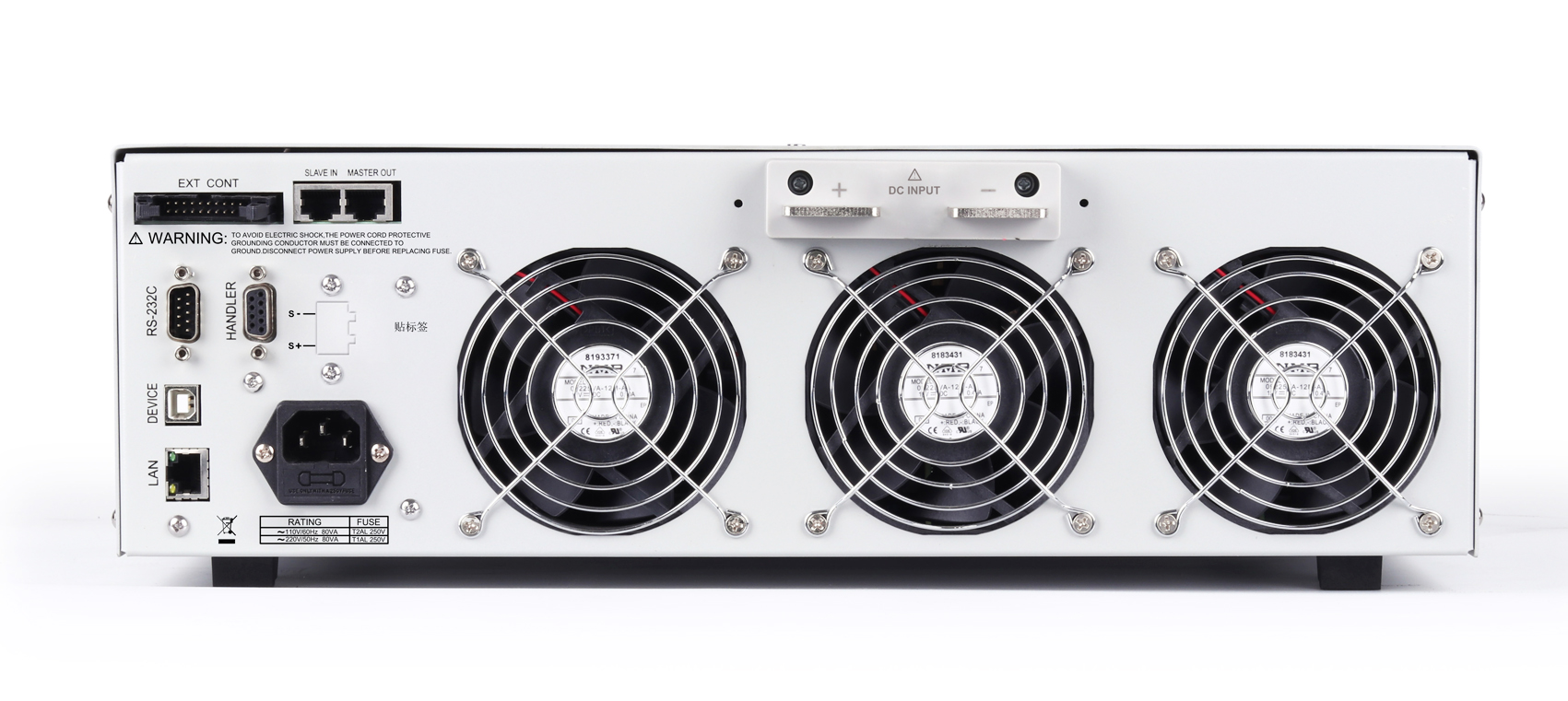

Interface
Network port
√
Handler Mouth
√
USB Host
√
USB Device
√
并联Interface
√
Power supply and safety
Power supply Power
110/220VAC
市电Frequency
50/60Hz
Security authentication
CE
Environment and temperature
Operating temperature
0-40 ℃
Storage temperature
-20-80 ° C
Size and weight
Size (mm)
215*129*479mm
The weight of (kg)
8.7kg-430*129*479mm
