Common rechargeable batteries include lithium batteries, nickel-cadmium batteries, nickel-metal hydride batteries, and sealed lead-acid batteries. Among them, lithium battery has the characteristics of large capacity, light weight and high number of cycles. It is widely used in electric vehicles, power tools and other fields, and is the most advanced rechargeable battery at present. The lithium battery refers to the finished lithium battery pack, which consists of lithium battery (lithium ion battery or polymer battery) and lithium battery protection te. Nickel-cadmium battery is an early application of rechargeable battery, with low cost, low internal resistance, can be high current discharge characteristics, so far in some electric tools, electric vehicles have been widely used

Nickel-metal hydride batteries are similar to nickel-cadmium batteries, but because they do not contain heavy metals, they are less polluting to the environment. At present, they are widely used in some common consumer electronic products, and have basically reced the previous application field of nickel-cadmium batteries. Small sealed lead-acid battery, also known as maintenance-free lead-acid electric he, the current process is mature, is mainly used in fixed backup power supply occasions, such as uninterruptible power supply, emergency lighting and so on

In view of the production and detection needs of these rechargeable batteries, specially developed special rechargeable battery comprehensive detector, the tester can do a quantitative and accurate measurement of some basic parameters of the battery, can measure the battery open circuit voltage, internal resistance, charging, discharge performance, battery capacity, especially for the lithium battery function and charge protection, discharge protection, over current protection, short Road protection and other functions, and measured the corresponding value, greatly convenient battery production and pre-sale after-sales service work, using a very simple few steps can intuitively judge the performance and quality of the battery, but also has a rapid screening function, can set the upper and lower limits of measurement parameters, can easily from a batch of battery products in the rapid detection of bad batteries, improve Productivity. In addition, it also adds some special functions, so that it has some characteristics of general instruments and equipment, expands the flexibility of the use of equipment, and has the characteristics of a wide range of applications

In addition, the tester can provide software upgrade services according to the needs of customers. Based on the basic model, the tester can be upgraded to the model that can be connected to the computer through the software. The test data can be set and saved through the computer and the test results can be automatically recorded. In addition, the test accuracy of voltage and internal resistance can be increased by an order of magnitude by installing hardware upgrade module to meet more demanding quality requirements

Battery performance comprehensive tester can test walkie-talkie battery, mobile phone battery and other classes within 10V20A lithium ion battery, nickel metal hydride battery, polymer battery (group), such as:,MP3/4 battery, digital battery, double string battery pack, mobile phone battery, etc.; This detection equipment is widely used in walkie-talkie battery, mobile phone battery, digital battery and other battery manufacturers; Can meet the manufacturers of high, medium, low - grade battery production detection. The detection time of a battery should not exceed 1 second; High speed, full function, high precision; It is the most accurate instrument on the market at present

Widely used in walkie-talkie battery, mobile phone battery, digital battery and other types of battery manufacturers; Can meet the manufacturers of high, medium, low - grade battery production detection. The detection time of a battery should not exceed 1 second; High speed, full function, high precision; It is one of the most accurate instruments on the market. For the production and detection needs of rechargeable batteries, Hongda special developed a special rechargeable battery comprehensive detector, which can do a quantitative and accurate measurement of some basic parameters of the battery, can measure the open circuit voltage, internal resistance, charging, discharging performance, battery capacity, especially for the function of lithium batteries and over charge protection, over discharge protection, over current protection, short circuit protection and other work Can, and measured the corresponding value, greatly convenient battery production and pre-sale after-sales service work, using a very simple few steps can intuitively judge the performance and quality of the battery, but also has the rapid screening function, can set the upper limit and lower limit of measurement parameters, can easily from a batch of battery products quickly detected bad battery, improve the production efficiency

1. Static parameter testing

2. Battery capacity test

3. Separate battery charging function

4. Battery separate discharge function

5. Programmable DC power supply

6. Programmed electronic load

7. Measurement of voltage and internal resistance

The basic functions of JK5530C battery comprehensive tester include:

1. Fast detection of battery static parameters.

1.1 Battery voltage detection (For lithium batteries in the protected state, it can wake up)

1.2 Battery Internal Resistance Detection

1.3 Battery Rechargeable Performance Test

1.4 Battery Discharge Performance Test

1.5 Battery overcurrent Detection (only for lithium batteries)

1.6 Detection of Battery Short-circuit Protection (Only for lithium batteries)

The upper limit and lower limit can be set respectively for the parts above 1.7 whose value can be detected to be quickly screened

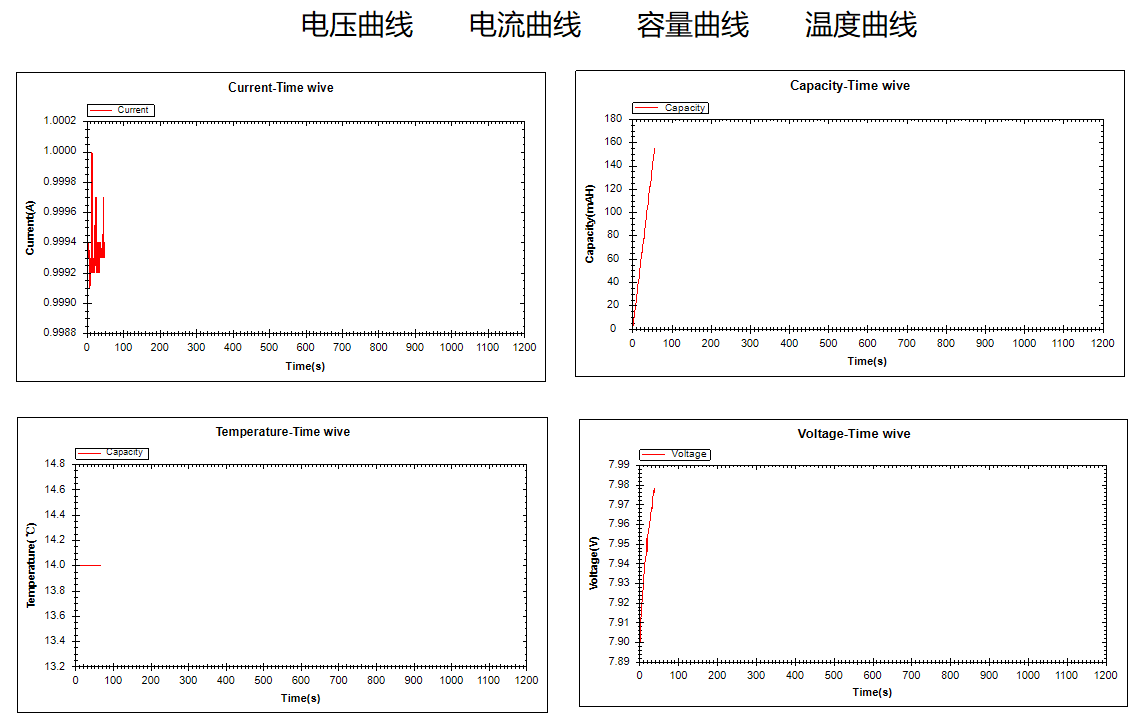

2. Battery capacity detection.

For the selected battery type and the number of battery series and battery capacity, automatically select the most appropriate voltage and current, a complete charging and discharge test, in the discharge process, calculate the real capacity of the battery, to provide a strong reference basis for the battery performance discrimination

3. Optional battery charging function.

Select this function, the tester can be used as a multi-functional intelligent charger, for various types of various combinations of rechargeable battery pack charging (JK5530 can at most of the series of lithium battery, nickel metal hydride battery, maintenance free battery for fast charging), greatly convenient battery use and testing convenience, at the same time, real-time disy charging time, and has been charged into the power (mAH as a unit of disy)

4. Selectable battery discharge function.

Select this function, the tester can separate a battery for discharge, at the same time control discharge cutoff voltage, to avoid the usual use of electronic load or resistance discharge brought about by the shortcomings of easy discharge, very convenient for the factory to test battery products, the operation is also very convenient, only need to select the battery type, voltage and capacity can start intelligent discharge procedures, safe The battery is discharged.

5. Nc current and voltage source function.

Select this function, the instrument can be used as a precision CNC DC power supply, the maximum output of 60V maximum output of 10A DC power supply, can directly set the output voltage and limit current, can be very convenient to be used in special battery charging, testing, and to other equipment power supply function, expand the scope of application of the instrument

6. CNC electronic load function.

Select this function, the instrument can be used as a precision electronic load, can set work in constant current mode operation, can also set cut-off voltage (cut off), in order to facilitate the battery discharge measurement, can make the load voltage is lower than the cut-off voltage, automatically cut off the working current, avoid battery deep discharge damage to the battery. In addition, this instrument can also be used for other occasions requiring electronic load, such as charger test, switching power supply aging test and so on

7. Voltage and internal resistance meter function

Select this function, the instrument can be used as an ordinary 3-digit half-digital voltmeter and digital milliohm meter, can continuously indicate the input voltage and the internal resistance of the battery, can directly rece the special internal resistance meter used for rapid battery screening and detection

8. Instrument calibration function

Select this function, you can not open the case, the instrument calibration processing, in order to maintain a higher measurement accuracy at any time, can be calibrated items including: voltage measurement, internal resistance measurement, charging current measurement, discharge current measurement and so on, this function selection needs to enter the calibration password, to avoid irrelevant personnel misoperation

Measuring items: voltage, internal resistance, overcurrent, short circuit protection time, capacity load (CC,CV,CP) charging can be set charging time, with list function (free to choose test items) and other functions

Model number		JK5530 C	JK5530L
Test range	Voltage measurement range	0-60V resolution 1mV accuracy: ±0.5mV
	Measuring range of internal resistance	0-1999mΩ resolution 1mΩ
	Capacity measurement range	0-10000mAH, minimum resolution 1mAH
Measurement accuracy	电压Measurement accuracy	± (Result *0.1percent 3mV) (voltage 0~36V) ± (Result *0.1percent 30mV) (voltage 37~60V)
	电流Measurement accuracy	± (Result *0.2percent 30mA) (current 0~10A) ± (Result *0.5percent 30mA) (current 11~30A)
	内阻Measurement accuracy	± (Result *1percent 1mΩ)
	电池容量Measurement accuracy	100AH：±2%
Test the speed	Static testing (testing all functionality)	3 ~ 5 seconds
	Capacity test (1C current charge and discharge)	3 ~ 4 hours
Internal numerical control	Maximum output voltage	30V	30V (30V above custom)
Voltage source indicator	Maximum output current	10A	20A
	Output maximum power	100W	600W
	Ripple voltage	﹤20mV
	Load adjustment rate	﹤10%
	Response time (0 to maximum output voltage)	2s
Internal numerical control电子负载指标	Maximum discharge voltage	60 V	75V 120V (upgrade version)
	Discharge current	50A (continuous) 800W Rack type: load power 500W Desktop: load power 800W	60A (continuous) 100A (upgrade version) Load power 1800W
	First order overdischarge current	60A (10s) Limit load work 1000W	120A(20s) Ultimate power 3600W
	Secondary overdischarge current		160A(2s) Ultimate power 3600W
	Ultimate power	800W (continuous)	1800W (continuous)
	Supply voltage	220V± 10% 50Hz
U disk upgrade	There is
Communication interface	There is（带上位机软件）
Attachment	Kelvin test line, test probe
Size and weight	Dimensions (mm) : 380 (W) * 185 (H) * 430 (D) about 20kg (JK5530C) desktop Dimensions (mm) : 430 (W) * 88 (H) * 430 (D) about 20kg (JK5530C) rack type Dimensions (mm) : 518 (W) *268 (H) * 388 (D) about 26kg(JK5530L) table
