Product application:
适用于光伏产品、家用电器、医疗设备视听设备 IT Equipment Transformers and motor transformers for television equipment.
性能特点:
■ Voltage resistance, insulation and ground automatic conversion test mode ■ 具有电弧侦测功能（按1-9 Level)
■ The voltage rises in time gradient, and the breakdown point can be analyzed ■ 3 Group tests memory patterns

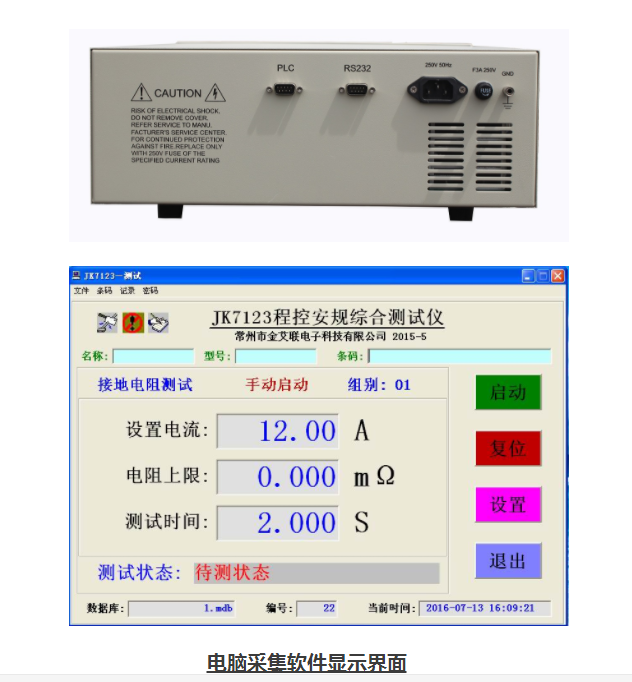

■ Current, resistance upper and lower limit Settings ■ 可选配RS232C Interface和PLC Interface
Voltage resistance test |
|
|
||
AC |
Output voltage range |
0.1kV-5kV |
||
Voltage setting step value |
10V |
|||
Voltage accuracy |
3% |
|||
Voltage frequency |
50Hz\60Hz Optional |
|||
Maximum output current |
20mA |
|||
Current setting |
0.01mA-20mA |
|||
Current resolution |
0.01mA |
|||
Current accuracy |
3% |
|||
DC |
Output voltage range |
0.1kV-6kV |
||
Voltage resolution |
10V |
|||
Voltage accuracy |
3% |
|||
Maximum output current |
10mA |
|||
Current setting |
0.01mA-10mA |
|||
Current resolution |
0.01mA |
|||
Current accuracy |
3% |
|||
Insulation resistance test |
||||
IR |
Voltage measurement range |
500V-1000V DC |
||
Voltage resolution |
100V |
|||
Voltage accuracy |
± (3percent) Reading 3V |
|||
Resistance measurement range |
1MΩ-2000MΩ |
|||
Accuracy of resistance measurement |
10% |
|||
Upper resistance setting |
1MΩ-2000MΩ |
|||
Resistance lower limit setting |
1MΩ-2000MΩ |
|||
Ground resistance test (photovoltaic industry can be changed to DC ground resistance test) |
||||
GR |
Voltage frequency |
50Hz,60Hz可选 |
||
Output current range |
3A-30A AC |
|||
Current resolution |
0.01A |
|||
Current accuracy |
3% |
|||
Current measurement range |
1MΩ-300MΩ |
|||
Resistance disy resolution |
1MΩ |
|||
Accuracy of resistance measurement |
3% |
|||
Resistance setting range |
1MΩ-300MΩ(3-10A) 1MΩ-150MΩ(10-30A) |
|||
