An industrial-grade wireless data transmission terminal for the Internet of Things
WiFi Data transmission
Wide voltage power supply +8V~+28V DC
Data rate: 300~115200bps （ 115200bps By default)
Three serial digital interfaces: TTL/RS232/RS485
USB Communication port configuration, simple and easy
Parameters and functional characteristics
Wide voltage input |
单电源供电范围+8V ～+28V DC ; |
Data rate |
300～115200bps （115200bps By default) |
Serial port cache |
10 KB |
WIFI connection distance |
Within 20m (Good effect, the distance depends on the actual router) |
Power consumption |
通讯时平均电流：80 ～120 ma @+12V; 空闲时平均电流：25ma @+12V |
Operating temperature |
-20～70 ℃; |
Antenna connector |
2.4G SMA-K (Yin head); |

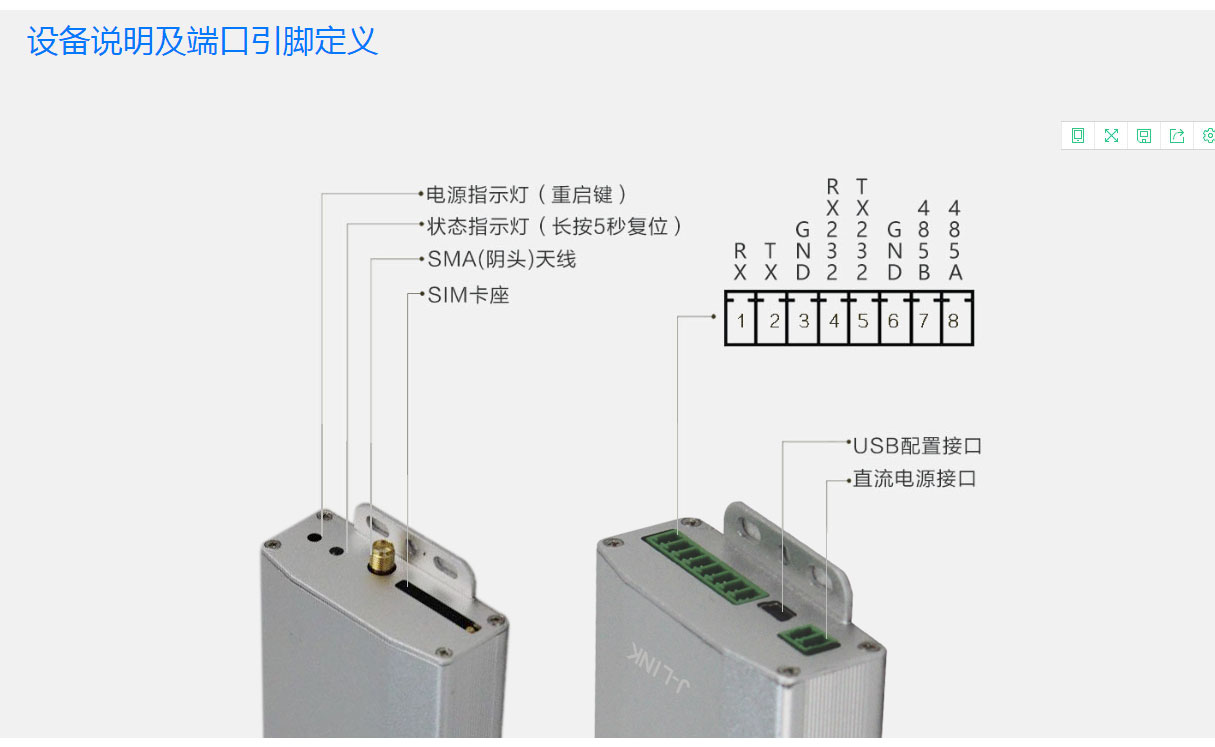

Serial data interface |
TTL/RS232/RS485 |
Overall dimensions |
103mm*64mm*25mm |
Functional features |
稳定可靠,组网简单、灵活,Data transmission延时一般小于1s
|
