简要介绍:

981x系列脉冲式线圈测试仪采用高稳定性高压冲击电源和可控硅模块控制的高压开关器件,大幅提高产品的稳定性和可靠性;采用的32位高性能处理器和高速FPGA,提供100Msps采样率和6500字节存储深度,使测试更加;专有的高速测试技术,测试速度可达15次/秒.

性能特点:

■ 65k色7寸 TFT高清显示屏,中英文可选操作界面
■ 100Msps waveform sampling rate,6500bytes storage depth
■ High speed test, up to 15 times/second
■ Four methods of waveform comparison: area, area difference, corona and phase difference
■ Powerful corona analysis and extraction function (a variety of corona modes and corona disy function), excavating potential insulation problems
■ Excellent test repeatability to ensure test stability
■ Automatic saving of instrument parameters, boot file loading function
■ Waveform vertical amplification, horizontal zooming and moving function, easy to observe the details
■ Sample averaging function, up to 32 times of average processing of standard waveform
■ Automatic standard collection mode, automatically select the appropriate sampling rate
■ Destructive test for you to select the appropriate test voltage
■ Fast test mode, real-time change pulse voltage and sampling rate
■ Degaussing pulse is applied to ensure the test waveform is consistent
■ 20000 pieces of historical measurement data preservation and discrimination statistics function, and can be stored in the U disk
■ The SAVE button directly saves the screen image (BMP,GIF,PNG) or waveform data (CSV) on the USB disk
■ Support USB flash drive to upgrade system firmware
■ Foot control interface for simple and fast measurement
■ Handler,RS232C,USB Device,USB Host and GPIB (optional)

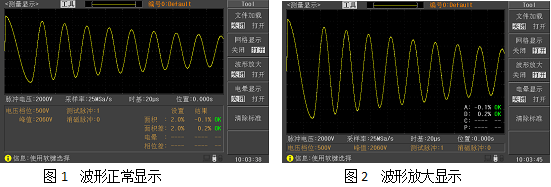

波形放大功能:

波形放大时,能够增加50%显示区域,使波形显示更大更易观察.

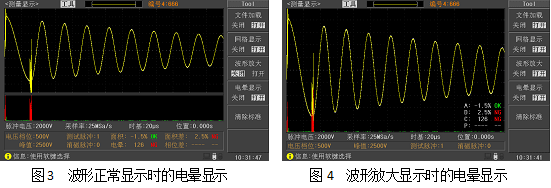

电晕显示功能:

高达100Msps采样率,提取电晕信息,配备电晕显示功能,使电晕信息一目了然,对产品性能做到防患于未然.
