Technical parameters
Dc voltage Resolution Precision |
DC 0.0V～1000V ±1.5%rdg±3dgt 0.1V |
Ac voltage Resolution Precision |
AC 0.0V～750V ±1.5%rdg±3dgt 0.1v |
| Function | Insulation resistance test, voltage test |
Base condition |
23℃±5℃,75percentrh below |
Rated voltage (V) |
250;500;1000;2500;5000V;10KV |
Measure the voltage (V) |
Rated voltage x (1±10percent) |
| Insulation resistance range (GΩ) | 0.01MΩ～3000GΩ Resolution: 0.01MΩ |
| Ω A synchronous disy | 0～1000V Resolution: 0.1V |
Ac voltage量程 |
0～750V Resolution: 0.1V |
| Output short-circuit current | ≥5mA(10KV) |
| Power supply | 12.6V充电锂电池 |

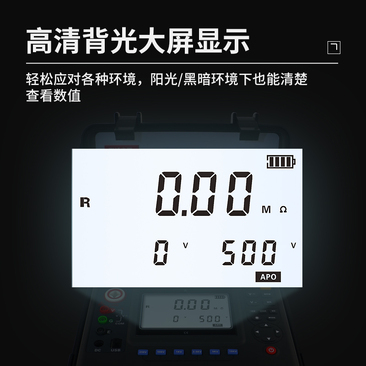

Disy mode |
4 - digit large LCD disy, grey screen backlight |
LCD disy size |
108mm×65mm |
Instrument size |
Length width height: 277.2mm×227.5mm×153mm |

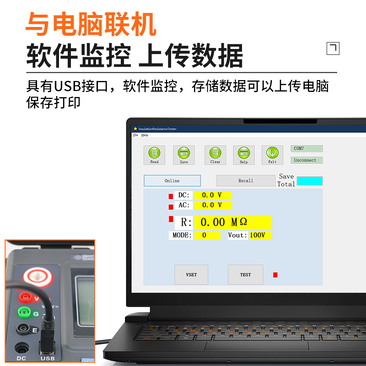

| USB interface | 具有USB interface,软件监控,存储数据可以上传电脑,保存打印 |
| Test line | 高压棒红色3米,高压Test line黑色1.5米,绿线1.5米 |

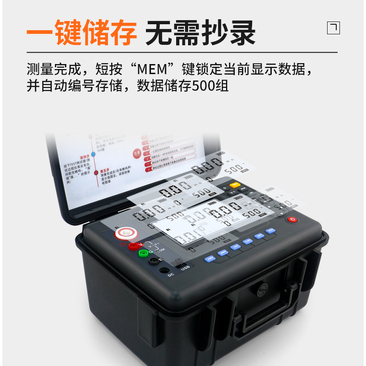

Data storage |
500 groups, flashing the "FULL" symbol indicates that the storage is full |
Data retrieval |
Data retrievalFunction：“MR”符号显示 |
Overflow disy |
量程溢出Function：“OL”符号显示 |
Power consumption |
Standby: 30mA Max On Backlight: 42mA Max Measurement: 300mA Max |
Meter weight |
2750g(including battery) |
Suitable for safety rules |
IEC61010-1、IEC1010-2-31、IEC61557-1,5 IEC60529(IP54), pollution, etc. 2,CAT Ⅲ 300V |
