Technical parameters
Model number

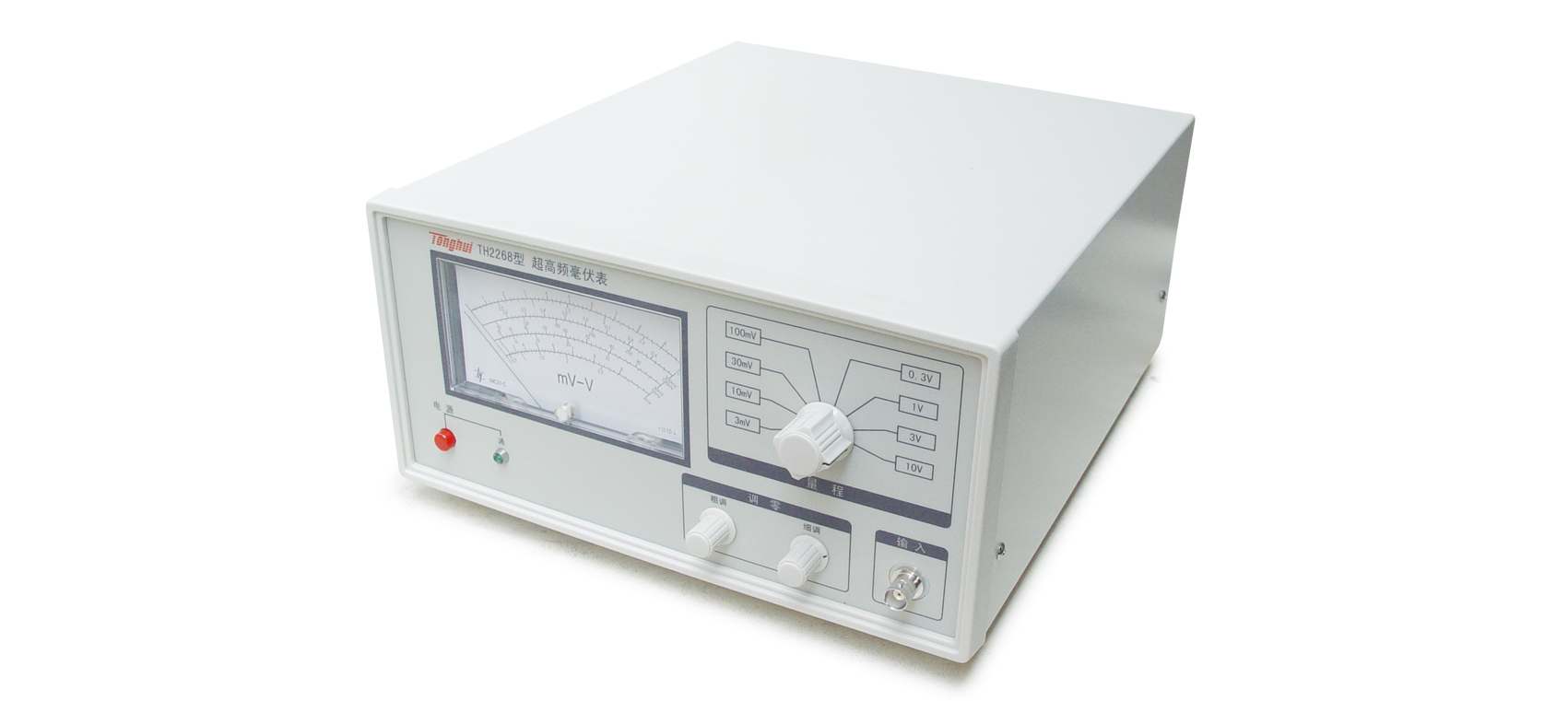

TH2268
Measure voltage and power level, range
3mV,10mV,30mV,100mV,300mV, 1V,3V,10V 8 A range of
Frequency bandwidth
1KHz-1200MHz
Basic accuracy
≤ ±2percent-- on a full scale
Disy mode
Large watch head indicates
Input impedance
High impedance probe ≥100KΩ; Can plug in 50Ω coaxial tee to measure UHF voltage
Overload voltage
AC≤15Vrms, DC≤50V
Frequency response error
1kHz-500MHz≤±4-8%
500MHz-800MHz≤±10%
800MHz-1200MHz≤±15%
Voltage standing wave coefficient
300MHz The following ≤1.15
800MHz The following ≤1.3
1000MHz The following ≤1.35
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Coaxial tee | TH19005 |
|
|
|
|
| 50Ω coaxial load | TH19006 |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
