Technical parameters
Model number

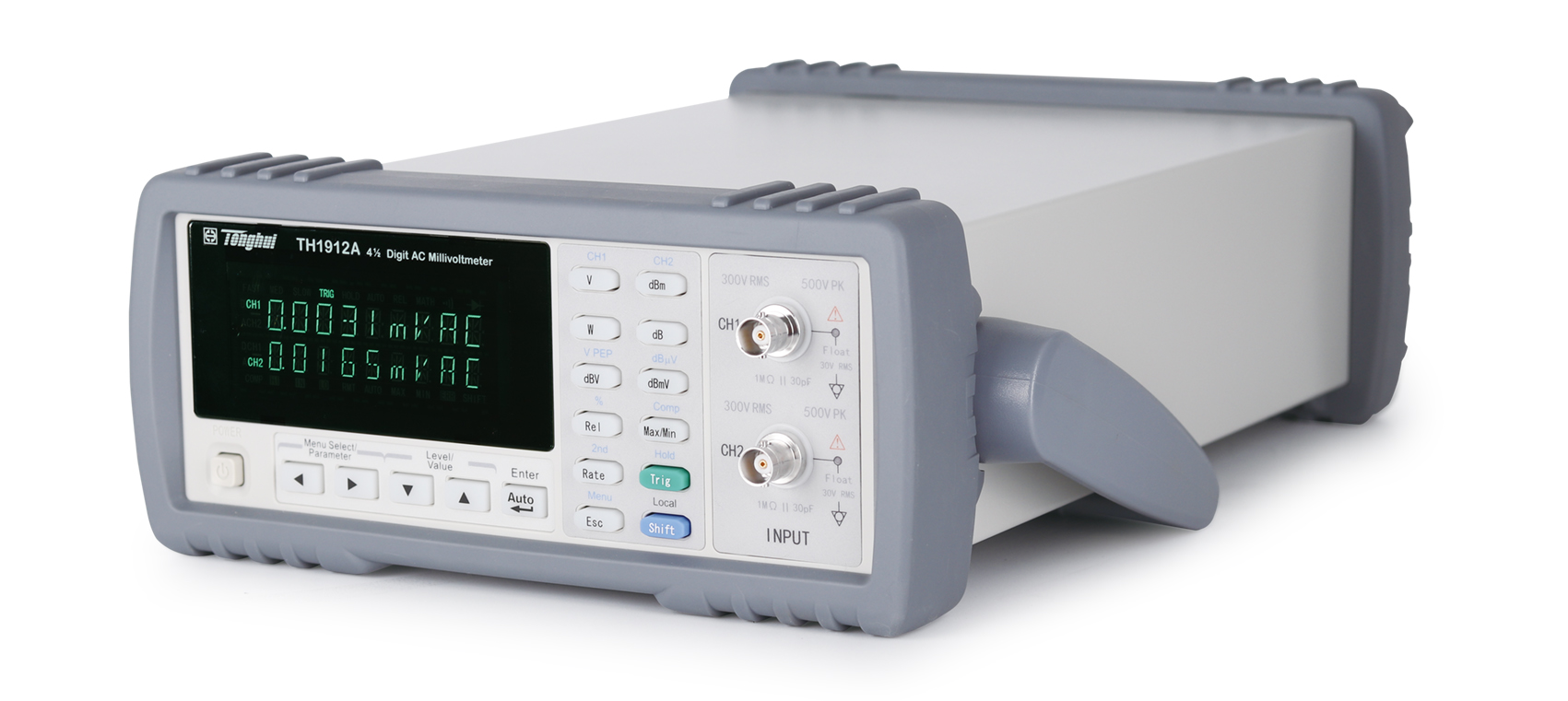

TH1912A
Channel
双Channel
Measuring voltage range
3.8mV,38mV,380mV,3.8V,38V,300V
Voltage measurement range
50μV-300V
Basic accuracy of voltage measurement
Read ±1percent-- of the value
Frequency bandwidth
5Hz-5MHz
Disy mode
4 1/2 Bit VFD, double digit disy
Input impedance
1MΩ 30PF Voltage probe can be switched to 10MΩ
The response error of measuring voltage at different frequencies
5Hz-20Hz
±(4% The reading is 0.5percent full)
20Hz-2MHz
±(2% The reading is 0.5percent full)
2MHz-3MHz
±(3% The reading is 0.5percent full)
3MHz-5MHz
±(4% The reading is 0.5percent full) Interface

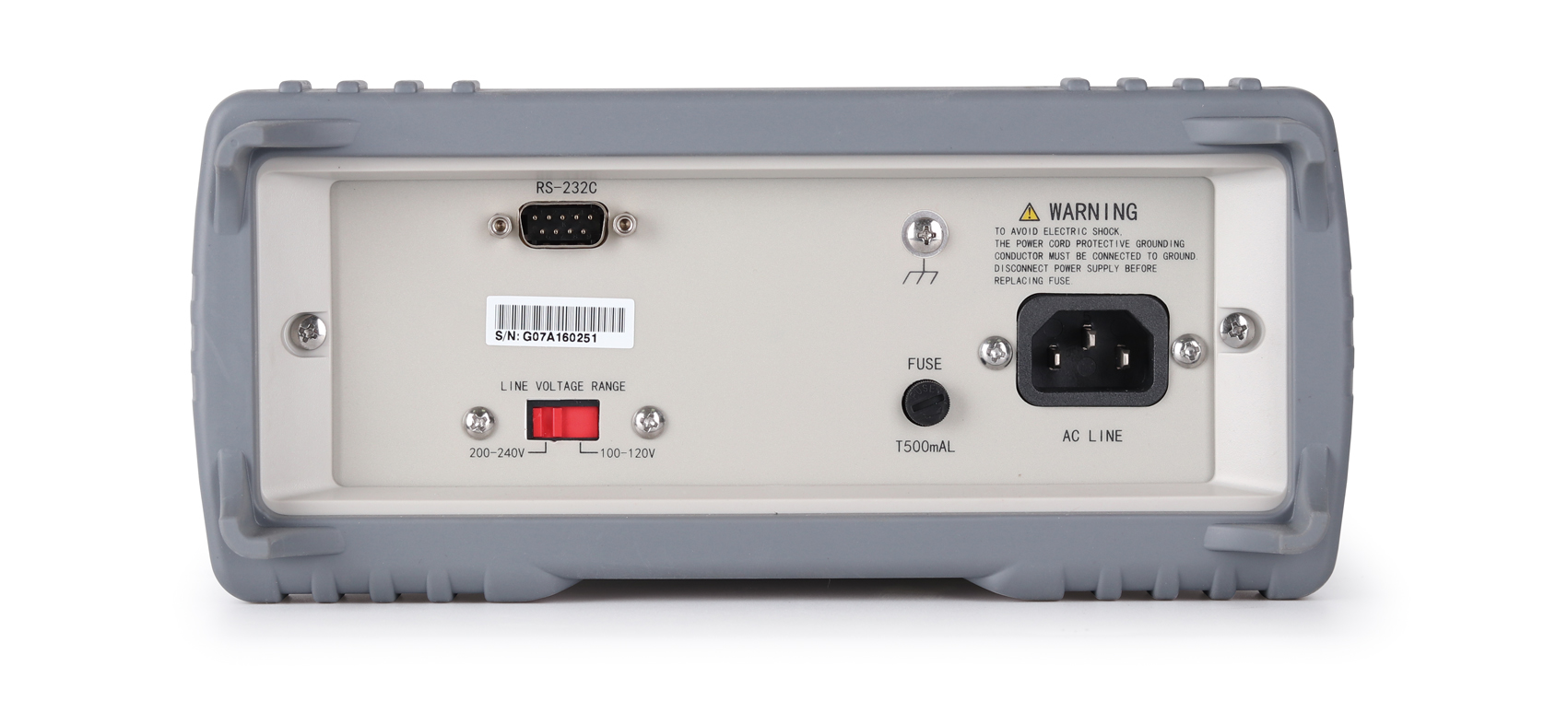

Standard configurationRS232C Interface,SCPI命令编程支持
General technical index
工作温度&湿度
0°C －40°C, ≤ 90%RH
Power requirements
Voltage
99V －121V ,198V－242V
Frequency
47.5Hz －63Hz
Power consumption
≤ 20 VA
Volume (mm)
277(W)×115(H)×365(D)
The weight of
2.6kg
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| TH1912/A （BNC-C-J5/BNC-J5-1M） | TH19001 |
|
|
|
|
| Probe 40M (insulation BNC) | TH19002 |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
