Technical parameters
Product model
TL3300
TL3301
TL3302
TL3310
TL3320
Classification
Basic type
Low current type
Harmonic analysis type
Ac-dc type
Six level energy efficiency type
接线方式
Single-phase
Disy mode
LED Digital screen
Measuring items
Voltage V , current A Active power W , power factor PF 、 Frequency Hz
Voltage V , current A 、 There is Work Work率 W , power factor PF 、Frequency Hz 、 2-50 Times Harmonics
Voltage V , current A Active power W , power factor PF 、 Frequency Hz
Form of measurement
真There is效值 Trms
Voltage量程
AC
3V ～ 600V 峰值Voltage： 700V
5V ～ 600V 峰值Voltage： 700V
DC
------
5V ～ 600V 峰值Voltage： 700V
------
Current range
AC
5mA ～ 20A Peak current: 26A
0.5mA ～ 40A Peak current: 52A
5mA ～ 20A Peak current: 26A
10mA ～ 20A Peak current: 26A
0.05mA ～ 5A Peak current: 6.5A
DC
------
10mA ～ 20A Peak current: 26A
------
Work率量程
0.1W —12kW
0.01W —24kW
0.1W —12kW
0.1W —12kW
0.001W —3kW
Work率因素量程
0.001 — 1.000
Frequency量程
45 — 65Hz
Basic accuracy
± (0.4% The reading +0.1% 量程 +1 The word )
Harmonics测试
-------
2 — 50 Times
-------
Measure the speed of
5 Times / Second
Input impedance
≥ 1M Ω （There isVoltage档）

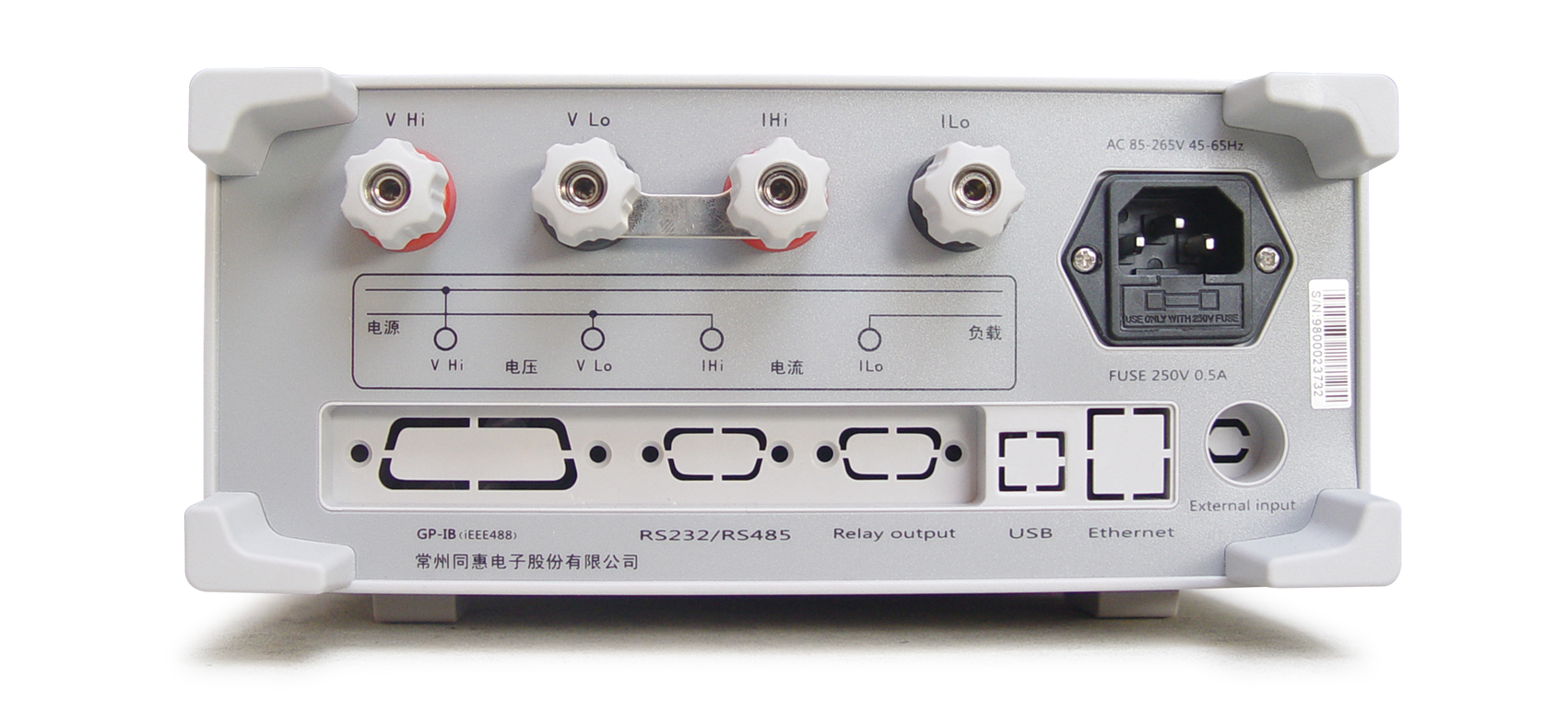

Communication interface
Optional RS232 Or 485 After电器输出Work能
Standard configuration RS232
Optional RS232 Or 485 After 电器输出Work能
Standard configuration RS232 Or 485 Choose 配继电器输出Work能
Attachment
Power cord, warranty card, manual
Power cord, fuse, instructions, software CD, pass Communication line
Power cord, warranty card, manual
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
