Classification

Basic type

Low current type

Harmonic analysis type

Ac-dc type

Six level energy efficiency type

接线方式

Single-phase

Disy mode

LED Digital screen

Measuring items

Voltage V , current A Active power W , power factor PF 、 Frequency Hz

Voltage V , current A 、 There is Work Work率 W , power factor PF 、Frequency Hz 、 2-50 Times Harmonics

Voltage V , current A Active power W , power factor PF 、 Frequency Hz

Form of measurement

真There is效值 Trms

Voltage量程

AC

3V ～ 600V 峰值Voltage： 700V

5V ～ 600V 峰值Voltage： 700V

DC

------

5V ～ 600V 峰值Voltage： 700V

------

Current range

AC

5mA ～ 20A Peak current: 26A

0.5mA ～ 40A Peak current: 52A

5mA ～ 20A Peak current: 26A

10mA ～ 20A Peak current: 26A

0.05mA ～ 5A Peak current: 6.5A

DC

------

10mA ～ 20A Peak current: 26A

------

Work率量程

0.1W —12kW

0.01W —24kW

0.1W —12kW

0.1W —12kW

0.001W —3kW

Work率因素量程

0.001 — 1.000

Frequency量程

45 — 65Hz

Basic accuracy

± (0.4% The reading +0.1% 量程 +1 The word )

Harmonics测试

-------

2 — 50 Times

-------

Measure the speed of

5 Times / Second

Input impedance

≥ 1M Ω （There isVoltage档）

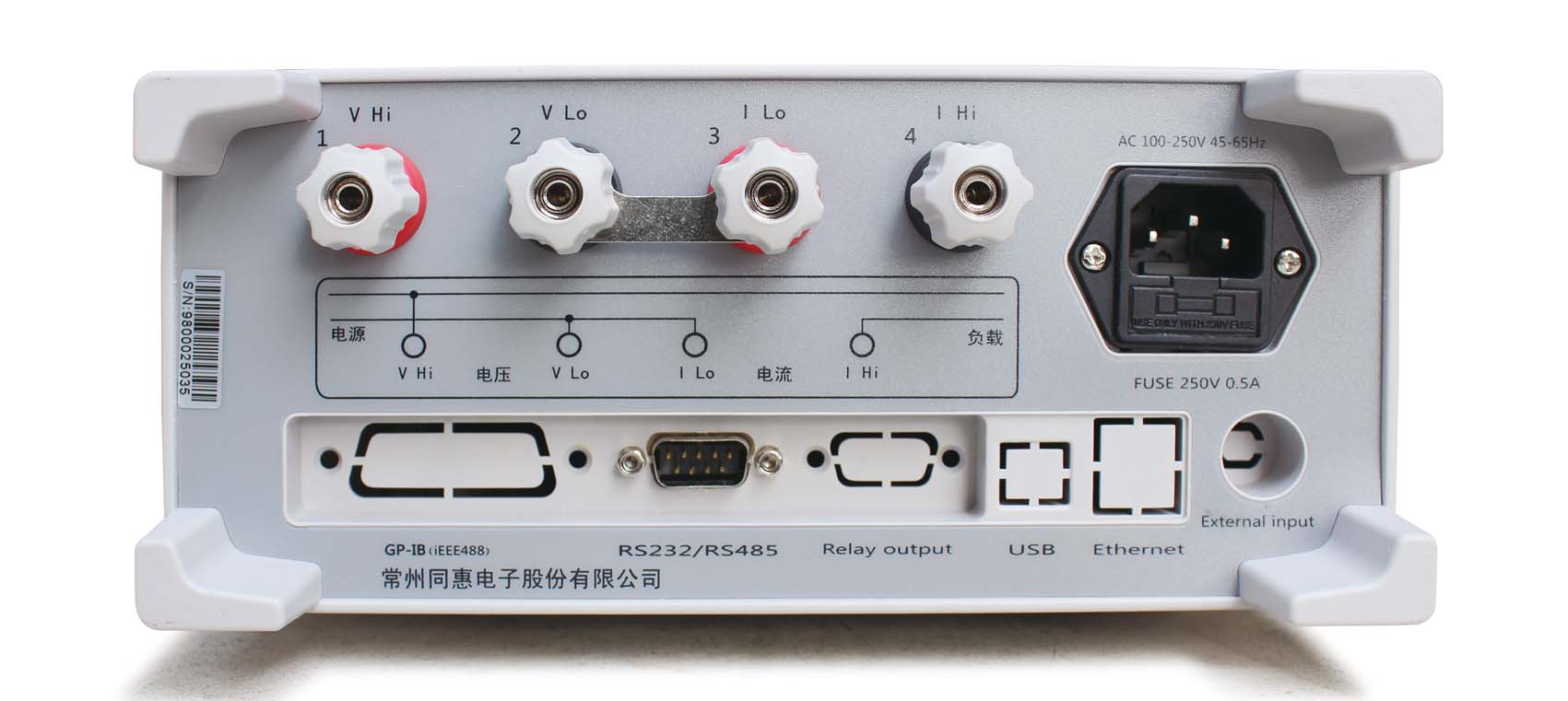

Communication interface

Optional RS232 Or 485 After电器输出Work能

Standard configuration RS232

Optional RS232 Or 485 After 电器输出Work能

Standard configuration RS232 Or 485 Choose 配继电器输出Work能

Attachment

Power cord, warranty card, manual

Power cord, fuse, instructions, software CD, pass Communication line

Power cord, warranty card, manual
