Model:GCP-300/500/1000
Brand:固纬Gwinstek

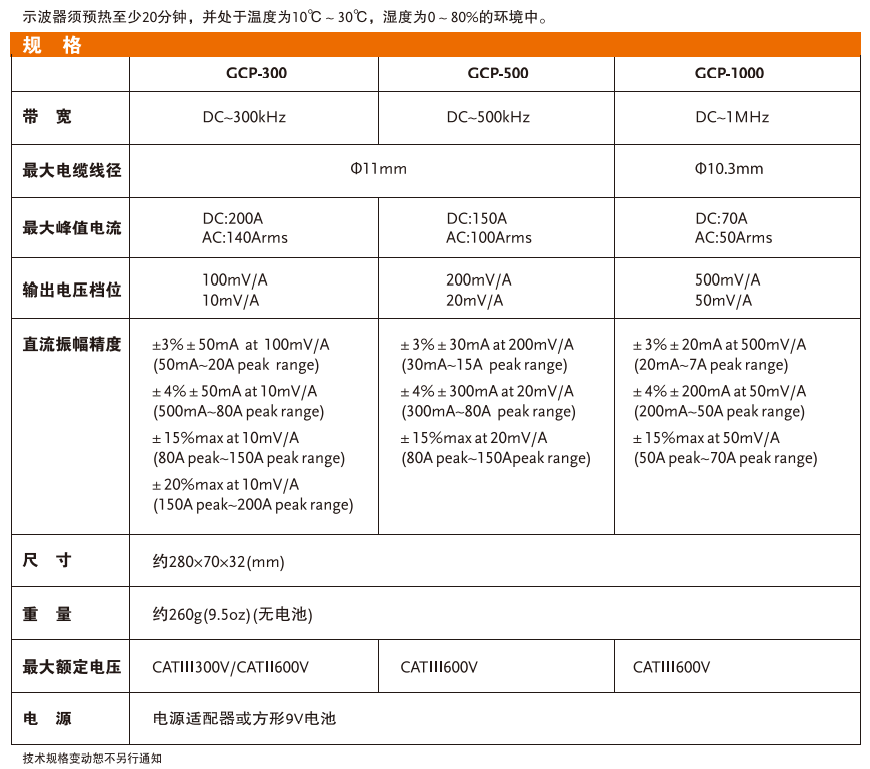

Introduction:Ac/DC current waveform measurement bandwidth 300kHz(GCP-300)/500kHz(GCP-500)/1MHz(GCP-1000) Maximum measurement current 200A(GCP-300)/150A(GCP-500)/70A(GCP-1000) Optional power supply mode suitable for multiple applications (AC adapter or 9V battery)
GCP-300 、GCP-500 和GCP-1000 用于测量直流/ 交流电流波形.GCP-300 的测试频率范围为DC 至300kHz ;GCP-500 为DC 至500kHz ;GCP-1000 为DC 至1MHz .GCP-300 的电流测量范围为50mA 至200A ;GCP-500 的电流测量范围为30mA 至150A ;GCP-1000 的电流测量范围为20mA 至70A .双电源供应设计,不仅可以使用9V Alkaline battery power supply, but also equipped with AC power adapter, direct use of AC power supply
