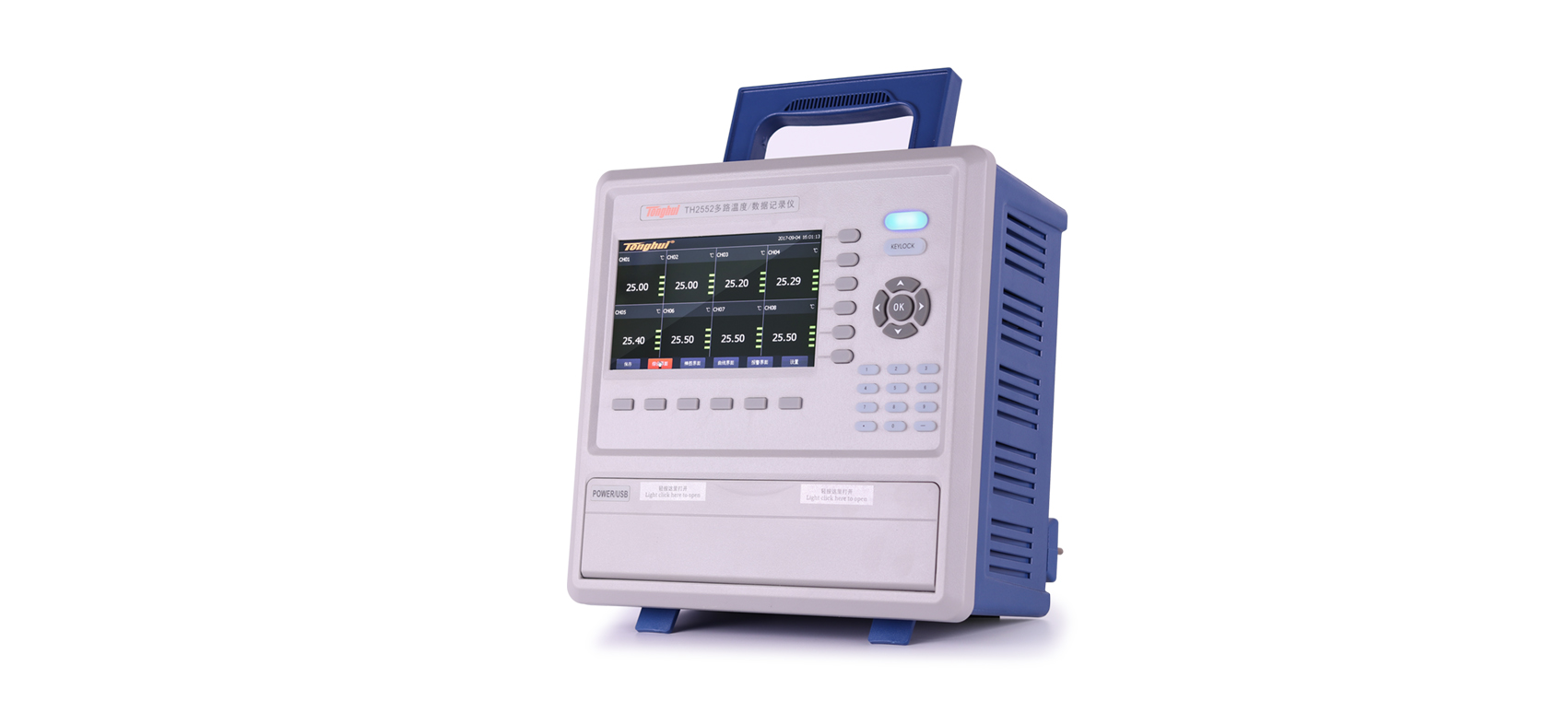

The monitor

7 Inch color touch screen

10.2 Inch color touch screen

Installation structure

Modular

Number of channels

Standard with 8 way / Module (TH25521) At most, support 8 Module ,64 The road

Input signal

Thermocouple

K , E , R , B , N , T , E , J , S , WRE5-26 , WRE3-25

Thermal resistance

PT100 , Cu50

Current

4 — 20mA , 0 — 10mA , 0 — 20mA

Voltage

0 — 5V , 0 — 10V , 1 — 5V

Measurement accuracy

≤± 0.2%F.S

Sampling frequency

1 — 19999s Autonomous setting

Record capacity (64M As the benchmark of )

6 Day (64 Channel, one second interval probability ) 36 Day (64 Channel, one minute interval probability )

Record mode

Loop record

Alarm mode

High and low limit alarm, per channel 4 (upper limit, upper limit, lower limit, lower limit)

Relay

8 The road常开Relay 220VAC/3A( Optional )

Communication

Standard RS232C （可Optional RS485 , USB Communication , Ethernet, and GPRS 无线Communication等）Standard ModBusRTU Communication协议

Power supply

Communication

85V — 265V

Direct current

24VDC ± 10%
