Technical parameters
Parameter
TH6301
TH6302
TH6303
TH6304
TH6312
TH6313
TH6314
TH6323
TH6324
Rated output
Voltage
20V
30V
60V
120V
30V
60V
120V
60V
120V
Current
30A
20A
10A
5A
30A
15A
6A
25A
10A
Power
200W
200W
200W
200W
360W
360W
360W
600W
600W
Load adjustment rate ≤
Voltage
0.01%+20mV
0.01%+25mV
0.01%+10mV
0.01%+20mV
0.01%+20mV
0.01%+30mV
0.01%+8mV
0.01%+30mV
0.01%+25mV
Current
0.01%+20mA
0.01%+ 15mA
0.05%+4mA
0.05%+6mA
0.01%+20mA
0.05%+6mA
0.01%+6mA
0.1%+10mA
0.5%+10mA
Power adjustment rate ≤
Voltage
0.01%+20mV
0.01%+ 20mV
0.01%+10mV
0.01%+20mV
0.01%+20mV
0.01%+30mV
0.01%+8mV
0.01%+30mV
0.01%+25mV
Current
0.01%+20mA
0.01%+ 15mA
0.05%+4mA
0.05%+6mA
0.01%+20mA
0.05%+6mA
0.01%+6mA
0.1%+10mA
0.5%+10mA
Set value resolution
Voltage
1mV( ＜ 100V), 10mV( ＞ 100V)
Current
0.1mA( ＜ 10A), 1mA( ＞ 10A)
Read back value resolution
Voltage
1mV( ＜ 100V), 10mV( ＞ 100V)
Current
0.1mA( ＜ 10A), 1mA( ＞ 10A)
Setting accuracy 12 months (25°C±5°C)≤
Voltage
0.05%+10mV
0.05%+10mV
0.03%+5mV
0.04%+30mV
0.05%+10mV
0.03%+5mV
0.05%+15mV
0.03%+5mV
0.03%+20mV
Current
0.1%+30mA
0.1%+20mA
0.1%+10mA
0.1%+10mA
0.1%+30mA
0.1%+15mA
0.1%+20mA
0.1%+25mA
0.1%+25mA
Rereading accuracy in December (25°C±5°C)≤
Voltage
0.05%+10mV
0.05%+10mV
0.03%+5mV
0.04%+30mV
0.05%+10mV
0.03%+5mV
0.05%+15mV
0.03%+5mV
0.03%+20mV
Current
0.1%+30mA
0.1%+20mA
0.1%+10mA
0.1%+10mA
0.1%+30mA
0.1%+15mA
0.1%+20mA
0.1%+25mA
0.1%+25mA
Ripple and noise (20Hz20MHz) ≤
差模Voltage
≤ 15mVpp
≤ 15mVpp
≤ 8mVp-p
≤ 30mVp-p
≤ 15mVpp
≤ 15mVp-p
≤ 20mVpp
≤ 20mVp-p
≤ 50mVp-p
差模Current
≤ 10mArms
≤ 10mArms
≤ 6mArms
≤ 6mArms
≤ 12mArms
≤ 8mArms
≤ 12mArms
≤ 15mArms
≤ 15mArms
Rise time ≤
10%-90%
≤ 100mS
≤ 100mS
≤ 150mS
≤ 200mS
≤ 100mS
≤ 200mS
≤ 150mS
≤ 150mS
≤ 150mS
Descent time ≤
90%-10%
≤ 2S
≤ 2S
≤ 2S
≤ 3.5S
≤ 2S
≤ 2S
≤ 3.5S
≤ 2S
≤ 3.5S
DVM
Disy precision
0.05%+10mV
0.05%+10mV
0.03%+5mV
0.04%+30mV
0.05%+10mV
0.03%+5mV
0.05%+15mV
0.03%+5mV
0.03%+20mV
Disy resolution
1mV
输入Voltage范围
20V
30V
60V
120V
30V
60V
120V
60V
120V
Storage
10 Group triggers output, each group 100 A step, 100 Group set memory

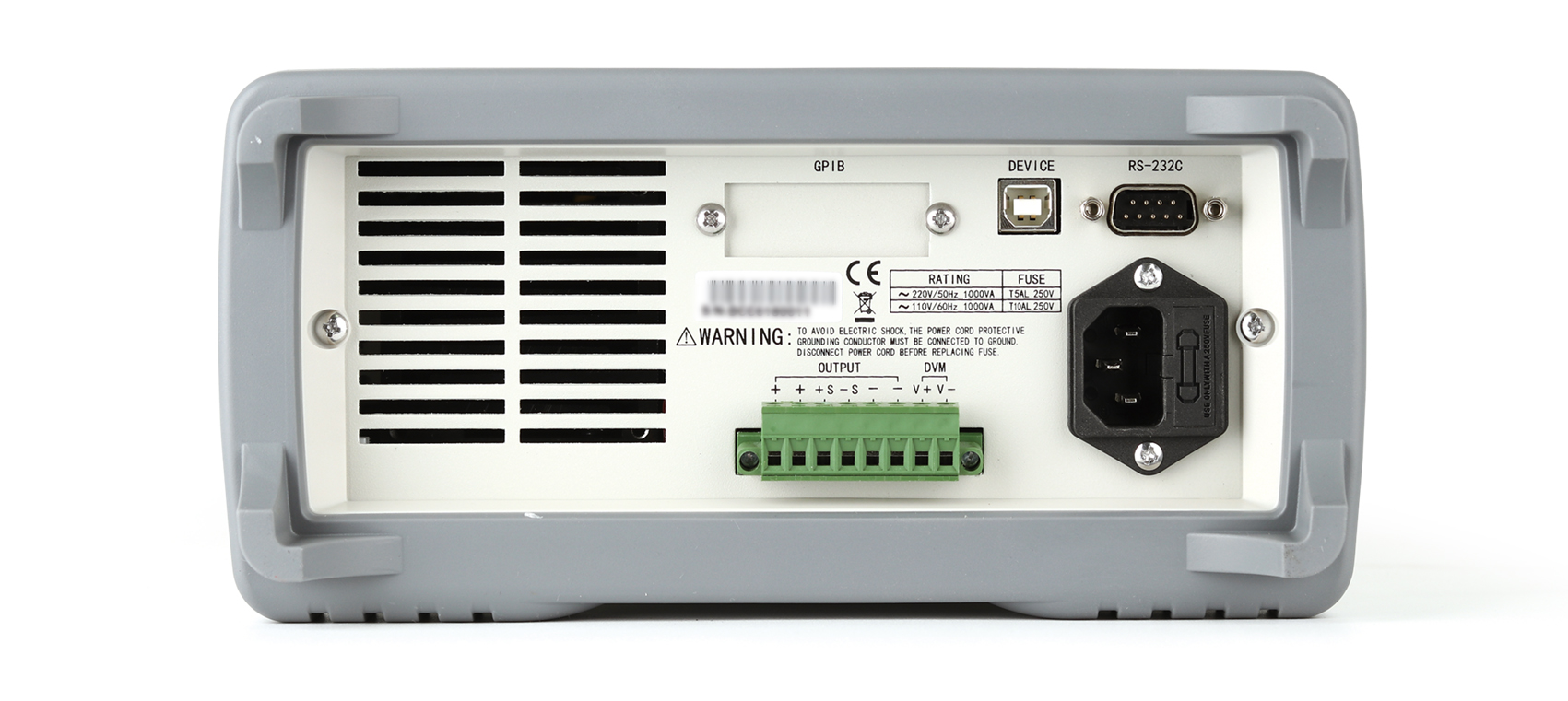

注：当测试端输出Current大于 10A Do not use the test wire with banana plug, please use the tape Y Type or O Cold terminal test line; You can also use the test terminal of the rear panel of the chassis for testing
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Test line at both ends | TH26004C |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
| 大Current测试线缆 | TH26035D |
|
|
|
|
| 大Current测试线缆 | TH26035E |
|
|
|
|
