200VA AC test capacity
Comply with IEC 61010-2-034 safety specification requirements
7" LCD color disy
True RMS Current measurement
Capacitive load test capability up to 47μF
Provide statistical analysis/scanning function
Adjustable rise/fall time
Test data storage function of U disk

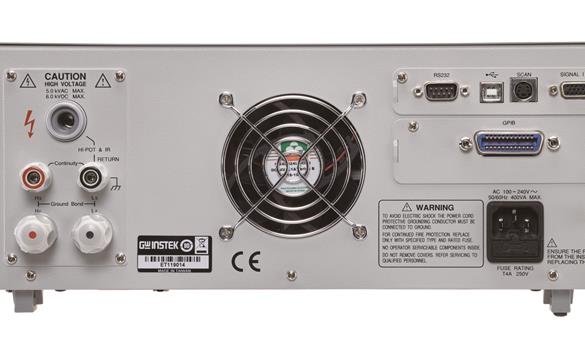

Provides rear panel output
Zero crossing start operation
Ports :RS-232C, USB host/device, Signal I/O, GPIB (Optional)
Rapid selection
| Model number | The main function of | Rear panel output | Capacity | Continuity | Standard interface |
| GPT-12004 | AC/DC/IR/GB | √ | 200VA | √ | USB/RS-232/I/O port |
| GPT-12003 | AC/DC/IR | √ | 200VA | √ | USB/RS-232/I/O port |
| GPT-12002 | AC/DC | √ | 200VA | √ | USB/RS-232/I/O port |
| GPT-12001 | AC | √ | 200VA | √ | USB/RS-232/I/O port |
Detailed specifications
This specification is applicable to GPT-12000 energized at 15℃~35℃ for at least 30 minutes
General information |
|
Show |
7” LCD |
Storage |
Manual mode 100 groups; Automatic mode 100 groups |
Power supply |
AC 100V~240V ± 10%, 50Hz/60Hz |
尺寸& 重量 |
380(宽)× 148(高)× 454(深)毫米/ 15公斤 |
交流耐压测试 |
|||
Output voltage range |
0.050kV~ 5.000kV |
||
Output voltage resolution |
1V |
||
Output voltage accuracy |
±(设定5V的1%)()—— |
||
Maximum rated load (Table1) |
200VA (5kV/40mA)[GPT-12XXX] |
||
Maximum rated current |
40mA[GPT-12XXX] 0.001mA~10mA(0.05k≤V≤0.5kV) 0.001mA~40mA(0.5kV＜V≤5kV) |
||
Output voltage waveform |
Sine wave |
||
Frequency |
50 Hz / 60 Hz |
||
Voltage variation rate |
± (1% +5V)[Maximum rated load--no load] |
||
Accuracy of voltmeter |
± (1% of reading+ 5 V) |
||
Current measurement range |
0.001mA~40.00mA [GPT-12XXX] |
||
Current resolution |
1uA (1uA~9.999mA) 10uA(10.00mA~40.00mA) |
||
Current measurement accuracy |
± (1.5% of reading+30uA) |
||
Accuracy of judgment |
± (3% of setting+30uA) |
||
Upper/lower limit decision function |
Yes |
||
ARC detection |
Yes |
||
Rise time control function |
Yes |
||
It's a RAMP TIME |
0.1~999.9S |
||
Fall time control function |
Yes |
||
RAMP DOWN time |
0.0~999.9S |
||
TIMER (test time)² |
OFF, 0.3S~999.9S |
||
GND |
ON/OFF |
||
WAIT TIME -- Wait time -- Wait time |
0.0~999.9S |
||
1. It takes at least 0.3 seconds to reach the set voltage of 50V/10mA
|
|||
直流耐压测试（适用于GPT-12002/12003/12004) |
|
Output voltage range |
0.050kV~ 6.000kV¹ |
Output voltage resolution |
1V |
Output voltage accuracy |
±(1% of setting +5V) With no load |
Maximum rated load |
50W(5kV/10mA) [GPT-12xxx] |
Maximum rated current |
10mA [GPT-12XXX] 0.001mA~2mA(0.05kV£V£0.5kV) 0.001mA~10mA(0.5kV |
Accuracy of voltmeter |
± (1% of reading+ 5 V) |
电压分辨率 |
± (1% +5V)[Maximum rated load ->no load] |
Current measurement range |
0.001mA-10.00mA |
Current measurement resolution |
0.1uA 0.1uA (0.1uA~999.9uA) 1uA(1uA~9.999mA) 10uA(10.00mA) |
Current measurement accuracy |
±(1.5% of reading+3uA) when I<1mA ±(1.5% of reading+30uA) when I≥1mA |
Accuracy of judgment |
± (3% of setting+30uA) |
Upper/lower limit decision function |
Yes |
ARC detection |
Yes |
Rise time control function |
Yes |
It's a RAMP TIME |
0.1~999.9S |
Fall time control function |
Yes |
RAMP DOWN time |
0.0~999.9S |
TIMER (test time) |
OFF, 0.3S~999.9S |
GND |
ON/OFF |
Wait time |
0.0~999.9S |
Maximum capacitive load DC mode |
1uF |
It takes at least 0.3 seconds to reach the set voltage of 50V/2mA |
|
Insulation resistance test (applicable to 12003/12004) |
|||
Output voltage |
50V-1200V |
||
Output voltage resolution |
50V |
||
Output voltage accuracy |
±(1% of setting +5V) with no load |
||
Resistance measurement range |
0.1MΩ~50GΩ |
||
Test voltage/measuring range/measuring accuracy |
|||
50V≤V≤450V |
0.1MΩ~1MΩ |
5% of reading + 3 count |
|
1MΩ~50MΩ |
5% of reading + 1 count |
||
51MΩ~2GΩ |
10% of reading + 1 count |
||
500V≤V≤1200V |
0.1MΩ~1MΩ |
5% of reading + 3 count |
|
1MΩ~500MΩ |
5% of reading + 1 count |
||
501MΩ~9.999GΩ |
10% of reading + 1 count |
||
10G~50GΩ |
20% of reading + 1 count¹ |
||
Test voltage |
Disy Range |
||
50V≤V≤100V |
000.1MΩ~10.00GΩ |
||
150V≤V≤450V |
000.1MΩ~20.00GΩ |
||
500V≤V≤1200V |
000.1MΩ~50.00GΩ |
||
Voltage regulation |
± (1% +5V) [Maximum rated load ->no load |
||
Accuracy of voltmeter |
±(1% of reading +5V) |
||
Short circuit current |
10mA max. |
||
Output impedance |
2kΩ |
||
Upper/lower limit decision function |
Yes |
||
Rise time control function |
Yes |
||
When the RAMP UP time comes, the ramp up time |
0.1~999.9S |
||
Fall time control function |
Yes |
||
In the RAMP DOWN time, the ramp down time |
0.0~999.9S |
||
Wait time |
0.0~999.9S |
||
TIMER (test time) |
0.3S~999.9S2 |
||
GND |
ON/OFF |
||
Note: When the grounding mode of the insulation resistance is enabled, execute the GND OFFSET action 1 When the grounding mode of the insulation resistance is ON, it can ensure a maximum of 30Gohm. |
|||
2. When the insulation resistance ground mode is turned on, the test time starts from 0.5 seconds. |
|||
Ground impedance test (applicable to GPT-12004) |
|
Output current range |
3.00A~32.00A |
Output current accuracy |
±(1% of setting+0.2A) when 3A≤I ≤8A |
±(1% of setting+0.05A) 8A |
|
输出Current resolution |
0.01A |
Test voltage |
Approximately max. 8VAC (open-circuit) |
Frequency |
50Hz/60Hz selectable |
电阻表测量范围 |
1mΩ ~ 650mΩ |
电阻表测量分辨率 |
0.1mΩ |
电阻表测量精度 |
±(1% of reading+2mΩ) |
电阻表Accuracy of judgment |
±(1% of setting+2mΩ) |
上下限判定功能 |
Yes |
TIMER (test time) |
0.3S~999.9S |
GND |
ON/OFF |
导通测试 |
||
输出电流 |
100mA(DC) |
|
电阻表测量范围 |
0.10Ω~70.00Ω |
|
电阻表测量分辨率 |
0.01Ω |
|
电阻表测量精度 |
±(10% of reading+2Ω) |
|
电阻表判定精度 |
±(10% of setting+2Ω) |
|
上下限判定功能 |
Yes |
|
TIMER (test time) |
0.3S~999.9S |
|
接口 |
||
REMOTE (远程端子) |
Yes |
|
SIGNAL IO |
Yes |
|
RS-232 |
Yes |
|
USB (Device) |
Yes (USB 2.0) |
|
Rear Output |
Yes |
|
USB (Host) for data output port |
Yes (USB 2.0) |
|
GPIB |
Yes (选配) |
|
