150VA test capacity
8 channel safety test (4 tests provided) : AC voltage resistance, DC voltage resistance, insulation impedance, conduction test
In accordance with IEC-61010-2-034 standard requirements
480×272 color TFT LCD
Provide U disk fast import/export test Settings parameters
Statistics (counter) function
Insulation resistance measures up to 10GΩ
Open/Short circuit check (OSC)
ARC detection function (ARC)
Multiple languages: Simple/traditional Chinese, English
Interface: RS-232C USB Host/Device
| Specifications | ||
| Ac withstand voltage | Output voltage range | 0.050kV ～ 5.000kV |
| Output voltage resolution | 1V | |
| Output voltage accuracy | ±(1percent Set value 5V) [no load] | |
| Maximum rated load | 150VA(5kV/30mA) | |
| Maximum rated current | 30mA;0.001mA～10mA(0.05kV~0.5kV);0.001mA～30mA(0.5kV~5kV) | |
| Output voltage waveform | Sine wave | |
| Voltage regulation rate | ±（1%+5V）[Maximum rated load->空载] | |
| Output voltage frequency | 50Hz or 60Hz -- is optional | |
| Accuracy of voltmeter | ±(1percent read value 5V) | |
| Current measurement range | 0.001mA～30.00mA | |
| Optimal current resolution | 1μA（0.001mA～9.999mA）;10μA（10.00mA～30.00mA） | |
| Current measurement accuracy | ±(1.5percent read value 30μA) | |
| Current compensation | 80μA Max | |
| ARC detection | Yes | |
| It's a Ramp Time | 0.1s～999.9s | |
| It's going to FALL Time | OFF～999.9s | |
| WAIT Time -- Wait time -- Wait time | OFF～999.9s | |
| TIMER(test time) | CONT,0.3s～999.9s | |
| TIMER精度 | ±（100ppm+20ms) | |
| GND | ON/OFF | |
| Dc voltage resistance | Output voltage range | 0.050kV ～ 6.000kV |
| Output voltage resolution | 1V | |
| Output voltage accuracy | ±(1percent Set value 5V) [no load] | |
| Maximum rated load | 50W(5kV/10mA) | |
| Maximum rated current | 10mA;0.001mA～2mA(0.05kV≤V≤0.5kV);0.001mA～10mA(0.5kV＜V≤6kV） | |
| Accuracy of voltmeter | ±(1percent read value 5V) | |
| Voltage regulation rate | ±（1%+5V）[Maximum rated load->空载] | |
| Current measurement range | 0.001mA～10.00mA | |
| Optimal current resolution | 0.1μA（0.1μA～999.9μA）;1μA（1μA～9.999mA）;10μA（10.00mA) | |
| Current measurement accuracy | ±(1 read value 1μA) when I read value < 1mA; ± (1percent read value 10μA) When I read value ≥1mA | |
| Current compensation | 5μA is the maximum | |
| ARC detection | Yes | |
| It's a Ramp Time | 0.1s～999.9s | |
| It's going to FALL Time | OFF～999.9s | |
| WAIT Time -- Wait time -- Wait time | OFF～999.9s | |
| TIMER(test time) | CONT,0.3s～999.9s | |
| TIMER精度 | ±（100ppm+20ms) | |
| GND | ON/OFF | |
| Insulation resistance | Output voltage | 50V～1000V dc |
| Output voltage resolution | 1V | |
| Output voltage accuracy | ±(1percent Set value 5V) [no load] | |
| Resistance measurement | 0.1MΩ～10GΩ | |
| Test voltage | Measuring range/accuracy | |
| 50V≤V＜450V | 0.1MΩ ~ 1MΩ : ± (5percent read value 3percent full scale); 1M to 50MΩ : ± (5percent Read value 1percent full scale) | |
|
|
51MΩ ~ 2GΩ : ± (10percent read value 1percent full scale) | |
| 500V≤V≤1000V | 0.1MΩ ~ 1MΩ : ± (5percent read value 3percent full scale); 1 Mω to 500 mω : ± (5percent Read value 1percent full scale) | |
|
|
501MΩ ~ 10GΩ : ± (10percent read value 1percent full scale) | |
| Voltage regulation | ±（1%+5V）[Maximum rated load->空载] | |
| Accuracy of voltmeter | ±(1percent read value 5V) | |
| Short circuit current | 10mA Max | |
| Output impedance | 2kΩ | |
| It's a Ramp Time | 0.1s～999.9s | |
| It's going to FALL Time | OFF～999.9s | |
| WAIT Time -- Wait time -- Wait time | OFF～999.9s | |
| TIMER(test time) | 0.3s～999.9s | |
| TIMER精度 | ±（100ppm+20ms) | |
| GND | ON/OFF | |
| Conduction test | Output current | 100mA dc |
| Resistance measurement精度 | 1Ω±0.2Ω,ON/OFF | |
| Interface | Signal I/O | Standard configuration |
| RS-232C | Standard configuration | |
| USB(Device) | Standard configuration | |
| USB(Host) | Standard configuration（for parameter/LCD Hardcopy) | |

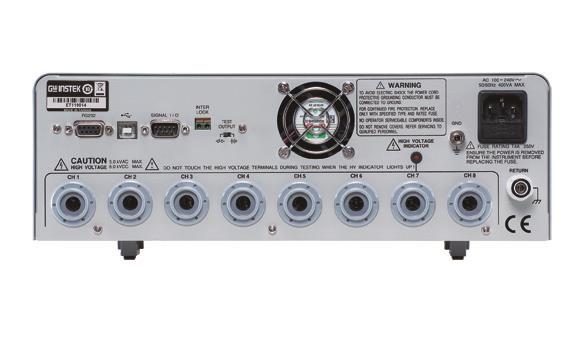

| Rear Output | 8 channel scan | |
| Show | 4.3 & quot; Color LCD | |
| Power supply | AC 100V～240V±10%,50Hz/60Hz | |
| 尺寸&重量 | 320(W)×120(H)×435(D)mm | |
该Specifications适用于GPT-9500在+15°C至+35°C下至少通电30分钟 Specifications如有更改,恕不另行通知.
