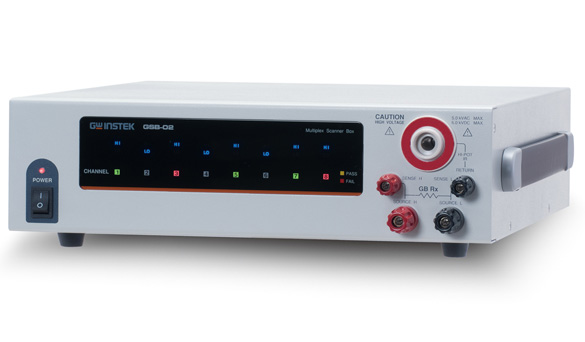

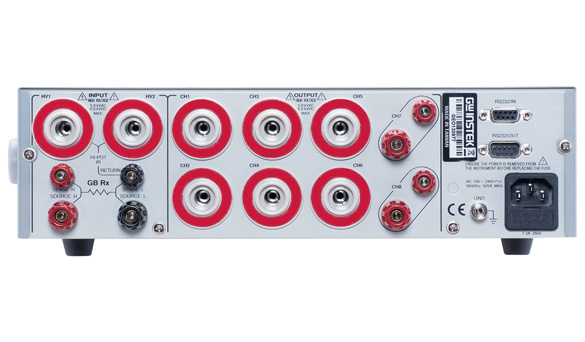

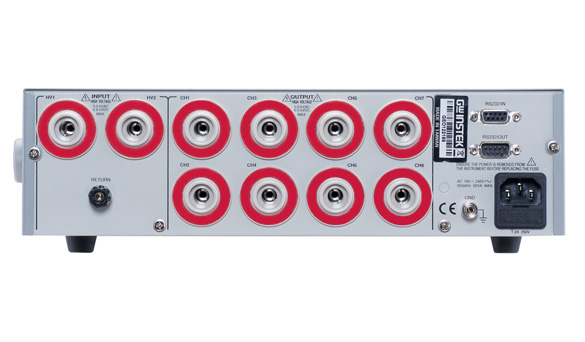

Models: GDB-01 (8CH high-voltage scanning box), GDB-02 (6CH high-voltage and 2CH grounding impedance scanning box)
Multichannel output for voltage resistance, insulation impedance, ground impedance test
High brightness LED, disy channel, status
前&后输入Interface设计,适合GPT-9800/9900/9900A系列
One GPT-9800/9900/9900A series is connected to a maximum of 4 scan boxes (32CH)
Rapid selection
| Model number | High voltage rating | High current rating | H.V Number of channels | G.B Number of channels |
| GSB-01 | 5kVAC/6kVac | —————— | 8CH | —————— |
| GSB-02 | 5kVAC/6kVac | 40Vac | 6CH | 2CH |
| Detailed specifications | ||
|
|
GSB-01 | GSB-02 |
| High voltage rating | ||
|
|
5kVac/6kVdc | 5kVac/6kVdc |
| High current rating | ||
|
|
---- | 40Aac |
| H.V. Number of channels | ||
|
|
8CH | 6CH |
| G.B Number of channels | ||
|
|
---- | 2CH |
| Maximum number of scan boxes | ||
|
|
4 (32CH Max) | |
| Interface | ||
|
|
RS-232C, connected tester or scan box | |
| Power supply | ||
|
|
AC 100~240V±10%,50/60Hz | |
| 尺寸&重量 | ||
|
|
GSB-01:330 (W)×101 (H)×399 (D)毫米;GSB-02:330 (W)×101 (H)×413 (D)毫米,约5.5公斤) | |
