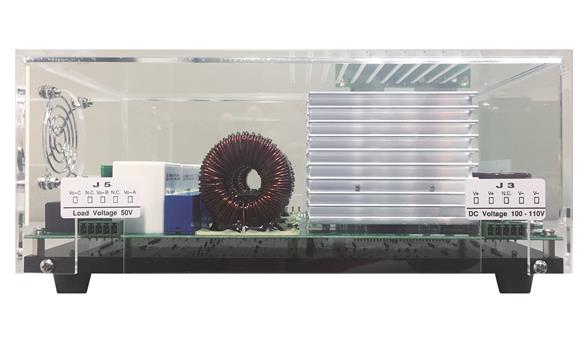

The realization of three-phase inverter experiments, from open loop to closed loop, and then to the grid, and power filter experiments

硬件电路上的测试点,提供真实波行呈现,可与原理、仿真相互验正

Provides power electronics analysis, design, simulation and implementation verification

Can be connected with PC terminal, real-time observation DSP internal waveform, and real-time control of internal parameters

Can make the basic students of DSP code writing can easily complete the program writing, quickly enter the digital control jaw domain

Provide complete experimental teaching materials, teaching AIDS each circuit diagram file,DSP hardware nning method, setting and program burning method, detailed experimental circuit principle and design
