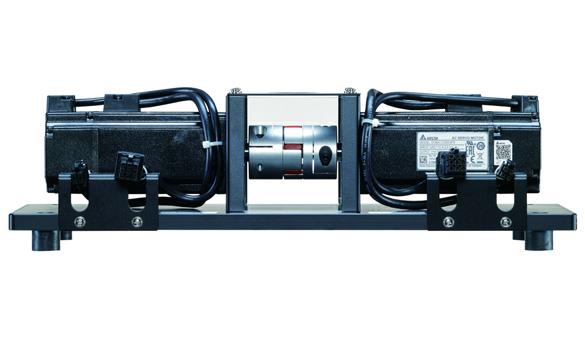

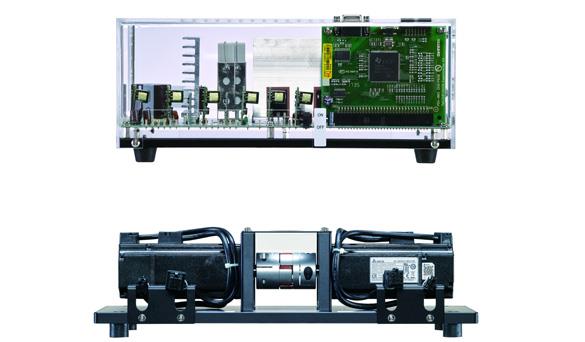

To realize the motor driving experiments, from vector control to starting position detection, and then to on-line parameter measurement, and no position sensor three kinds of control methods and other experiments

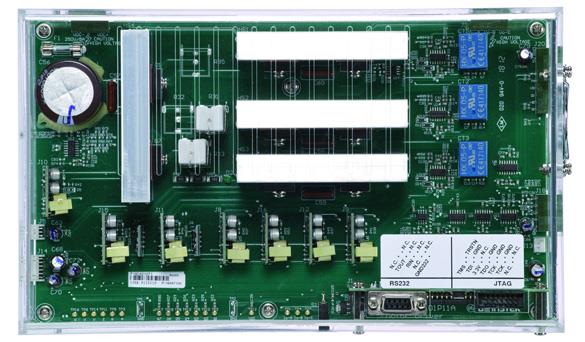

The test point on the hardware circuit provides the real wave line presentation, which can be mutually verified with the principle and simulation

Provides power electronics analysis, design, simulation and implementation verification

可与PC端联机,实时观测DSP内部波形、并可实时控制内部参数

Can make the basic students of DSP code writing can easily complete the program writing, quickly enter the digital control jaw domain

Provide complete experimental teaching materials, teaching AIDS each circuit diagram file,DSP hardware nning method, setting and program burning method, detailed experimental circuit principle and design
