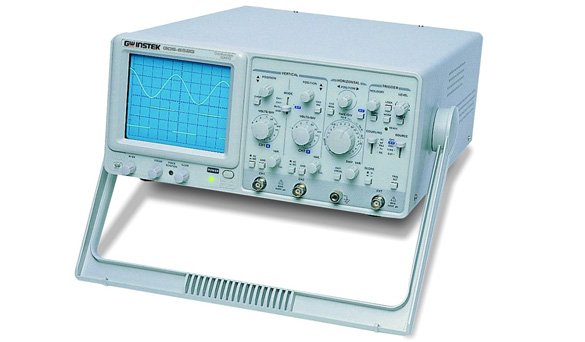

50 MHz bandwidth, dual channel
Delayed scanning
The built-in delay line allows easy observation of the wavefront
TV split synchronization
Z axis modulation function
ALT synchronization trigger
Hold off function
Trigger the position lock function
CH1 signal output
| Specifications | ||
| CRT | ||
| Type | 6-inch square disy with calibration line; Marking position 0percent, 10percent, 90percent, 100percent; 8 x 10 cells (1 cell = 1 cm) | |
| Phosphorescent material | P31 | |
| Accelerator voltage | 12 kV | |
| Scale lighting | Continuously adjustable; Input impedance: about 5kΩ | |
| Z轴输入 | Sensitivity: above 3Vp-p; Bandwidth: DC ~ 5MHz | |
| Vertical system | ||
| Sensitivity | 5mV ~ 5V/DIV+3%, 1mV ~ 2mV/DIV+5% | |
| Bandwidth | DC ~ 50MHz频率5mV ~ 5V/DIV;DC ~ 15MHz频率1mV ~ 2mV/DIV—— | |
| Rise time | 7nS (23.3nS at 1mV ~ 2mV/DIV) | |
| Signal delay | Observable leading edge | |
| Input impedance | About 1MΩ | |
| Input coupling | AC, DC, GND;CH1, CH2, DUAL, CH2 INV, ADD. | |
| Vertical mode | (DUAL automatically switches ALT and CHOP) | |
| Horizontal system | ||
| A (main) scan time | 0.1μS ~ 0.5S/DIV+3%,100nS ~ 50mS/DIV+5% (x 10MAG),10nS ~ 50nS/DIV+8% (x 10MAG) | |
| B (delay) Scan time | 0.1μS ~ 0.5mS/DIV+3%,100nS ~ 50μS/DIV+5% (x 10MAG),10nS ~ 50nS/DIV+8% (x 10MAG) | |
| Delay time | 1μS ~ 5mS,+5% | |
| Delay jitter | 1:10,000 or better | |
| Trigger | ||
| Trigger模式 | AUTO, NORM, SINGLE | |
| Trigger源 | CH1, CH2, ALT, LINE, EXT | |
| Trigger耦合 | AC, DC, HR,TV | |
| Trigger斜率 | “;“;或“产生绯闻 | |
| X-Y operation | ||
| Sensitivity | 5mV ~ 5V/DIV+4% | |
| X 轴Bandwidth | DC ~ 2MHz | |
| Phase difference | 3o or less from DC ~ 100kHz | |
| Signal output | ||
| TriggerSignal output | Voltage: about 50mV/DIV into 50Ω | |
| Correction terminal output | 1kHz square wave, 2Vpp 2percent | |
| Use the power supply | ||
|
|
Ac 100V/120V/220V/230V 10percent, 50/60Hz | |
| Attachment | ||
|
|
Power cable x 1; Operation manual x 1; Measuring stick (10:1/1:1) x 2 | |
| Size and weight | ||
|
|
310(W) x 150(H) x 455(L) mm; About 8.2 kg | |
