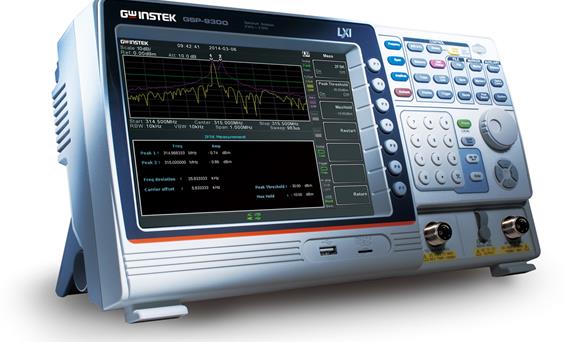

Frequency range: 9 kHz to 3 GHz
High frequency stability: 0.025ppm
3dB resolution Bandwidth range: 1Hz to 1MHz
6dB EMI resolution bandwidth: 200Hz, 9kHz, 120kHz, 1MHz
The scanning time can reach 307 usec
Phase noise: -88dBc/Hz@1GHz, 10kHz offset
Built-in measurement function: 2FSK Analysis, AM/FM/ASK/FSK demodulation and Analysis, EMC Prediction Mode, P1dB point, harmonic wave, N-dB bandwidth, Channel Power, Occupancy Bandwidth, Adjacent channel Power Leakage, Spectrum Leakage, third-order Intercept, CNR, CTB, CSO, Marked Noise, Frequency Counter, Time domain power, gated scan
The built-in spectrum diagram and extension spectrum diagram disy mode
886MHz IF output for user extension applications
Interface: LAN,USB,RS-232 and GPIB(optional)
Built - in preamplifier, 50dB attenuator and sequence function
Optional 6.2GHz power sensor, tracking generator, battery pack
| Specifications | |||
Frequency |
|||
| Frequency | The scope of | 9 kHz ~ 3.0 GHz | |
|
|
Resolution | 1 Hz | |
| Frequency参考源 | Accuracy | ±(last adjustment period × aging rate) overtemperature stability Stability of the voltage supply | |
|
|
The rate of aging | ±2 ppm max. | One year after the adjustment |
|
|
过温度的Frequency稳定度 | ±0.025 ppm | 0 ~ 50 °C |
|
|
Stability of voltage supply | ±0.02 ppm | |
| Frequency读值精度 | Start, stop, center, mark | ±(标记Frequency显示值×Frequency参考精度+10%×Resolution带宽+FrequencyResolution1) | |
|
|
Scan points | 601 at most, 6 at least | |
| 标记Frequency计数器 | Resolution | 1 Hz、10 Hz、100 Hz、1 kHz | |
|
|
Accuracy | ±(标记Frequency显示值×Frequency参考精度+计频器Resolution) | RBW/Span≥0.02; Mkr level to DNL>30 dB |
| Frequency distance | The scope of | 0 Hz (zero span), 100 Hz ~ 3 GHz | |
|
|
Resolution | 1 Hz |
|
|
|
Accuracy | ±FrequencyResolution1 | RBW: Automatic |
| Phase noise | Offset from carrier signal | Fc =1 GHz; RBW = 1 kHz, VBW = 10 Hz; Average≥40 | |
|
|
10 kHz | <-1088 dBc/Hz | The typical value is 2 |
|
|
100 kHz | <-1095 dBc/Hz | Typical value |
|
|
1 MHz | <-10113 dBc/Hz | Typical value |
| Resolution带宽(RBW)滤波器 | Filter bandwidth | 1Hz ~ 1MHz,1-3-10 step | -3dB bandwidth |
|
|
|
200 Hz、9 kHz、120 kHz、1MHz | -6dB bandwidth |
|
|
Accuracy | ± 8%, RBW = 1 MHz | Mark the value 3 |
|
|
|
± 5%, RBW <1 MHz | Mark the value |
|
|
Shape coefficient | <4.5:1 | Typical bandwidth ratio: -60dB:-3 db |
| 视频带宽(VBW)滤波器 | Filter bandwidth | 1 Hz to 1 MHz, 1-3-10 step | -3dB bandwidth |
| *1.FrequencyResolution=Frequency distance/(Scan points-1) | |||
| *2.本数据表中的典型Specifications指的是在20~30℃下,80%以上的测试机器中的95%机器水平,这些并不在保证Specifications内 | |||
| *3.Mark the value代表是预期的性能,这些并不在保证Specifications内. | |||
Amplitude |
|||
| AmplitudeThe scope of | 测量The scope of | 100 kHz ~ 1 MHz | From the disy average noise level (DANL) ~ 18dBm |
|
|
|
1 MHz ~ 10 MHz | From the disy average noise level (DANL) ~ 21dBm |
|
|
|
10 MHz ~ 3 GHz | The average noise level (DANL) from the disy is ~ 30dBm |
| Attenuator | 输入AttenuatorThe scope of | 0 to 50 dB,1 dB step | Automatic or manual setting |
| Maximum safe input threshold | Average continuous power | ≤+33 dBm | 输入Attenuator的设定≥10 dB |
|
|
Dc voltage | ± 50 V |
|
| 1dB gain compression | Total power input to the mixer | > 0 dBm | Typical value;fc≥50 MHz;Turn off the front amplifier |
|
|
Total power at the front amplifier end | > -22 dBm | Typical value;fc≥50 MHz;Turn on the front amplifier |
|
|
|
The power level of the mixer (dBm) = input power (dBm)- input attenuation (dB) | |
| 显示平均噪声准位(DANL)4 | Turn off the front amplifier | RF衰减量0 dB;RF input端连接50Ω负载; RBW 10 Hz;VBW 10 Hz;Frequency distance500Hz ;参考准位-60 dBm;轨迹平均≥40次 | |
|
|
9 kHz ~ 100 kHz | <-1093 dBm |
|
|
|
100 kHz ~ 1 MHz | <-1090 dBm - 3×(f/100 kHz) dB | Mark the value |
|
|
1 MHz ~ 10 MHz | <-10122 dBm |
|
|
|
10 MHz ~ 3 GHz | <-10122 dBm |
|
|
|
Turn on the front amplifier | RF衰减量0 dB;RF input端连接50Ω负载; RBW 10 Hz;VBW 10 Hz;Frequency distance500Hz ;参考准位-60 dBm;轨迹平均≥40次 | |
|
|
100 kHz ~ 1 MHz | <-10108 dBm - 3×(f/100 kHz) dB |
|
|
|
1 MHz ~ 10 MHz | <-10142 dBm | Mark the value |
|
|
10 MHz ~ 3 GHz | <-10142 dBm + 3×(f/1 GHz) dB |
|
|
|
*4.显示平均噪声准位Specifications不含Peripheral noise response的Specifications | ||
| 准位显示The scope of | Scale | Logarithm, linear |
|
|
|
Unit | dBm, dBmV, dBuV, V, W |
|
|
|
Mark the level read value | 0.01 dB | 对数Scale |
|
|
|
0.01 percent of reference level | 线性Scale |
|
|
Level disy mode | Trajectories, Topographic, Spectrogram | Single/split window |
|
|
Number of trajectories | 4 |
|
|
|
Geophone | Positive peak, negative peak, sampling, General and RMS(non-video) | Can be set under different trajectories |
|
|
Trajectory function | Clear/write; Maximum/minimum maintenance; View the trajectory; Blank; Average operation |
|
| Amplitude精度 | Absolute points | 中心Frequency160MHz, 10kHz RBW, 1kHz VBW,Frequency distance100kHz,对数Unit, 1dB/div,峰值侦测模式, 20~30℃,信号0dBm | |
|
|
Turn off the front amplifier | ± 0.3 dB | Reference level is 0dBm, attenuation is 10dB |
|
|
Turn on the front amplifier | ± 0.4 dB | The reference level is -30dbm and the attenuation is 0dB |
| Frequency响应 | Turn off the front amplifier | 衰减量10 dB,参考Frequency：160 MHz,20~30℃ | |
|
|
100 kHz ~ 2.0 GHz | ± 0.5 dB | |
|
|
2.0GHz ~ 3.0 GHz | ± 0.7 dB | |
|
|
Turn on the front amplifier | 衰减量0 dB,参考Frequency：160 MHz,20~30℃ | |
|
|
1 MHz ~ 2.0 GHz | ± 0.6 dB | |
|
|
2.0GHz ~ 3.0 GHz | ± 0.8 dB | |
| Input attenuation switching uncertainty | Attenuator设定 | 0 to 50 dB,1 dB step | |
|
|
Uncertainty | ± 0.15 dB | Reference point: 160MHz, 10dB attenuation |
| Resolution带宽滤波器SwitchUncertainty | 1 Hz ~ 1 MHz | ± 0.25 dB | Reference point: 10kHz RBW |
| 准位测量Uncertainty | 整体Amplitude准确度 | ± 1.5 dB | 20~30℃,Frequency>1MHz,信号输入0至-50dBm,参考准位0 ~ -50dBm |
|
|
|
Input attenuation 10dB, RBW 1kHz, VBW 1kHz, signal correction, the former amplifier off | |
|
|
± 0.5 dB | Typical value | |
| Peripheral noise response | Second harmonic distortion | Turn off the front amplifier;信号输入位准：-30 dBm, 0dB衰减量 | |
|
|
|
+35 dBm | Typical value; 10 MHz |
|
|
|
+60 dBm | Typical value; 775 MHz≤fc <1.5 GHz |
|
|
三阶交互调变 | Turn off the front amplifier;信号输入位准：-30 dBm, 0dB衰减量 | |
|
|
|
> 1dBm | 300 MHz ~ 3 GHz |
|
|
Side-generated noise associated with the input | <-1060 dBc | Input signal -30 dBm, attenuation is 0 dB, 20~30℃ |
|
|
残留响应(内在的) | <-1090 dBm | 输入端连接50Ω负载;RF衰减量为0 dB;Turn off the front amplifier |
Scan |
|||
| Scan时间 | The scope of | 310 us ~ 1000 s | Frequency distance>0Hz |
|
|
50 us ~ 1000 s | Frequency distance=0Hz,小时间Resolution=10us | |
| Scan模式 | Consecutive, single | ||
| Trigger source | Free capture; Image signal; External signal | ||
| Trigger slope | A positive or negative signal along | ||
Front amplifier |
|||
|
|
FrequencyThe scope of | 1 MHz ~ 3 GHz | Amplifiers are built in as standard |
| Gain | 18 dB | Mark the value | |

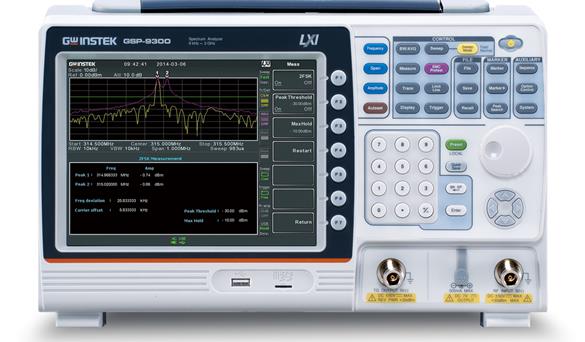

Front panel input/Output |
|||
| RF input | Connector type | N type mother | |
|
|
Impedance value | 50Ω,Mark the value | |
|
|
VSWR | <1.6 :1 | 300kHz ~ 3GHz, input attenuation ≥10 dB |
| External power supply | Connector type | SMB public seat | |
|
|
Voltage/电流 | DC +7V, 500mA Max. | With short circuit protection |
| USB Host | Connector type | Type A connector | |
|
|
Communication protocol | Version 2.0 | Support full speed/high speed/low speed |
| MicroSD slot | Communication protocol | SD Version 1.1 | |
|
|
Support cards | MicroSD, MicroSDHC | Max. 32GB |

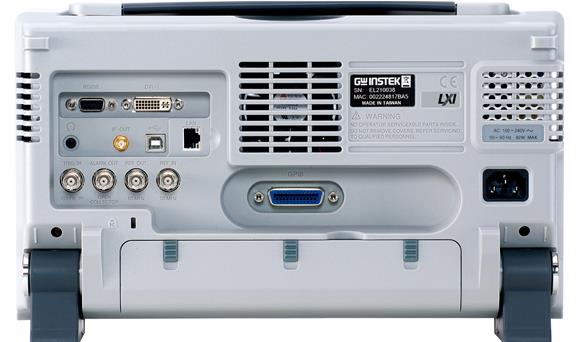

Rear panel input/output |
|||
| Reference output | Connector type | BNC mother | Mark the value |
|
|
输出Frequency | 10 MHz | |
|
|
输出Amplitude | 3.3V CMOS | |
|
|
Output impedance | 50Ω | |
| Reference input | Connector type | BNC mother | |
|
|
输入参考Frequency | 10 MHz | |
|
|
输入Amplitude | -5 dBm ~ +10 dBm | |
|
|
Frequency锁定The scope of | 在±5ppm的输入参考Frequency至内 | |
| Alarm output | Connector type | BNC mother | Open collector control |
| 触发输入/门闸Scan输入 | Connector type | BNC mother | |
|
|
输入Amplitude | 3.3V CMOS | |
|
|
Switch | 自动Switch | |
| LAN (TCP/IP) interface | Connector type | RJ-45 | |
|
|
Standard | 10Base-T; 100Base-Tx; Auto-MDIX | |
| USB Device | Connector type | Type B joint | Only suitable for remote control, support USB TMC |
|
|
Communication protocol | Version 2.0 | Support full speed/high speed |
| Intermediate frequency output | Connector type | SMA mother |
|
|
|
Impedance | 50 ohms | Mark the value |
|
|
中频Frequency | 886 MHz | Mark the value |
|
|
Output level | -25 dBm | 10dB衰减量, RF input：0dBm@1GHz |
| Headphone output | Connector type | 3.5mm stereo slot with wired mono operation | |
| Screen output | Connector type | DVI-I connector (integrated analog and digital), single link | 使用转换器可兼容于VGA或HDMIStandard |
| RS-232 interface | Connector type | D-sub 9-pin base | Tx,Rx,RTS,CTS |
| GPIB Interface (Optional) | Connector type | IEEE-488 bus connector | |
| AC power input | Power supply | AC 100 V~ 240 V, 50 / 60 Hz | Automatic gear selection |
| Battery module(选配) | Battery module | 6 cells, Rechargeable Lithium Battery, 3S2P | In accordance with UN38.3 specification |
|
|
Voltage | Dc 10.8V | |
|
|
Capacity | 5200 mAh / 56Wh | |
一般Specifications |
|||
|
|
内部数据储存量 | Built in 16MB | |
| Power consumption | <65 W | ||
| 温度The scope of | +5 °C ~ +45 °C | 操作The scope of | |
| -20 °C ~ + 70 °C | 储存The scope of | ||
| The weight of | 4.5 kg (9.9 lb) | All options are included | |
| (基本+信号追踪器+GPIB接口+Battery module) | |||
| Size | 210 x 350 x 100 (mm) | In general terms | |
| 8.3 x 13.8 x 3.9 (in) | |||
Tracking generator (optional)5 |
|||
|
|
输出FrequencyThe scope of | 100 kHz to 3 GHz | |
| 输出功率位准The scope of | -50 dBm至0 dBm,以0.5 dB为Unit进行调整 | ||
| Absolute accuracy | ± 0.5 dB | Reference point: 160MHz, -10dBm, 10dB attenuation, 20 to 30 degrees C | |
| Output flatness | Reference point 160MHz, -10dBm | ||
| 100 kHz to 2 GHz | ± 1.5 dB | ||
| 2 GHz to 3 GHz | ± 2.0 dB | ||
| 输出位准Switch不准确度 | ± 0.8 dB | Reference point -- 10dBm | |
| Harmonics | <-1030 dBc | Typical value,Output level-10dBm | |
| 反向Voltage | Max. 30dBm | ||
| Connector type | N type mother | ||
| Impedance | 50 ohms | Mark the value | |
| 输出VSRW | <1.6:1 | 300 kHz到3 GHz,输入Attenuator：≥12 dB | |
| 5. When the trace generator is started, the minimum analytic bandwidth filter is 10kHz | |||
RF power sensor (optional) |
|||
|
|
Type | Average power sensing | Model: WS-06 |
| Connecting interface | Connect to the GSP-9300 front panel via USB cable | ||
| 输入VSWR | 1.1: 1 | Typical value | |
| 1.3: 1 | The maximum value | ||
| 输入FrequencyThe scope of | 1 to 6200 MHz | Reference point -- 10dBm | |
| 功率感测The scope of | -32 to +20 dBm | Typical value,Output level-10dBm | |
| Maximum input damaged power | ≦ 27 dBm |
|
|
| 功率量测不确定性@25度C | 30 dBm to +5 dBm: |
|
|
| 1 MHz to 3GHz: ±0.10 dBTypical value | ±0.30 dBThe maximum value | ||
| 3 GHz to 6 GHz: ±0.15 dBTypical value | ±0.30 dBThe maximum value | ||
| +5 dBm to +12 dBm: |
|
||
| 1 MHz to 3GHz: ±0.15 dBTypical value | ±0.30 dBThe maximum value | ||
| 3 GHz to 6 GHz: ±0.15 dBTypical value | ±0.30 dBThe maximum value | ||
| +12 dBm to +20 dBm: |
|
||
| 1 MHz to 3GHz: ±0.20 dBTypical value | ±0.40 dBThe maximum value | ||
| 3 GHz to 6 GHz: ±0.20 dBTypical value | ±0.40 dBThe maximum value | ||
| 功率量测不确定性@ 0到25度C | -30 dBm to +5 dBm: | ||
| 1 MHz to 3GHz: ±0.25 dBTypical value | |||
| 3 GHz to 6 GHz: ±0.25 dBTypical value | |||
| +5 dBm to +12 dBm: | |||
| 1 MHz to 3GHz: ±0.20 dBTypical value | |||
| 3 GHz to 6 GHz: ±0.20 dBTypical value | |||
| +12 dBm to +20 dBm: | |||
| 1 MHz to 3GHz: ±0.35 dBTypical value | |||
| 3 GHz to 6 GHz: ±0.30 dBTypical value | |||
| 线性度@ 25 °C | ±3 % |
|
|
| Measure the speed | 100 ms in low noise mode | Typical value | |
| 30 ms in fast mode | |||
