Low base noise (-117dBm@1GHz, 3k RBW)
Automatic measurement function
Sequential programming measurement function
ACPR, OCBW, Channel Power, N-dB and phase jitter measurement functions
Edit limit line for pass/fail measurement
10 groups of cursors (including △ cursors and peak function)
Split window to allow separate Settings
AC/DC/ Battery Multiple power supply modes
USB/RS-232C/GPIB(Optional) port
Direct VGA output
6.4" TFT 彩色 LCD, 解析度: 640x480
Lightweight size 330(W) x 170(H) x 340(D) mm
Extremely light weight of 6 kg (excluding accessories)
Optional signal tracking generator
Optional preamplifier
| Specifications | |
| Frequency | |
| Frequency范围 | 9kHz ~ 3GHz |
| The rate of aging | ±10ppm, 0~50°C, 5ppm/℃ |
| Bandwidth range | 2kHz to 3GHz in 1-2-5 sequential stepping, full spread frequency, zero spread frequency |
| Phase noise | -80 DBC/Hz@1GHz 20kHz offset Typical value |
| Frequency sweep time range | 50ms ~ 25.6s |
| Resolution bandwidth | |
| Resolution bandwidth范围 | 3kHz, 30kHz, 300kHz, 4MHz |
| Analytical bandwidth accuracy | 15% |
| 视频Bandwidth range | 10Hz to 1MHz 1-3 Step |
| The range of | |
| Measuring range | ‘-103dBm ~ +20dBm: 1MHz ~ 15MHz, Ref.Level @ -30dBm;-117dBm ~ +20dBm: 15MHz ~ 1GHz, Ref.Level ≧-110dBm;-114dBm ~ +20dBm: 1GHz ~ 3GHz, Ref.Level ≧-110dBm(Span = 50kHz, RBW = 3kHz) |
| Overload protection | Max. +30dBm, ±25VDC |
| Reference level range | -110dBm ~ +20dBm |
| Accuracy | ±1dB @100MHz |
| Frequency平坦度 | ±1dB |
| The range of线性度 | ±1dB over 70dB |
| Dynamic range | |
| Average background noise | <-10135±1dBm/Hz: 1MHz ~ 15MHz, Ref.Level @ -30dBm;<-10149dBm/Hz, typical -152dBm/Hz: 15MHz ~ 1GHz, Ref.Level ≧-110dBm;<-10146dBm/Hz, typical -149dBm/Hz: 1GHz ~ 3GHz, Ref.Level ≧-110dBm |
| Third order intermodulation distortion | <-1070dBc RF Input @-40dBm, Ref.Level @-30dBm |
| Cowave distortion | <-1060dBc RF Input <-1040dBm , Ref.Level @-30dBm |
| Non-coresonant pseudo - noise | <-1093dBm, 1MHz ~ 15MHz, Ref.Level @-30dBm;<-10107dBm ~ +20dBm: 15MHz ~ 1GHz, Ref.Level ≧-110dBm;<-10104dBm ~ +20dBm: 1GHz ~ 3GHz, Ref.Level ≧-110dBm(Span = 50kHz, RBW = 3kHz) |
| Overall | |
| The monitor | 640 x 480 high resolution TFT color LCD |
| Split window | Dynamic Windows: up, down or alternate (two simultaneous scanning Windows) |
| Cursor | 10 组峰值Cursor: 5 组△Cursor;功能: Delta, To Peak, To Minimum, Peak Track, Peak Table, Peak Sort |
| Trajectory detection | 3 track functions: peak, maximum hold, freeze, average, track math |
| Power measurement | ACPR, OCBW, channel power, N dB bandwidth and phase jitter |
| Automatic setting function | Automatically detects and disys |
| Trigger | Conditions: video, external (forward, 5V TTL external signal); Mode: Normal, single, continuous |
| Sequential programming measurement | Test user-defined program segments can be automatically executed without remote control software, 10 groups of sequential program segment Settings and each setting can have 10 program segments, variable delay and wait through the function to make automatic measurement easier, can be sequentially linked and nested different sequence Settings |
| Connector | |
| Rf input | N 型母头, 50Ω 标准;Rf input VSWR: <2:1, @0dBm 参考电平 |
| External reference | BNC female head |
| Clock input | 1M, 1.544M, 2.048M, 5M, 10M, 10.24M, 13M, 15.36M, 15.4M, 19.2MHz |
| 参考Clock input | BNC female head, 10MHz |
| Dc input | Jack: 5.5mm, 12V |
| Dc output (for GAP-801) | Type: SMB male header, with a maximum output of 9V/100mA. |

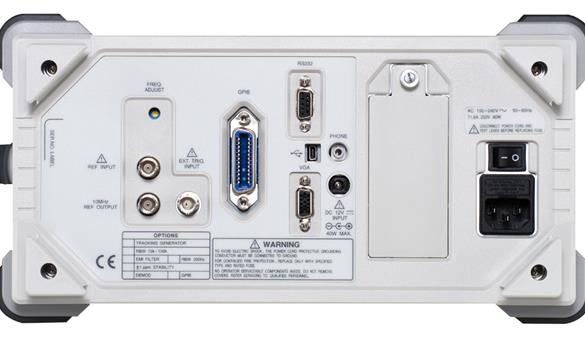

| Interface | |
| RS-232C | Sub-D 9 pin female head |
| USB | USB Host/Device Full Speed |
| VGA output | Front panel: Type A socket for inserting FLASH card |
| 选配: GPIB Interface | IEEE 488.2 Bus |
| Power supply |
|
|
|
AC 100 ~ 240V, 50/60Hz |
| Attachment | |
|
|
操作手册 x 1;Power supply线 x 1;USB 线(A型插头转小B型插头) x1 |
| Size and weight | |
|
|
330(宽)× 170(高)× 340(深)毫米 |
