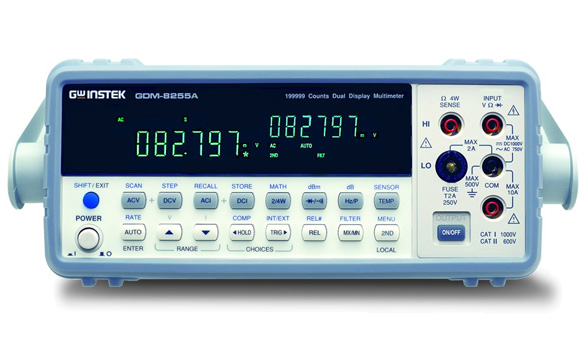

Full scale: 199,999 digits
Disy: VFD color dual disy screen
Accuracy: ±(0.012percent read value 5 bits)
True effective values: (AC, AC DC)
9 main test features and 10 advanced features
2/4-wire resistance measurement
Maximum voltage range 1000V and maximum current range 10A
Standard interface: RS-232C,USB,I/O
Freeware (DMM-VIEWER), LabVIEW driver
| Specifications | |
| Full scale | |
|
|
199,999 digits |
| Sampling speed | |
| Slow speed | 5 1/2 digits, 10 times per second |
| Medium speed | 4 1/2 bits, 30 times per second |
| Fast | 3 1/2 bits, 60 times per second |
| Dc voltage | |
| The scope of | 100mV, 1V, 10V, 100V, 1000V 5个 |
| Accuracy | ±(0.012percent read value 5 bits) |
| Input impedance | 10MΩ |
| True RMS of AC voltage | |
| The scope of | 100mV、1V、10V、100V、750V |
| Accuracy | 20Hz to 45Hz: ±(1percent read value 100 bits); 45Hz ~ 10kHz: ±(0.2percent read value 100 bits); 10kHz ~ 30kHz :±(1percent read value 100 bits); 30 KHZ to 100kHz: ±(3percent read value 200 bits) |
| Input impedance | 1.1MΩ is connected in parallel with about 100pF |
| Direct current | |
| The scope of | 10mA, 100mA, 1A, 10a4 |
| Accuracy | 10mA, 100mA: ±(0.05percent read value 15 bits); 1A, 10A: ±(0.2percent read value 5 bits) |
| True effective value of AC current | |
| The scope of | 10mA, 100mA, 1A, 10a4 |
| Accuracy | 10mA, 100 Ma: 20Hz to 50Hz: ±(1.5percent read value 100 bits)50Hz to 10kHz: ±(0.5percent read value 100 bits)10kHz to 20kHz: ±(2percent read value 200 bits)1A, 10A: 50Hz to 5kHz: ±(1percent read value 100 bits) |
| Resistance | |
| The scope of | 100Ω， 1kΩ， 10kΩ， 100kΩ， 1MΩ， 10MΩ， 100MΩ |
| 2线制Accuracy | 100Ω : ±(0.1percent read value 8 bits)(*)1kΩ ~ 1MΩ4: ±(0.08percent read value 5 bits)10MΩ : ±(0.3percent read value 5 bits)100MΩ : ±(3percent read value 8 bits) |
| 4线制Accuracy | 100Ω : ±(0.05percent read value 8 bits)(*)1kΩ ~ 1MΩ 4: ±(0.05percent read value 5 bits)10MΩ : ±(0.3percent read value 5 bits)100MΩ : ±(3percent read value 8 bits) |
| Diode test | |
|
|
Open circuit voltage 2.0V; Test current 0.5mA |
| Frequency | |
|
|
10Hz~800kHz |
| Short circuit buzzer test | |
|
|
1 ~ 1000Ω |
| Temperature | |
|
|
0°c ~ 300°c: j, k, t |
| Other functions | |
|
|
Automatic/manual shift, mathematical operation: MX B/ percent / 1/X; Maximum, minimum, dBm, dB, reference value, keep, compare, store, call |
| Show | |
|
|
VFD彩色双Show屏幕 |

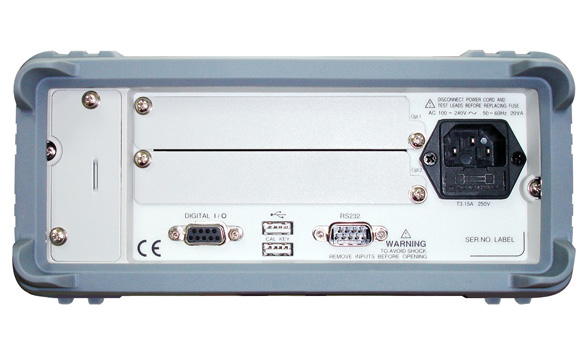

| Interface | |
|
|
Digital I/O, USB Device, RS-232C |
| Power supply | |
|
|
AC 100V-240V ±10%, 50/60Hz |
| Optional | |
|
|
GDM-SC1: Multi-channel (16 2) scanning card (two scanning cards can be installed at the same time) |
| 尺寸&重量 | |
|
|
265(宽)× 107(高)× 350(深)毫米 |
