50,000 digit disy
Measuring functions: AC/DC voltage, AC/DC current, ohm, frequency, capacitance, short circuit buzzer test, diode test, maximum/minimum, relative value, measured value disy hold,dBm
Dual disy: Simultaneously measure and disy AC voltage and frequency or AC and DC voltage and dBm
Manual or automatic shift is optional
Dc voltage accuracy up to 0.03percent
1000V high voltage measurement
Ac or AC plus DC true RMS measurement
| Specifications | |
| Dc voltage | |
| Gear position | 500mV、5V、50V、500V、1000V 5个规格 |
| Accuracy | (0.03percent read value 4 digits) |
| Input impedance | 10MΩ |
| Ac voltage true RMS (AC or AC plus DC true RMS) | |
| Gear position | 500mV、5V、50V、500V、1000V 5个规格 |
| Accuracy | 500 MV to 50V3 20Hz to 45Hz: (1percent read value 15 bits); 45Hz to 2kHz: (0.5percent read value 15 bits); 2kHz ~ 10kHz: (1percent read value 15 bits); 10kHz ~ 20kHz: (2percent read value 30 bits); 20 KHZ to 50 KHZ: (5percent read value 30 bits)500V,1000V 2 gear 20Hz to 45Hz: (1percent read value 15 bits); 45Hz to 1kHz: (0.5percent read value 15 bits) |
| Input impedance | 10MΩ |
| Direct current | |
| Gear position | 500μA, 5mA, 50mA, 500mA, 2A, 20A6 |
| Accuracy | 500μA ~ 500mA 4: (0.2percent read value 2 bits); Files 2A to 20A2: (0.3percent read value 2 bits) |
| True RMS of AC current (AC or AC plus DC true RMS) | |
| Gear position | 500μA, 5mA, 50mA, 500mA, 2A, 20A 6℃—— |
| Accuracy | 500μA to 20A 4 grades 20Hz to 45Hz: (1percent read value of 15 bits)45Hz to 2kHz: (0.5percent read value of 15 bits); 2kHz ~ 10kHz: (1percent read value 15 bits); 10kHz to 20 KHZ: (2percent read value 15 bits) |
| Resistance | |
| Gear position | 500Ω， 5kΩ， 50kΩ， 500kΩ， 5MΩ， 20MΩ 6 |
| Accuracy | 500Ω : (0.1percent read value 4 bits); 5kΩ~ 500kΩ 3: (0.1percent read value 2 bits); 5MΩ : (0.2percent read value 2 bits); 20MΩ : (0.3percent read value 2 bits) |
| Diode test | Can measure the diode forward voltage, maximum forward voltage 1.5V, open voltage 2.8V. |
| Capacitance | |
| Gear position | 5nF、50nF、500nF、5μ f、50μF 5μ f |
| Accuracy | (2percent read value 4 digits) |
| Frequency | |
| Sensitivity | 5mV:>120mV (10Hz ~ 50kHz)>200mV (50kHz ~ 150kHz);5V:> 1.2V (10Hz ~ 200kHz); 50V:> 1.2V (10Hz ~ 200kHz); 500V:>12V (20Hz ~ 1kHz) |
| Short circuit buzzer test | |
|
|
<5Ω |
| NMRR | |
|
|
> 60dB |
| CMRR | |
|
|
> 90dB |
| Mode of operation | |
|
|
Automatic shift/manual shift |
| Other functions | |
|
|
Maximum, minimum, dBm (63.8dBm ~ -97.7dBm), relative value, read value lock |
| Show | |
|
|
双Show 0.4", 0.5" LED |

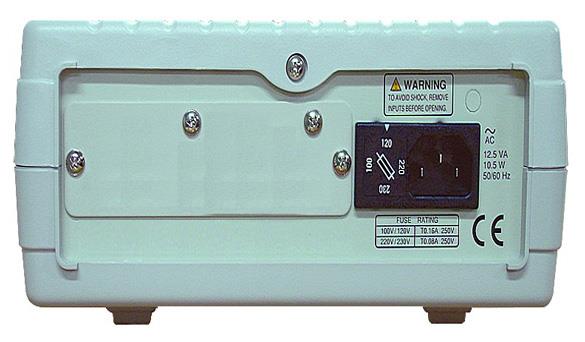

| Use the power supply | |
|
|
Ac 115V/230V 10percent, 50/60Hz |
| 尺寸&重量 | |
|
|
251(W) x 91(H) x 291(L) mm, about 1.86 kg |
