Features:
The use of dehumidification ability of strong Pelt module
Using capacitive humidity sensor, can also carry out high precision detection in low temperature area
The use of energy saving design, near the set humidity and low humidity area, automatically reduce power consumption
Specifications:

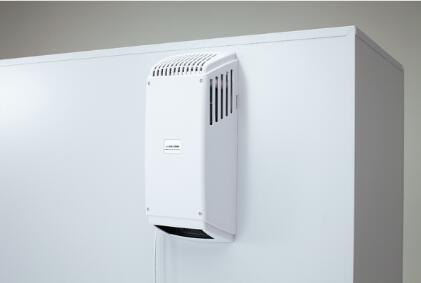

Dehumidification mode: cooling dehumidification through Peltier module
Humidity control range: N-BG/about 15percentRH ~ indoor humidity, N-JB-S · N-JB-W/about 20percentRH ~ indoor humidity (after 12h, when there is no load in the box, according to the use environment)
Humidity setting range: 5 ~ 50percentRH
Thawing mode: through the DC fan air supply to thaw

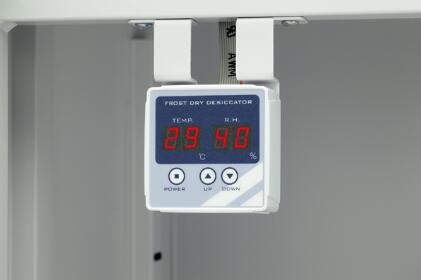

Humidity disy accuracy: ±4percent (20 ~ 80percentRH),±6percent (left outside the range) ※ Ambient temperature 25℃
Humidity control mode: ON/OFF control through the relative humidity digital input
Humidity sensor: capacitance humidity sensor
Temperature sensor: band gap temperature sensor
Running noise: usually/about 51dB, energy saving/about 41dB
Power supply: AC10
Power supply Note :
The commodity power supply is AC100V, please be sure to use with 100V transformer
Relevant transformer products, please refer to Chinese 2019 No. 477 page /2017 No. 884 page or directly consult our company
【 Specification Sheet 】

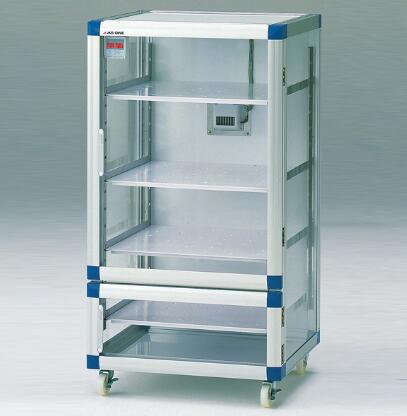

| Picture | The number is | Model number | Overall dimension (mm) | Shelf te quality | Sales
Packing |
RMB(including tax) | Beijing inventory | Shanghai inventory | Japanese inventories | Refer to the delivery date | Query NO. | Optional quantity |
|
1-7523-51 | N-BG-1PA | 574×611×1020 | Reinforced stic with rubber foot pads | One | 13,800.00 | 0 | 0 | 0 | Another query | **13 | - |
|
|
1-7523-61 | N-BG-1SA | 574×611×1020 | Stainless steel with rubber pads | One | 14,300.00 | 0 | 0 | 0 | Another query | **13 | - |
|
|
1-7523-52 | N-BG-KPA | 574×611×1085 | Reinforced stic tape roller | One | 14,100.00 | 0 | 0 | 0 | Another query | **13 | - |
|
|
1-7523-62 | N-BG-KSA | 574×611×1085 | Stainless steel with roller | One | 14,500.00 | 0 | 0 | 0 | Another query | **13 | - |
※ It will take about 18 days to send from Japan if Japan is in storage
Freight charge is extra
※ Catalogue Publication page: Catalogue of Experimental Instruments and consumables 2019 No. 210
※ Catalogue Publication page: Azovang Experimental Instruments and consumables Catalogue 2017 No. 502
