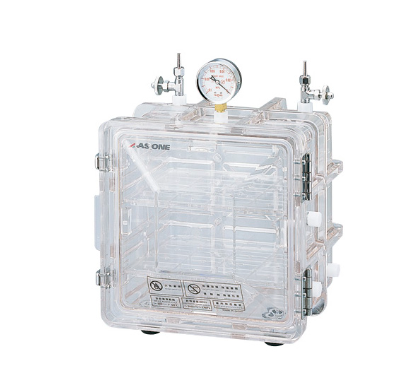

Features:
Polycarbonate integral molding properties of tough vacuum moisture-proof box.
The sealing part between the door and the device uses silicone seals with good sealing performance, without the use of grease.
Vacuum gauge and valve can be installed on the device above and on the right side of any surface

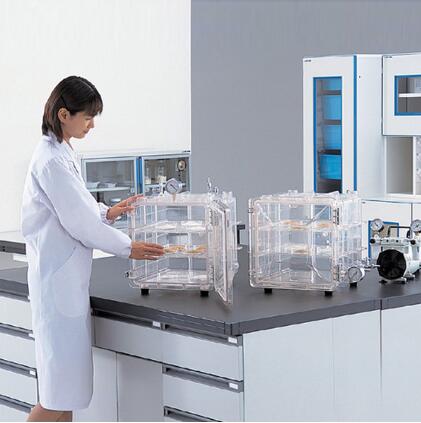

Two moisture-proof boxes can be stacked together (MVD-300N).
Specifications:
Material: PC(polycarbon resin)
Shelf layer: MGD-300N / 5 layers, MGD-100/4 layers
Allowed vacuum: 1Torr(about 133Pa)
Shelf size: 250×200mm(MDD-100)
Load resistance: body / 50kg, shelf / 5kg(MVD-300N)
Capacity: MGD-300N/Max. 32l, MGD-100/13L
Weight: MGD-300N / 13kg, MGD-100/7kg
Accessories :
Vacuum gauge ×1
Vacuum valve (φ8mm)×2
Shelf board ×2
■ Recommended vacuum pump :
C1-671-06 DA-20D(P.248)
CC-2940-01 GLD-N051(P.250)
【 Specification sheet 】
| Picture | Number | Model | Overall dimensions (mm) | Internal dimensions (mm) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-5811-11 | MVD-300N | 360×390×385 | 308×310×308 | 1 set | 9,000.00 | 0 | 0 | 32 |
|
**15 | - |
|
|
1-6158-01 | MVD-100 | 300×287×325 | 250×210×250 | 1 set | 6,800.00 | 0 | 1 | 50 |
|
**15 | - |
|
|
1-5811-01 | MVD-300 | 360×390×385 | 308×310×308 | 1 set | 代替品Number: 1-5811-11 | 0 | 0 | 0 | Another inquiry | **15 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
※ Catalog Published page: Azovan Experimental Instruments and consumables catalog 2019 No. 229
※ Catalog Publication page: Azovan Experimental Instruments and consumables catalog 2017 No. 515
