Specifications:
Main material: main part/transparent reinforced PMMA(acrylic) te thickness 5mm, top te/bottom te/reinforced PMMA(acrylic) te thickness 10mm, valve and vacuum meter installation part /PC(polycarbonate)
重量:1.4kg
Allowable vacuum: about 133Pa

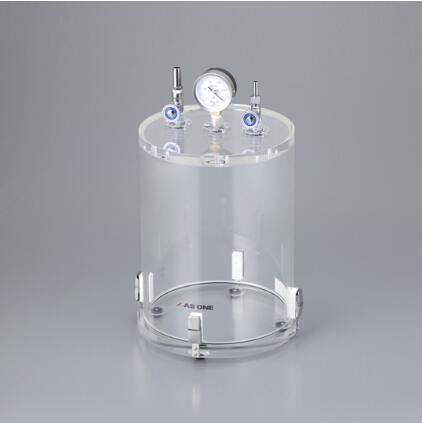

Model :VR type External size (mm):φ168×330※ Including vacuum meter
Internal size (mm):φ140×200
Accessories: Vacuum valve: Outer diameter φ14mm×1, vacuum meter ×1
Recommended vacuum pump :(1-4148-11) dry vacuum pump DTC-22,(1-671-06) dry vacuum pump DA-20D
【 Specification sheet 】
| Picture | Number | Model | External dimension (mm)※ | Inside dimensions (mm) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
1-073-01 | VR type | φ168×330※ Including vacuum gauge | φ140×200 | 1 | 3,510.00 | 0 | 0 | 25 |
|
**12 | - |
|
|
1-5848-01 | VZ type | φ268×450※ Including vacuum gauge | φ234×298 | 1 | 6,200.00 | 0 | 0 | 8 |
|
**12 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
