Features:

Use silicone pads with high sealing without grease.

Specifications:

Low material: ontology/transparent reinforced PMMA (acrylic) (thickness: 20 mm), valve, vacuum gauge installation department/PC (polycarbonate)
Allowed vacuum :1Torr(about 133Pa)
Socket in the box :AC100V15A3P×1 port ×1
Weight :8.6kg

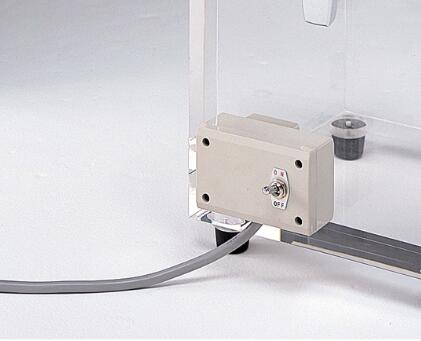

Power switch: toggle switch ×1
Power cord :3P plug with about 2.9mOA adapter

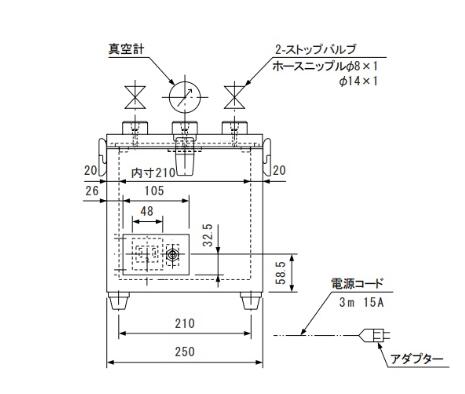

Outer size (mm):250×250×380※ Including valve and instrument ※ Except protruding part
Inner size (mm):210×210×210
With socket
Accessories: vacuum gauge ×1, vacuum valve: small/outer diameter φ8mm · large /φ14mm(each 1)
Recommended vacuum pump :(1-4148-11) dry vacuum pump DTC-22,(1-671-06) dry vacuum pump DA-20D

Specifications::
Accessories: vacuum gauge ×1, vacuum バルブ : small/outer diameter φ8mm · large / φ14mm(each 1)
推奨真空ポンプ:(1-4148-11)ドライ真空ポンプDTC-22,(1-671-06)ドライ真空ポンプDA-20D—

Power supply Note :
The commodity power supply is AC100V, please be sure to use with 100V transformer.
Related transformer products, please refer to Chinese 2019 No. 477 page /2017 No. 884 page or directly consult our company.

【 Specification sheet 】

Picture	Number	Model	Sales Packaging	RMB(tax included)	Beijing inventory	Shanghai inventory	Japanese inventory	Refer to delivery date	Query NO.	Purchase quantity
	1-5800-02	The VM-C type	1	8,410.00 7,149.00	0	0	June 16, 23 storage reservation 5	About 50 days	**13	-

※ It takes about 18 days to ship from Japan in case of storage in Japan
